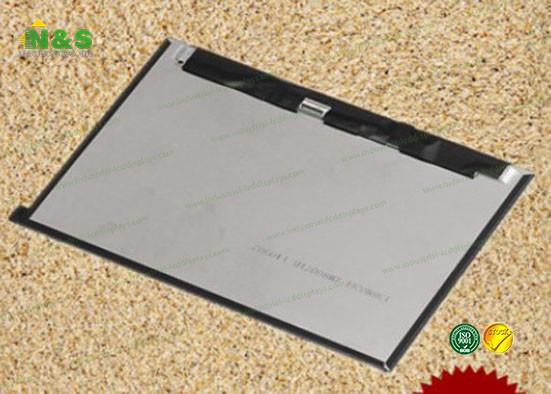

BOE BP080WX7-100 8.0 inch 172.224×107.64 mm Active Area 179.6×116.9×0.793 mm Outline
BOE BP080WX7-100 8.0 inch 172.224×107.64 mm Active Area 179.6×116.9×0.793 mm Outline
Specifications
Brand Name :
BOE
Model Number :
BP080WX7-100
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
8.0 inch
Resolution :
1280(RGB)×800 , WXGA
Display Mode :
HFFS, Normally Black, Transmissive
Surface :
Hard coating (3H)
Glass Depth :
0.25+0.25 mm
Contrast Ratio :
900:1 (Typ.)
Display Colors :
16.7M (6-bit + Hi-FRC) , CIE1931 55%
Response Time :
24 (Typ.)(Tr+Td)
Description

BOE BP080WX7-100 8.0 inch 172.224×107.64 mm Active Area 179.6×116.9×0.793 mm Outline

BOE BP080WX7-100 General Features

Panel Brand : BOE
Panel Model : BP080WX7-100
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 8.0 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : HFFS, Normally Black, Transmissive
Active Area : 172.224×107.64 mm
Outline : 179.6×116.9×0.793 mm
Surface : Hard coating (3H)
Glass Depth : 0.25+0.25 mm
Contrast Ratio : 900:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 55%
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : MIPI (4 data lanes) , 31 pins
Input Voltage : 3.3V (Typ.)

BOE BP080WX7-100 Mechanical Features

Panel Size : 8.0 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 188 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.04485×0.13455 mm (H×V)
Pixel Pitch : 0.13455×0.13455 mm (H×V)
Weight : 45g (Max.)
Surface : Hard coating (3H)
Active Area : 172.224×107.64 mm (H×V)
Outline Dimension : 179.6×116.9 mm (H×V)
Outline Depth : 0.793±0.1 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

BOE BP080WX7-100 Optical Features

Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
MV236FHB-N10 BOE 24.0" 1920×1080
HR270QH3-100 BOE 27.0" 2560×1440
BF045WVQ-401 BOE 4.5" 480×854
BV055HDE-N40 BOE 5.5" 720×1280
TV080WXB-NV0 BOE 8.0" 800×1280
AV080WVB-NW2 BOE 8.0" 800×480
BV050HDE-N47 BOE 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.
