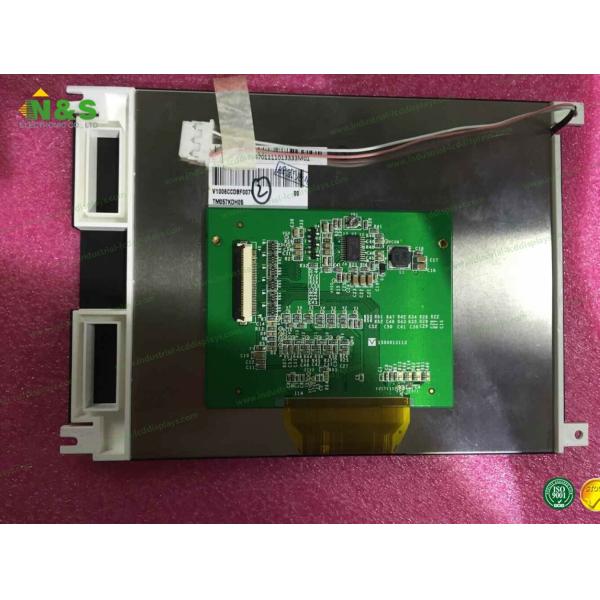

Parallel RGB 5.7 inch Tianma LCD Displays , color lcd monitor TM057KDH05
Parallel RGB 5.7 inch Tianma LCD Displays , color lcd monitor TM057KDH05
Parallel RGB 5.7 inch Tianma LCD Displays , color lcd monitor TM057KDH05
Parallel RGB 5.7 inch Tianma LCD Displays , color lcd monitor TM057KDH05
Specifications
Brand Name :
Tianma
Model Number :
TM057KDH05
Certification :
ISO9001
Place of Origin :
Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
200 Piece Per Day
Delivery Time :
2-3 workings for order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model NO :
TM057KDH05
Dot Pitch NO :
0.120×0.360 mm (H×V)
Working Temperature :
0 ~ 65 Degree
Storage Temperature :
-10 ~ 70 Degree
Visual Size :
167.2*126.4 mm
Brightness :
400 cd/m2 (Typ.)
Description

Parallel RGB 5.7 inch Tianma LCD Displays , color lcd monitor TM057KDH05

TIANMA TM057KDH05 General Features:

Display Mode : TN, Normally White, Transmissive
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.324; Wy:0.362
White Variation : 1.25/1.33 (Typ./Max.)(9 points)

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TM045YYSP02 Tianma 4.5" 480×854
TM016XYHP01 Tianma 1.6" 256×320
TM050JYSP01 Tianma 5.0" 720×1280
TL055VGXP01 Tianma 5.5" 1080×1920
TM045YYHP08 Tianma 4.5" 480×854
TL050JGXP01 Tianma 5.0" 720×1280
TM050JYHP05 Tianma 5.0" 720×1280

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Product Descriptions:

Panel Size :5.7 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.120×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Surface : Antiglare, Hard coating (3H)
Active Area : 115.2×86.4 mm (H×V)
Landscape or Portrait : Landscape type
Touch Panel : Without

Features For Tianma TM057KDH05 TFT LCD Module:

• 15000 Working Hours.

• CCFL Lamp Type.

• NEMA 4/4X/12 front bezel

• ISO9001 Compliant

• 9.0W (Typ.) Power

• Simplified installation with no studs

• 2-Year warranty

INTRODUCTION:

The ATianma TM080SV-22L03 TFT LCD Module screen monitor is a fully-integrated, off-the-shelf unit (COTS) that combines high-performance Projected Capacitive Touch Technology (PCT or PCAP); in an industrial-grade LCD flat panel, with open Frame chassis mount industrial design. The PCAP industrial multi-touch displays with HMI interface provide full range of industrial-grade units with multi-function capabilities and brilliant displays.

We also provide full list for the Tianma LCD model series. We are distributor for Commercial & Industrial LCD Panel not only for the Tianma LCD, but also the LCD panels for Samsung, LG, Sharp, Innolux, AUO, BOE and more.
