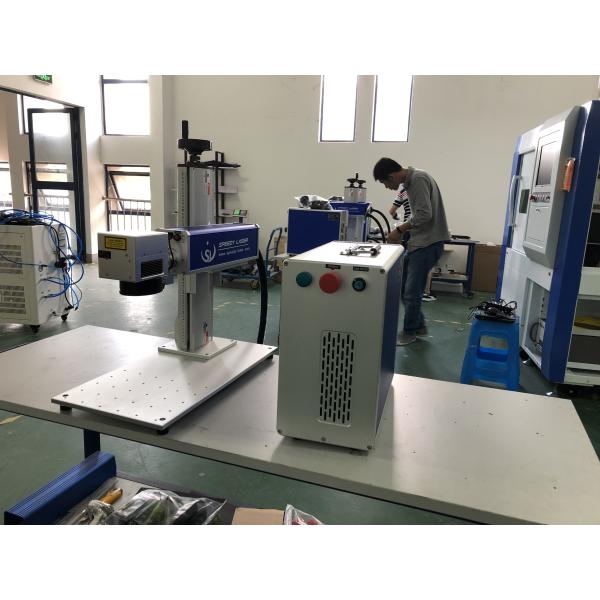

High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings
High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings
High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings
High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings
High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings
High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings
Specifications
Brand Name :
Speedy Laser
Model Number :
SL-FM 30W
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / month
Delivery Time :
5-7 days
Packaging Details :
Plywood packing
Laser source :
Raycus / JPT
laser power :
30watt
working size :
110*110mm
laser wavelength :
1064nm
cutting materials :
gold silver
name :
laser machine for jewelry
Description

High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings

Product Features:


30W / 50W laser power, the machine can marking / cutting 1mm gold silver etc.

China Raycus iber laser source, without any adjustment collimating optical element.


Smaller output laser beam ,fine marking line. Suitable high precision marking.

Using environment is liberal, Long life, laser generator life over 100,000 hours.

The machine equip special rotary for marking rings bracelet.

High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings


Application:


SL-FM 30W fiber laser marking machine wide range application,mainly for all kinds of metal jewelry such

as cutting marking gold,silver,brass, max can cut 1.5mm.The machine can engraving different english

letters, pattern,photo on the jewelry.


Technical parameters:

Item Name Technical Parameter
Model SL-FM 30W
Laser Power 30W
Laser wavelength 1064nm
Laser type Raycus/ IPG fiber laser source
Beam diameter 7mm±1
Repeat frequency 30KHz-60KHz
Pulse width 131ns
Marking depth 0.01-1mm
Marking area 110×110mm
Rated power consumption 600W
Operating voltage 110V- 240V/50-60 Hz/15A
Cooling Air Cooling
Packing size 88*42*83cm (L*W*H)
Gross weight 60 KG
Package Standard export wooden


Jewelry 50W fiber laser cutting / marking machine global customer :

High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings

High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings

High Precision engraving Marking 30Watt Jewelry Laser Machine with rotary marking rings
