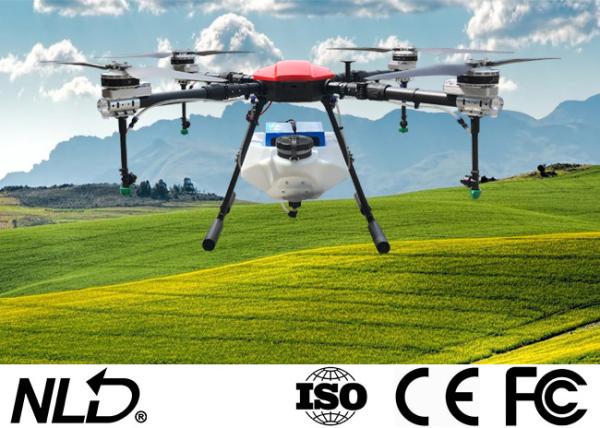

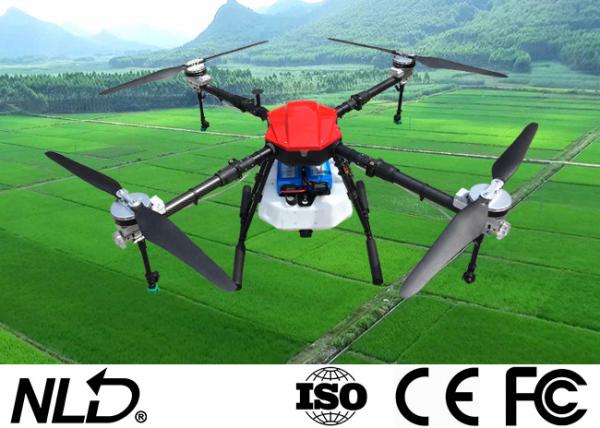

NLA-410 Agricultural Pesticide Spraying Drone With RTK Centimeter Positioning
NLA-410 Agricultural Pesticide Spraying Drone With RTK Centimeter Positioning
NLA-410 Agricultural Pesticide Spraying Drone With RTK Centimeter Positioning
NLA-410 Agricultural Pesticide Spraying Drone With RTK Centimeter Positioning
Specifications
Brand Name :
NLD
Model Number :
NLA-410
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Type :
Agricultural pesticide spraying drone
Flight controller :
2CPU + 3 IMU
Hovering accuracy horizontal :
+/- 1.5m
Hovering accuracy vertical :
+/- 0.5m
Folded Size :
700*658*567mm
Expand Size :
1780*1780*567mm
Description

NLA-410 Agricultural Pesticide Spraying Drone With RTK Centimeter Positioning

Description NLA410 NLA416 NLA610 NLA616 NLA622 NLA630 NLA650
Aircraft Frame 4 rotors 4 rotors 6 rotors 6 rotors 6 rotors 6 rotors 8 rotors
Flight Controller √ √ √ √ √ √ √
GPS Dot Device √ √ √ √ √ √ √
Pesticide Tank 10L 16L 10L 16L 22L 30L 50L
Spray System Water pump + flow meter + water pipe + nozzle
Remote Controller Remote control + digital transmission 5.5” screen + Android + ground workstation
Charger Dual channel charger
Battery

2*16000

mAh

2*22000

mAh

2*16000

mAh

2*22000

mAh

2*22000

mAh

2*30000

mAh

2*27000

mAh14S
Aluminum Case √ √ √ √ √ √ √

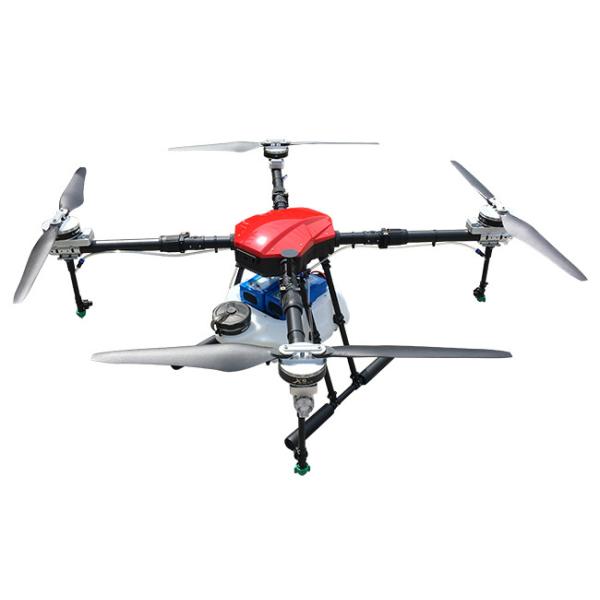

Model: NLA410

Rotor: 4

Hovering accuracy horizontal: +/- 1.5m

Hovering accuracy vertical: +/- 0.5m

Wind resistance: 4～5

Motor: 4*100KV

Electronic Speed Control: 80A

Motor applicable temperature: -20～50

Foldable propeller: 3090

Take-off Capacity: 28kg

Flying Time (with payload): 15~20min

Flying distance: 5000m

Working distance: 2000m

Flying Speed: 0~10m/s

Spray Width: 3~3.5m

Spray Flow: 1.2~2L/min

Spray Efficiency: 1000~2100sqm/min

Expand Size: 1780*1780*567mm

Wheelbase: 1362mm

Folded Size: 700*658*567mm


NLA-410 Agricultural Pesticide Spraying Drone With RTK Centimeter Positioning

Other Models

Model NLA416 NLA610 NLA622
Rotor 4 6 6

Hovering accuracy

horizontal

 +/- 1.5m +/- 1.5m +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m +/- 0.5m +/- 0.5m
Wind resistance 4～5 4～5 4～5
Motor 4*110KV 6*180KV
Electronic Speed Control 120A 80A
Motor applicable temperature -20～50 -20～50 -20～50
Foldable propeller 3411 2388
Pesticide Tank 16L 10L 22L
Take-off Capacity 38kg 30kg
Flying Time (with payload) 15~20min 15~20min 15~20min
Flying distance 5000m 5000m 5000m
Working distance 2000m 2000m 2000m
Flying Speed 0~10m/s 0~10m/s 0~10m/s
Spray Width 3~3.5m 3.5~4m 3.5~4m
Spray Flow 1.2~2L/min 1.2~2L/min 1.5~2.5L/min
Spray Efficiency 1000~2100sqm/min 1500~2400sqm/min
Expand Size 1848*1848*628mm 1992*1992*562mm
Wheelbase 1416mm 1407mm
Folded Size 648*671*628mm 945*848*562mm
Battery / Quantity 6S/22000mAh / 2pcs 6S/16000mAh / 2pcs 6S 22000mAh / 2pcs
FPV Camera Optional Optional Optional
Obstacle avoidance radar Optional Optional Optional
Terrain following radar Optional Optional Optional
RTK centimeter positioning Optional Optional Optional
