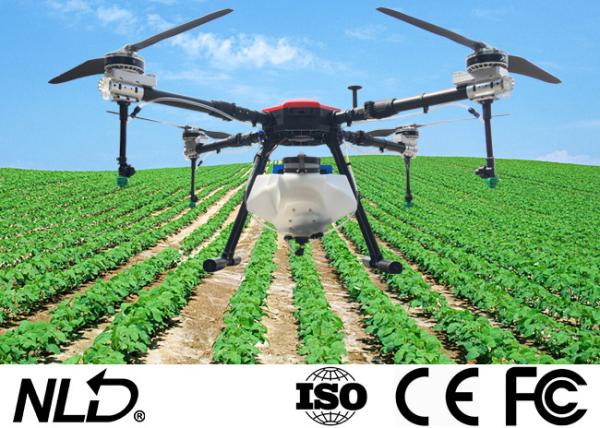

NLA - 410 Agriculture Spraying Drone With 4 Rotors Pesticide Tank 10L
NLA - 410 Agriculture Spraying Drone With 4 Rotors Pesticide Tank 10L
NLA - 410 Agriculture Spraying Drone With 4 Rotors Pesticide Tank 10L
NLA - 410 Agriculture Spraying Drone With 4 Rotors Pesticide Tank 10L
Specifications
Brand Name :
NLD
Model Number :
NLA-410
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Type :
NLA-410 Agriculture Spraying Drone
Rotor :
4
Hovering accuracy horizontal :
+/- 1.5m
Hovering accuracy vertical :
+/- 0.5m
Wind resistance :
4～5
Motor :
4*100KV
Description

NLA-410 Agriculture Spraying Drone With 4 Rotors Pesticide Tank 10L

Description NLA410 NLA416
Aircraft Frame 4 rotors 4 rotors
Flight Controller √ √
GPS Dot Device √ √
Pesticide Tank 10L 16L
Spray System Water pump + flow meter + water pipe + nozzle
Remote Controller Remote control + digital transmission 5.5” screen + Android + ground workstation
Charger Dual channel charger
Battery 2*16000mAh 2*22000mAh
Aluminum Case √ √
Quick Details
Flight controller: 2CPU + 3 IMU
Material: Carbon Fiber + Aviation Aluminum
Flight time: 15~20minutes
Spray width: 3~5m
Spray efficiency: 6~8 Ha/hour
Lead time: 15days
Tank: 10/16/22/30/50L
Work mode: Manual / Workstation

Model NLA410 NLA416
Rotor 4 4

Hovering accuracy

horizontal

 +/- 1.5m +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m +/- 0.5m
Wind resistance 4～5 4～5
Motor 4*100KV 4*110KV
Electronic Speed Control 80A 120A
Motor applicable temperature -20～50 -20～50
Foldable propeller 3090 3411
Pesticide Tank 10L 16L
Take-off Capacity 28kg 38kg
Flying Time (with payload) 15~20min 15~20min
Flying distance 5000m 5000m
Working distance 2000m 2000m
Flying Speed 0~10m/s 0~10m/s
Spray Width 3~3.5m 3~3.5m
Spray Flow 1.2~2L/min 1.2~2L/min
Spray Efficiency 1000~2100sqm/min 1000~2100sqm/min
Expand Size 1780*1780*567mm 1848*1848*628mm
Wheelbase 1362mm 1416mm
Folded Size 700*658*567mm 648*671*628mm
Battery / Quantity 6S/16000mAh / 2pcs 6S/22000mAh / 2pcs
FPV Camera Optional Optional
Obstacle avoidance radar Optional Optional
Terrain following radar Optional Optional
RTK centimeter positioning Optional Optional

NLA - 410 Agriculture Spraying Drone With 4 Rotors Pesticide Tank 10L

Why choose NEWLANDLE sprayer drone?

1. The whole machine (except for the motor and battery) is dust-proof and waterproof, and the waterproof level reaches IP65. Can be washed directly with water

2. Easy to maintain and repair

  • We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.

3. Efficient

  • 11-18 acres/hour.

4. Stable

  • Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;

5. Intelligent

  • One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
  • Low voltage, no signal, return automatically;
  • Fail safe protection;
  • Spray flow control;
  • Intelligent automatic obstacle avoidance;
  • Intelligent terrain following;
  • FPV Camera;
  • RTK centimeter positioning.

6. Quality control

  • Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.

7. Effective

  • Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.

8. Good service

  • Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.
