Customizable Handheld Dew Point Meter Micro Water Tester Gas Detector For Compressed Air
Customizable Handheld Dew Point Meter Micro Water Tester Gas Detector For Compressed Air
Customizable Handheld Dew Point Meter Micro Water Tester Gas Detector For Compressed Air
Customizable Handheld Dew Point Meter Micro Water Tester Gas Detector For Compressed Air
Specifications
Place of Origin :
Xi'an, Shaanxi, China
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Multi-Gas
Brand Name :
Runlai
Alarm Mode :
Sound
type :
Multi-Gas Detector
Certification :
ISO certification
MOQ :
1
Accuracy Class :
High Accuracy
Model Number :
DPH300
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Price :
Negotiable
Packaging Details :
Export Standard
Delivery Time :
appointed time
Description

Handheld Dew Point Meter Trace Water Analyzer Micro Water Tester Metal Construction Customizable Gas Detector For Compressed Air Industrial Gas Moisture Test

Customizable Handheld Dew Point Meter Micro Water Tester Gas Detector For Compressed Air
Technical Specifications
Response time: T90 ≤ 30 S
Storage interval: 1 S–99 min (adjustable)
Number of storage points: Millions+
Instrument lifespan: 6 years (under proper operating conditions)
Operating voltage: 220V ± 10%, 50Hz
Total power consumption: ≤ 10W
Touch current capacity: 220VAC, 2A/24VDC, 1A
Digital signals: Standard RS485/RS232 communication ports for two-way communication with computers
Analog output: 4–20mA standard output signal, load resistance < 500 ohms (0–10V optional)
Mounting method: Embedded installation

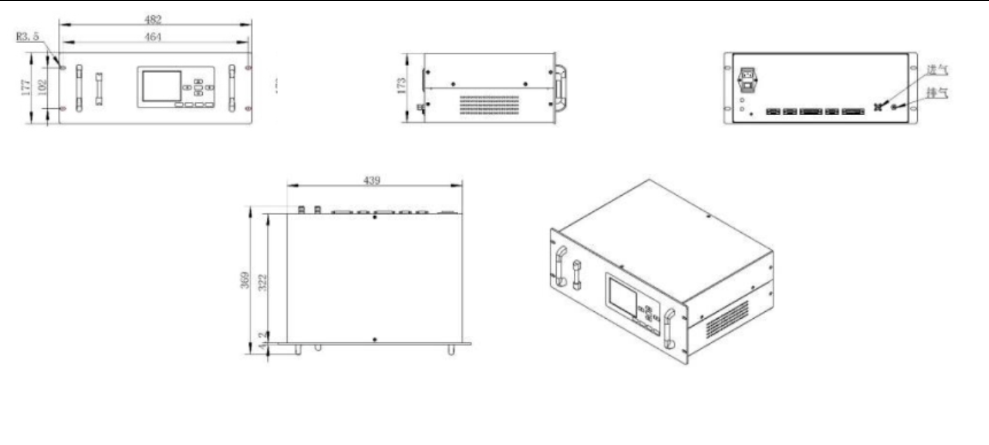

Dimensions: 480mm x 500mm x 150mm
Inlet and outlet ports: Φ6 stainless steel pipes (customizable)
Total weight: Approximately 13kg
Ambient temperature: –25°C to +55°C
Ambient humidity: ≤90%RH
Inlet pressure: 0.05 MPa ≤ inlet pressure ≤ 0.25MPa
Sample gas flow rate: (400±50) ml/min
Sample gas requirements: Dust-free, oil-free, water-free
Key Features
  • Full Chinese touch-screen menu for easy configuration, calibration, testing of instrument parameters, and quick operations like viewing historical records and curves by time setting
  • Displays measurement values, historical curves, range, status, and parameter setting interfaces simultaneously
  • Uses imported sensors with long lifespan, high precision, and fast response
  • Automatic scheduled storage function when unattended, with stored data available at any time
  • Built-in temperature compensation to minimize the impact of sample gas temperature and environmental changes on measurement accuracy
  • 64MB memory and 128MB FLASH with USB interface for convenient data storage
  • Ethernet port for connection to wide area networks
  • Features a new type of gas flow stabilization system with advanced technology, high precision, fast response, stable performance, comprehensive functionality, easy operation, and continuous gas analysis process
  • Built-in pump (optional)

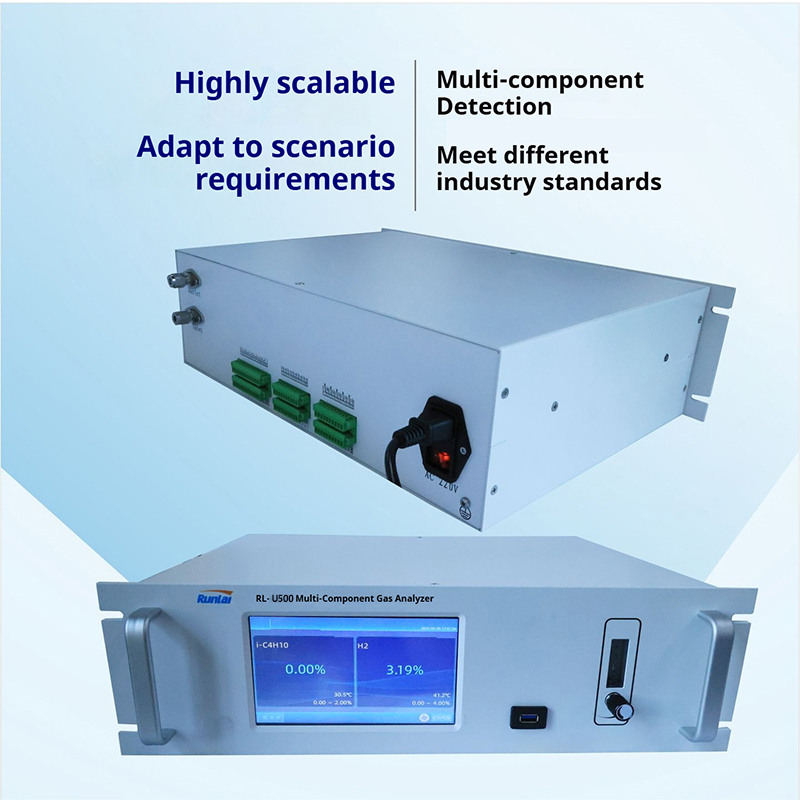

The RL-U500 gas analyzer is a conventional gas analysis instrument independently developed by our company for environmental protection and industrial control applications both domestically and internationally. This analyzer boasts high measurement accuracy, reliability, fast response time, and wide applicability. Its performance meets or exceeds that of similar products worldwide, making it widely suitable for environmental monitoring, industrial control, and other scenarios.
