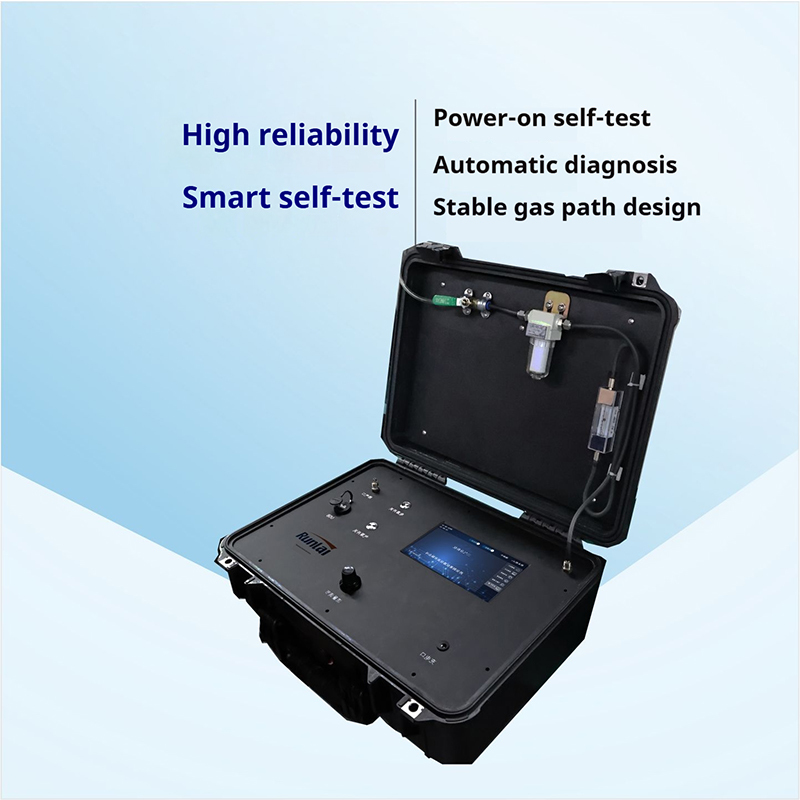

High Precision Multi Gas Analyzer Metal Gas Detector Device For CH4 CO Gas Analysis
High Precision Multi Gas Analyzer Metal Gas Detector Device For CH4 CO Gas Analysis
High Precision Multi Gas Analyzer Metal Gas Detector Device For CH4 CO Gas Analysis
High Precision Multi Gas Analyzer Metal Gas Detector Device For CH4 CO Gas Analysis
Specifications
type :
Multi-Gas Detector
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Packaging Details :
Export Standard
Model Number :
M550
Accuracy Class :
High Accuracy
Certification :
ISO certification
Place of Origin :
Xi'an, Shaanxi, China
Brand Name :
Runlai
MOQ :
1
Price :
Negotiable
Delivery Time :
appointed time
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Multi-Gas
Alarm Mode :
Sound
Description
Measurement principle Infrared principle

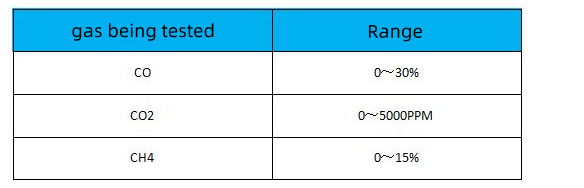

Measurement range

 High Precision Multi Gas Analyzer Metal Gas Detector Device For CH4 CO Gas Analysis

Resolution

 0.01%
Accuracy ≤±2%F.S
Repeatability ≤±0.5%F.S
Stability ≤±1%F.S
Response time T90≤10S
Storage interval 1s-99min (adjustable)
Number of storage points Millions+
Instrument lifespan 6 years (under proper operating conditions)
Charging voltage 220VAC, 2A/24VDC, 1A, charger comes with built-in overcharge protection
Total power consumption ≤25W

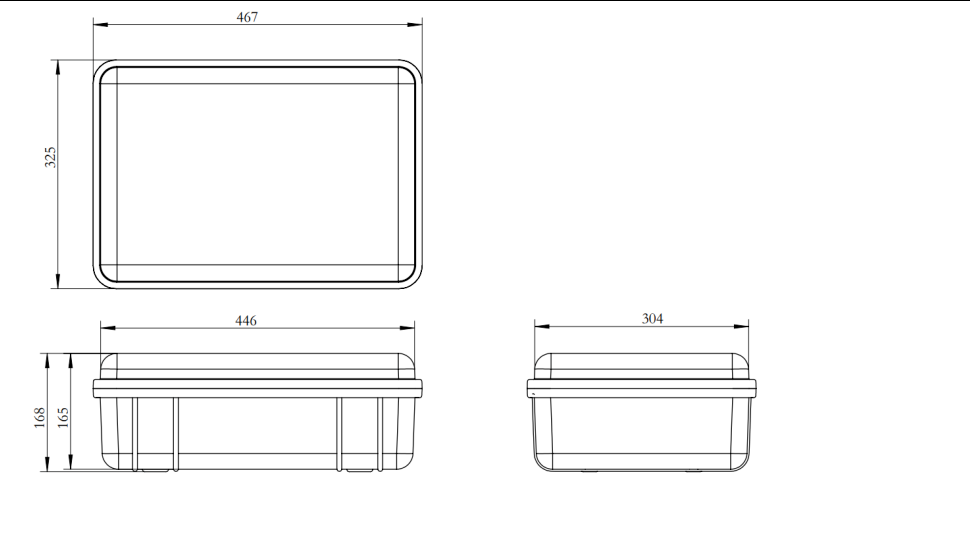

Dimensions 487mm (width) ×168mm (height) ×325mm (depth)
Inlet and outlet ports φ6 ferrule connectors (customizable)
Weight Approximately 8kg
Operating temperature –25°C～＋55°C
Humidity ≤90%RH
Inlet pressure 0.05MPa≤Inlet pressure≤0.25Mpa
Sample gas flow rate 400±50ml/min
Sample gas requirements Dust-free, oil-free, water-free
Key Features
  • 19-inch color high-definition touch screen for easy operation;
  • Exquisitely manufactured with Chinese/English interfaces for simple and convenient operation;
  • Automatically detects and updates software upon startup;
  • Measured data can be recorded and easily read;

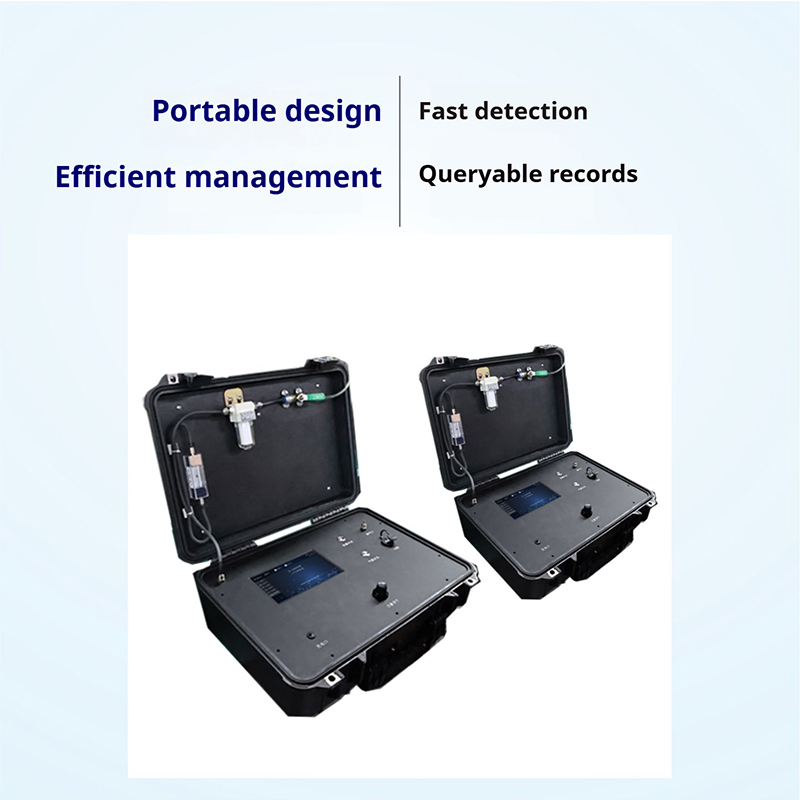

  • Compact and lightweight, ideal for field use;
  • Equipped with high-precision German sensors for high accuracy and good repeatability;
  • Includes 8GB USB flash drive for storing measurement data;
  • Dual-stage filters to ensure sample gas quality;
  • Built-in adjustable flow rate pump, German-made for reliable performance;
  • Includes powerful atmosphere calculator designed by heat treatment engineers;
  • High-performance, large-capacity fast-charging lithium battery with remaining battery level display;
  • Energy-efficient design with low power consumption when turned off;
  • Can calculate: dew point, millivolt value (oxygen probe output signal), atmosphere carbon potential, workpiece surface carbon potential, methane carbon potential
Applications

Suitable for various heat treatment atmospheres, including: endothermic atmospheres, nitrogen-methanol atmospheres, methanol dripping atmospheres, super atmospheres, exothermic atmospheres, spheroidizing annealing, normalizing, sintering, brazing, and other protective atmospheres
