Measurement Principle: NDIR principle (non-dispersive infrared);

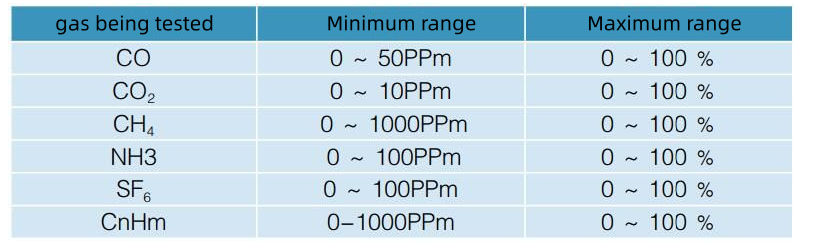

Measurement Range: (Select detection components and range at the time of ordering)

The above ranges and components can be combined as needed by the user.
Sample Gas Pressure: 0.05MPa ≤ Inlet Pressure ≤ 0.25MPa;
Control Output: Relay contact output, which can be set by the user;
Contact Capacity: 220VAC, 2A/24VDC, 1A;
Analog Output: 4 ～ 20mA (specify at the time of ordering), Standard Load: ≤250Ω;
Communication Output: RS-232 or RS-485 (specify at the time of ordering);
Operating Environment: Operating Temperature: -5°C to +45°C;
Operating Humidity: ≤90%RH;
Power Supply: ~220V±10%, 50HZ;

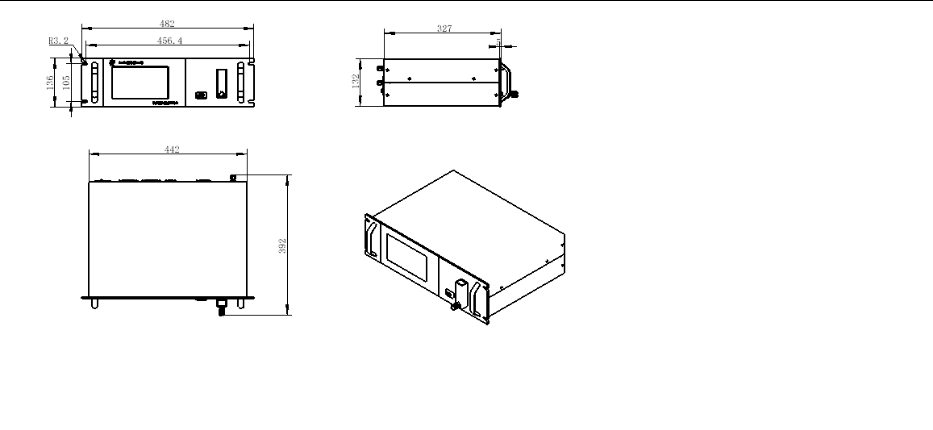

Installation Dimensions: 3U chassis; i.e., 440(w)×136(h);
Weight: Approximately 6Kg;
Service Life: >12 months (under normal usage conditions) (electrochemical >2 years);
Gas Path Interface: Φ6 stainless steel pipe (can be customized according to customer requirements);
Installation Method: Embedded installation;

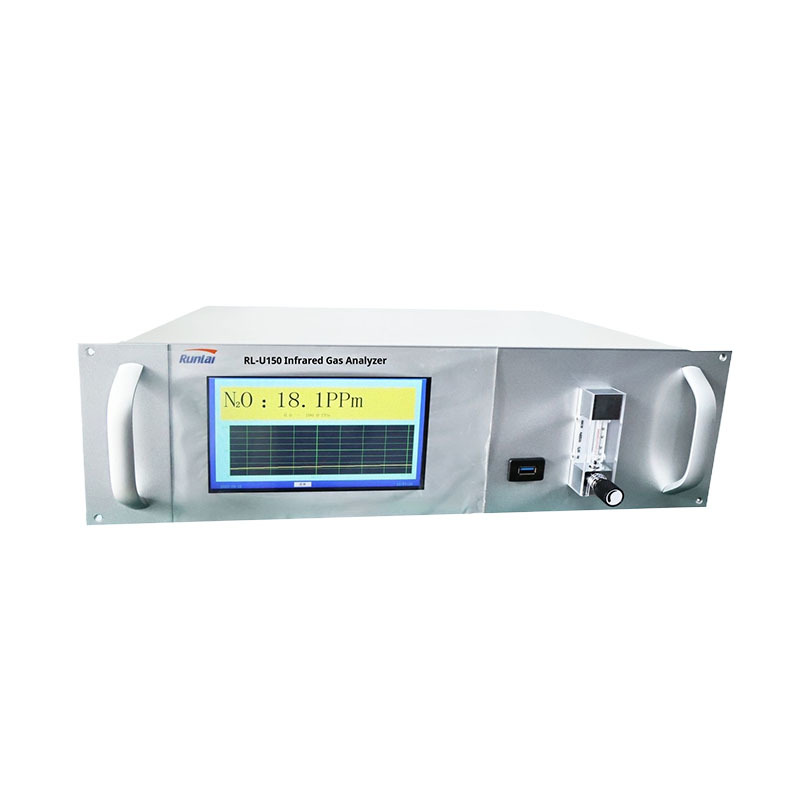

• Features a high-performance embedded integrated touch, TFT true-color display screen;
• Can simultaneously display measurement values, historical curves, range, status, and various parameter setting interfaces;
• Configuration, calibration, testing of various instrument parameters, as well as quick operations like historical records and curve settings by time, are all done through a fully Chinese touch menu;
• Utilizes a non-dispersive infrared sensor with long life, high sensitivity, fast response, high reliability, good stability, and selectivity;
• New type of gas path flow stabilization system: features advanced technology, high precision, fast response, stable performance, and continuous gas analysis process.

Widely used in industrial control, air quality monitoring, methane content detection in landfills, sewage treatment plants, and biogas projects, as well as infrared gas detection in industrial fluid welding processes.
