NDIR Portable Multi Gas Detector High Precision Gas Analyzer For CH4 CO CO2 SF6 SO2 CnHm NH3
NDIR Portable Multi Gas Detector High Precision Gas Analyzer For CH4 CO CO2 SF6 SO2 CnHm NH3
NDIR Portable Multi Gas Detector High Precision Gas Analyzer For CH4 CO CO2 SF6 SO2 CnHm NH3
NDIR Portable Multi Gas Detector High Precision Gas Analyzer For CH4 CO CO2 SF6 SO2 CnHm NH3
Specifications
type :
Multi-Gas Detector
Packaging Details :
Export Standard
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Accuracy Class :
High Accuracy
Price :
Negotiable
Brand Name :
Runlai
Delivery Time :
appointed time
MOQ :
1
Place of Origin :
Xi'an, Shaanxi, China
Certification :
ISO certification
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Multi-Gas
Alarm Mode :
Sound
Description

Customizable NDIR Multi-Gas Detector Runlai B150, Portable High Precision Gas Analyzer for Accurate CH4, CO, CO2, SF6, SO2, CnHm and NH3 Gas Analysis

Product specs
Measurement principle NDIR principle (non-dispersive infrared)

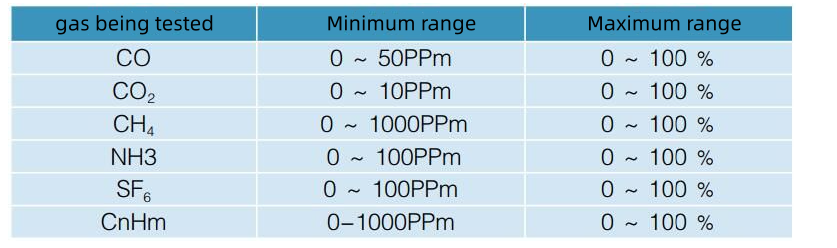

Measurement range (Select the component to be detected and the range at the time of ordering)
Accuracy ≤±2%F.S
Resolution 0.01%
Repeatability ≤±1%F.S
Stability Zero drift ≤±1%F.S/7d
Range drift ≤±1%F.S/7d
Response time T90≤10 S
Storage interval 1S-99 min (adjustable)
Number of storage points 1824
Instrument lifespan 6 years (under proper operating conditions)
Charging voltage 220VAC, 50Hz, charger comes with built-in overcharge protection
Total power consumption ≤25W

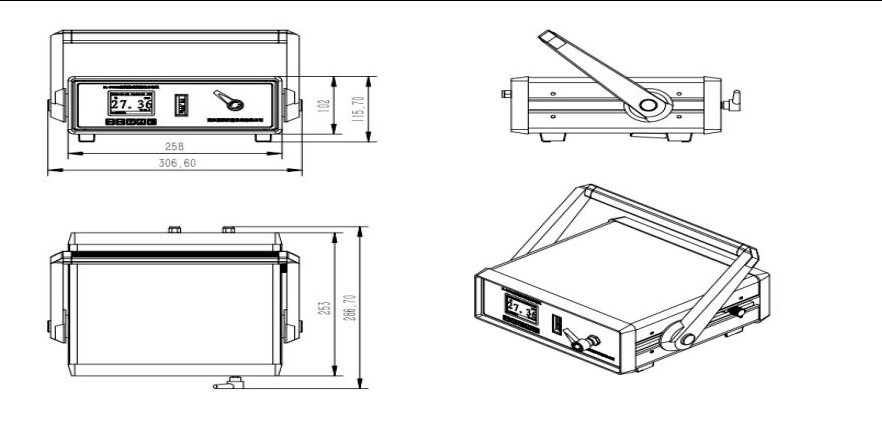

Dimensions 307mm (width) × 116mm (height) × 286mm (depth)
Inlet and outlet ports Φ6 (outer diameter) quick-connect fittings (customizable sizes)
Weight Approximately 3.0 Kg
Ambient temperature –25°C～＋55°C
Ambient humidity ≤90%RH
Inlet pressure 0.05MPa ≤ inlet pressure ≤ 0.25Mpa
Sample gas flow rate (400±50)ml/min
Sample gas requirements Dust-free, water-free, oil-free
NDIR Portable Multi Gas Detector High Precision Gas Analyzer For CH4 CO CO2 SF6 SO2 CnHm NH3
Product Features
  • The instrument features a fully Chinese menu interface, which is easy to understand, simple, and reliable. It provides self-alarm when limits are exceeded (buzzer and screen display), and the alarm method can be customized;
  • With automatic scheduled storage function when unattended, allowing for real-time data retrieval;
  • Built-in temperature compensation to minimize the impact of sample gas temperature and environmental changes on measurement accuracy;
  • Utilizes a new type of gas flow stabilization system; it offers high technology, precision, fast response, stable performance, comprehensive functionality, ease of operation, and continuous gas analysis process;
  • Equipped with high-power batteries, providing over 20 hours of continuous operation on a single charge;
  • Optional built-in vacuum pump
Application areas

Widely used in industrial control, air quality monitoring, methane content detection in landfills, sewage treatment plants, and biogas projects, as well as infrared detection in industrial fluid welding processes
