High Accuracy Portable Syngas Tester Coke Oven Gas Composition Heating Value Analyzer
High Accuracy Portable Syngas Tester Coke Oven Gas Composition Heating Value Analyzer
High Accuracy Portable Syngas Tester Coke Oven Gas Composition Heating Value Analyzer
High Accuracy Portable Syngas Tester Coke Oven Gas Composition Heating Value Analyzer
Specifications
Model Number :
M501
type :
Multi-Gas Detector
MOQ :
1
Certification :
ISO certification
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Accuracy Class :
High Accuracy
Packaging Details :
Export Standard
Delivery Time :
appointed time
Place of Origin :
Xi'an, Shaanxi, China
Payment Terms :
L/C、D/A、D/P、T/T
Price :
Negotiable
Target Gas :
Multi-Gas
Alarm Mode :
Sound
Brand Name :
Runlai
Description
High Accuracy Portable Syngas Tester Coke Oven Gas Composition Heating Value Analyzer
Product Specifications
  • Measurement Principle: Electrochemical/Infrared/Laser/Thermal Conductivity (optional based on customer requirements)

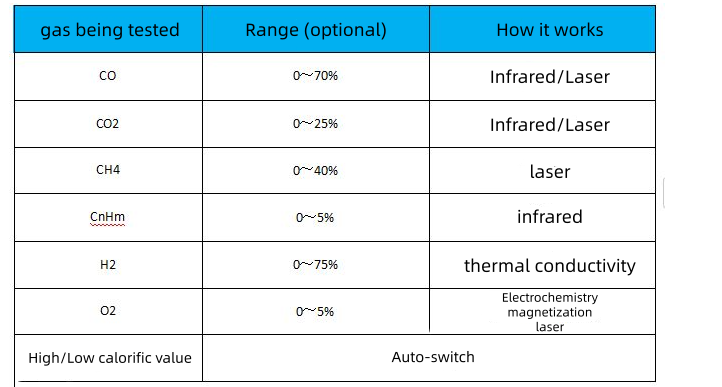

  • Range:
  • Accuracy: ≤±1%F.S
  • Resolution: 0.01%
  • Repeatability: ≤±1%F.S
  • Stability: Zero drift ≤ ±1%F.S/7d
  • Range drift ≤ ±1%F.S/7d
  • Response Time: T90≤10S
  • Storage Interval: 1S-99min (adjustable)
  • Number of Stored Points: Millions+
  • Instrument Lifespan: 6 years (under proper operating conditions)
  • Charging Voltage: 220V AC, 50HZ, charger comes with built-in protection features
  • Total Power Consumption: ≤25W

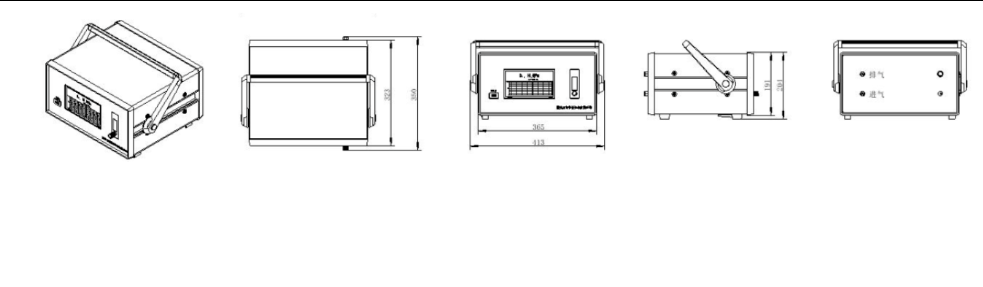

  • Dimensions: 480mm (width) ×136mm (height) ×370mm (depth)
  • Inlet/Outlet: φ6 ferrule connectors (customizable)
  • Weight: Approximately 8kg
  • Operating Temperature: –25°C～＋55°C
  • Humidity: ≤90%RH
  • Inlet Pressure: 0.05MPa≤Inlet Pressure≤0.25Mpa
  • Sample Gas Flow Rate: 400±50ml/min
  • Sample Gas Requirements: Dust-free, oil-free, water-free
Product Overview

This product is a high-precision online gas detection and analysis instrument developed by our company. Utilizing tunable diode laser (TDLA), non-dispersive infrared (NDIR), thermal conductivity, and electrochemical sensors, combined with microcontroller control technology, it fundamentally eliminates interference between methane and hydrocarbons. It features high measurement accuracy, good stability, and ease of use.

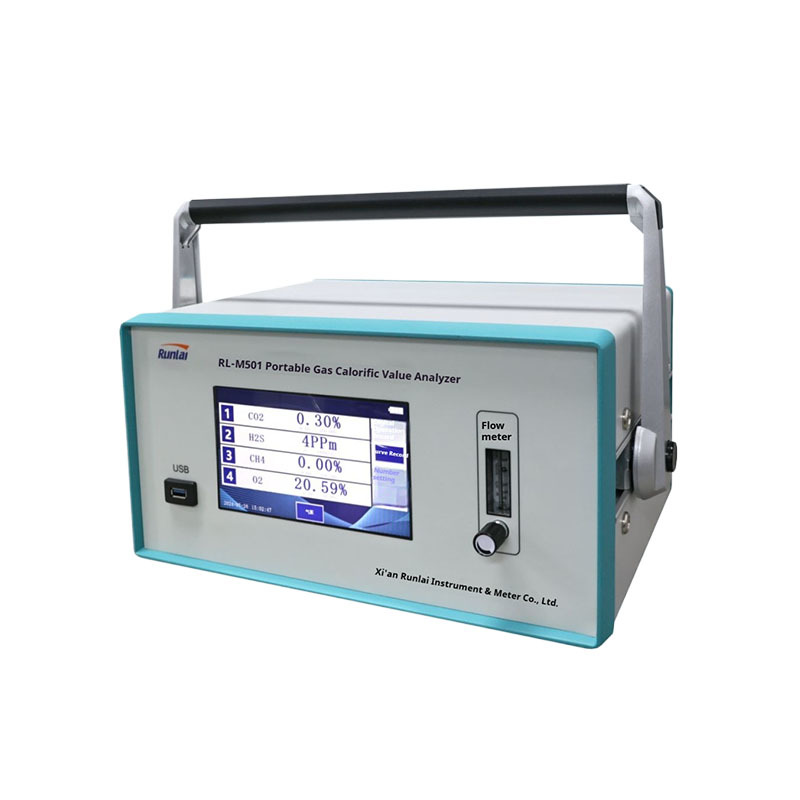

The instrument features a high-performance embedded touch TFT color display that can simultaneously show measurement values, historical curves, range, status, and various parameter setting interfaces.

Configuration, calibration, testing of all instrument parameters, as well as historical records and curves, can be done via a fully Chinese touch menu or remote control, with time settings available for records and curves.

The instrument comes standard with a data copy function, making data recording simpler.

The new type of gas flow stabilization system offers advantages such as advanced technology, high precision, fast response, stable performance, and continuous gas analysis process.

It is widely used in coal gas, natural gas, coal and cement plants, petrochemicals, calcium carbide furnaces, metallurgy, electronics and power, environmental protection, galvanizing lines, and other fields.
