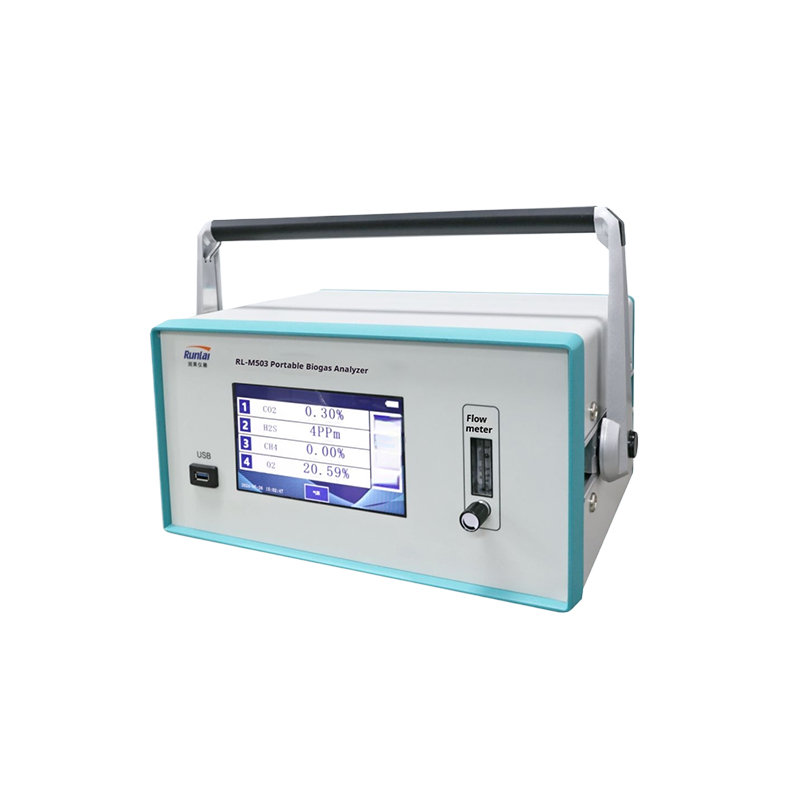

High Precision Biogas Detector Portable Gas Calorimeter For CO2 CH4 H2S O2 Measurement
High Precision Biogas Detector Portable Gas Calorimeter For CO2 CH4 H2S O2 Measurement
High Precision Biogas Detector Portable Gas Calorimeter For CO2 CH4 H2S O2 Measurement
High Precision Biogas Detector Portable Gas Calorimeter For CO2 CH4 H2S O2 Measurement
Specifications
type :
Multi-Gas Detector
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Accuracy Class :
High Accuracy
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1
Delivery Time :
appointed time
Certification :
ISO certification
Price :
Negotiable
Brand Name :
Runlai
Packaging Details :
Export Standard
Model Number :
M503
Alarm Mode :
Sound
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Multi-Gas
Description

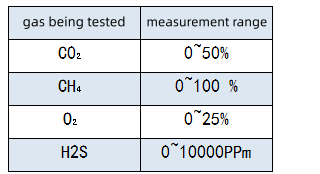

Measurement range: (Select the components and range to be measured at the time of ordering)

High Precision Biogas Detector Portable Gas Calorimeter For CO2 CH4 H2S O2 Measurement
Technical Specifications
Resolution 0.01%, 0.1%
Accuracy ≤±1%F.S
Calorific value accuracy ≤±1%
Repeatability ≤±1%F.S
Stability ≤±1%F.S/7 days
Response time T90 ≤30S
Preheating time ≤45min
Sample gas flow rate (400±40)mL/min
Sample gas pressure 0.05MPa ≤ inlet pressure ≤ 0.25MPa
Control output Relay contact output, and can be set arbitrarily by the user
Contact capacity 220VAC, 2A/24VDC, 1A
Analog output 4～20mA (specify at the time of ordering), standard load: ≤500Ω
Communication output RS-232 or RS-485 (specify at the time of ordering)
Operating environment Operating temperature: -5℃～+45℃; Operating humidity: ≤90%RH
Power supply ~220V±10%, 50HZ

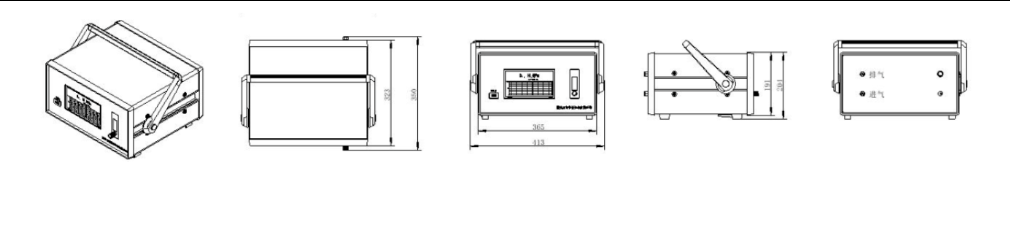

Instrument dimensions 365mm(w)*180mm(h)*265mm(d)
Weight Approximately 6Kg
Service life >6 years (under normal operating conditions) (electrochemical >2 years)
Gas path interface Φ6 stainless steel pipe (can be customized according to customer requirements)
Installation method Embedded installation
Pump Built-in inlet sampling pump, for use with negative or positive pressure sample gas (optional)
Key Features
  1. The RL-M500 biogas analyzer is a high-precision online gas detection and analysis instrument developed by our company. This instrument uses imported sensors combined with microcontroller control technology, featuring high measurement accuracy and easy operation; (Multiple four-component options available)
  2. The instrument features a high-performance embedded touch, TFT true color display, capable of simultaneously showing measurement values, historical curves, range, status, and various parameter setting interfaces;
  3. All instrument parameters can be configured, calibrated, and tested using a full Chinese touch menu or remote control, with historical records and curves settable by time;
  4. New type of gas path flow stabilization system: Advantages include advanced technology, high accuracy, fast response, stable performance, and continuous gas analysis process;

100% applicable in biogas, blast furnaces, converters, coke ovens, and other gas sources, galvanizing lines, coal and cement facilities, petrochemicals, calcium carbide furnaces, liquefied natural gas, metallurgy, electronics and power, environmental protection, and other fields.
