CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
Specifications
Payment Terms :
L/C、D/A、D/P、T/T
MOQ :
1
type :
Multi-Gas Detector
Certification :
ISO certification
material :
Metal
Precision :
≤±2%F.S
Brand Name :
Runlai
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Resolution :
0.01 ppm (depending on the measurement range)
Place of Origin :
Xi'an, Shaanxi, China
Accuracy Class :
High Accuracy
Delivery Time :
appointed time
Measure principle :
Infrared correlation wheel filtering
Working voltage :
DC24V±0.5V
Environment humidity :
95% RH, no condensation
Model Number :
RL-G150L
Target Gas :
Multi-Gas
Alarm Mode :
Sound
customized support :
OEM/ODM/OBM/Software Reengineering
Sample gas flow rate :
800ml/min±10%
Price :
Negotiable
Measuring range :
Please check the details table below (customizable range)
Environmental temperature :
-10℃ ~ +40℃
Packaging Details :
Export Standard
Response time :
T90≤60S
Description
Product Introduction

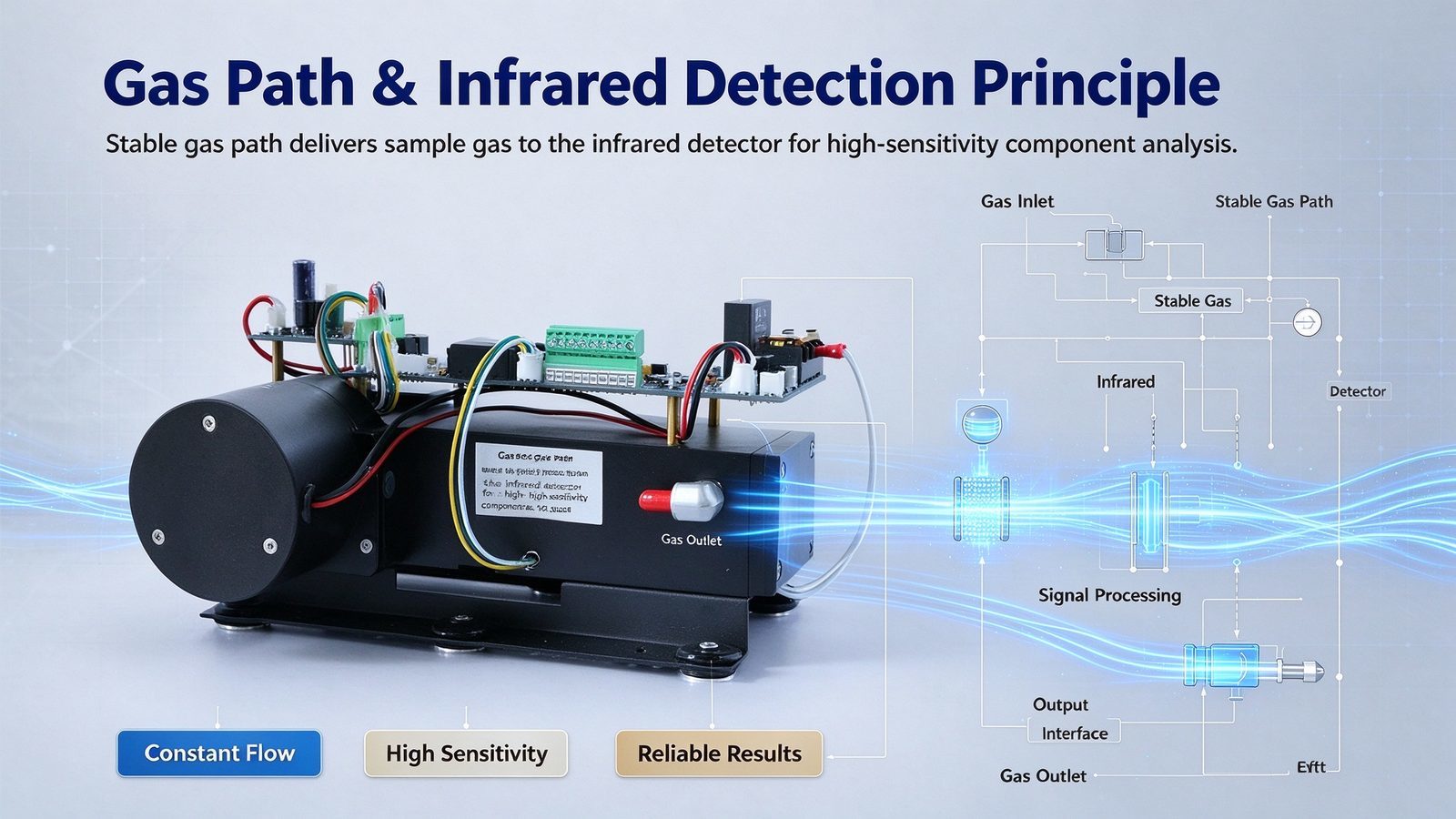

The RL-G150/RL-G150L gas sensors utilize infrared correlation filter technology for gas concentration detection. Their design combines a long-path gas absorption cell to effectively measure low-concentration gases, and employs dual-channel detection technology along with advanced analysis algorithms to compensate for environmental interference, thereby enhancing detection accuracy and stability.CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction

These sensors feature a modular structure for easy maintenance and are widely used in oil and gas, safety and environmental monitoring, pollution source flue gas monitoring, as well as industrial processes such as petroleum refining and coal chemical industries.CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction

Product Features

  • High Precision and Low Interference
    Dual-channel infrared detectors are used to compensate for absorption signals from the gas being measured, effectively reducing interference from environmental factors like temperature and improving detection accuracy.CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction

  • Excellent Temperature Stability
    An independently developed analysis algorithm is used to control the impact of temperature on the sensor, resulting in minimal temperature drift.CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction

  • High-Sensitivity Detection
    The long-path gas absorption cell design enhances gas absorption of infrared light, enabling measurement of low-concentration gases.CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction

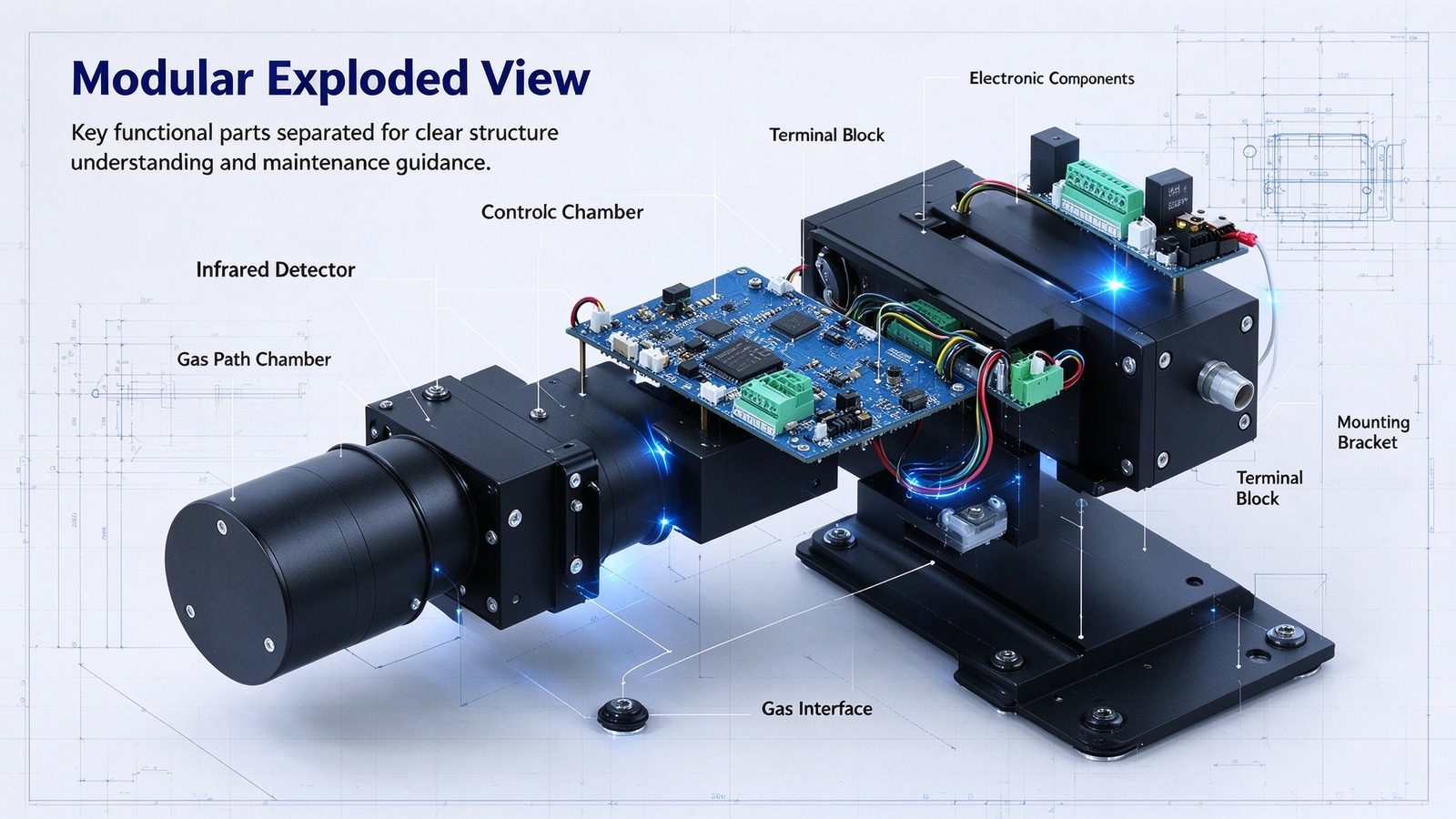

  • Modular Design and Long Lifespan
    The overall modular design ensures easy maintenance and high reliability; equipped with high-performance light sources and imported detectors, the sensors boast a long service service life.

CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction
Send your message to this supplier
Send Now

CO CO2 CH4 Infrared Multi Gas Sensor Module With Sound Alarm Metal Construction

Ask Latest Price
Watch Video
Product Detail
Payment Terms :
L/C、D/A、D/P、T/T
MOQ :
1
type :
Multi-Gas Detector
Certification :
ISO certification
material :
Metal
Precision :
≤±2%F.S
