Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
Specifications

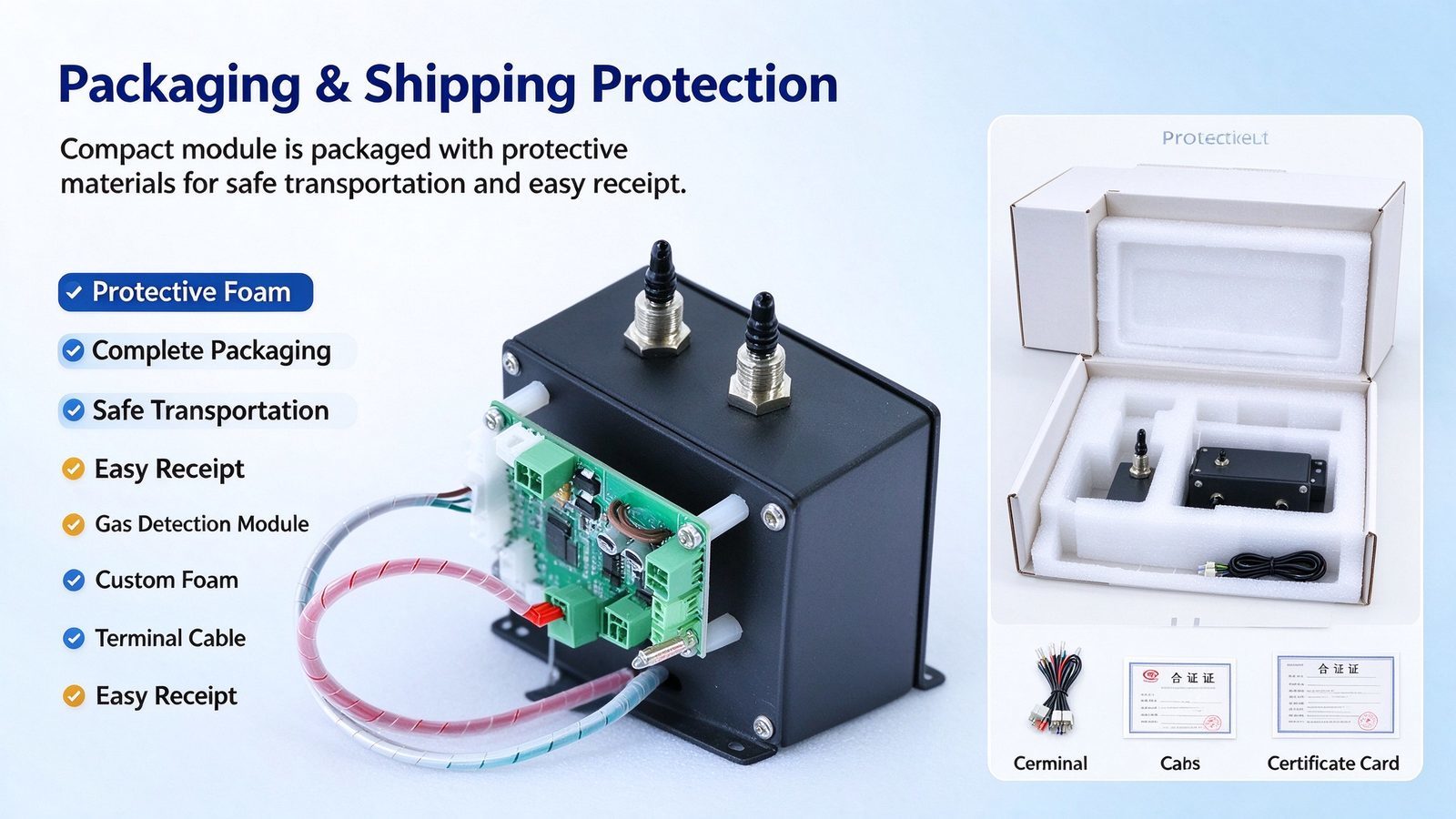

Packaging Details :
Export Standard
Measure principle :
NDIR (non-dispersive) principle
Working voltage :
DC12V±0.5V
Environment humidity :
≤90%RH
MOQ :
1
Payment Terms :
L/C、D/A、D/P、T/T
Brand Name :
Runlai
type :
Multi-Gas Detector
Model Number :
RL-L150
Target Gas :
Multi-Gas
Delivery Time :
appointed time
Alarm Mode :
Sound
material :
Metal
Precision :
±2%F.S
Place of Origin :
Xi'an, Shaanxi, China
Resolution :
0. 01 ppm (depending on the measurement range)
Accuracy Class :
High Accuracy
Response time :
T90≤5S
customized support :
OEM/ODM/OBM/Software Reengineering
Sample gas flow rate :
400±100ml/min
Price :
Negotiable
Measuring range :
Please check the details table below (customizable range)
Environmental temperature :
-10℃~+45℃
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Certification :
ISO certification
Description

Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm

Product Introduction

The RL-M150L infrared sensor is designed based on NDIR (non-dispersive infrared) technology and is used for quantitative detection of various gas components. The sensor features a dual-path structure and PID temperature control technology, combined with imported optical components and a stainless steel gold-plated gas chamber, ensuring stable measurement results while offering excellent corrosion resistance. This product can be widely applied in fields such as air separation, cement metallurgy, industrial process control, environmental monitoring, laboratory analysis, and vehicle exhaust detection.Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm

Product Features

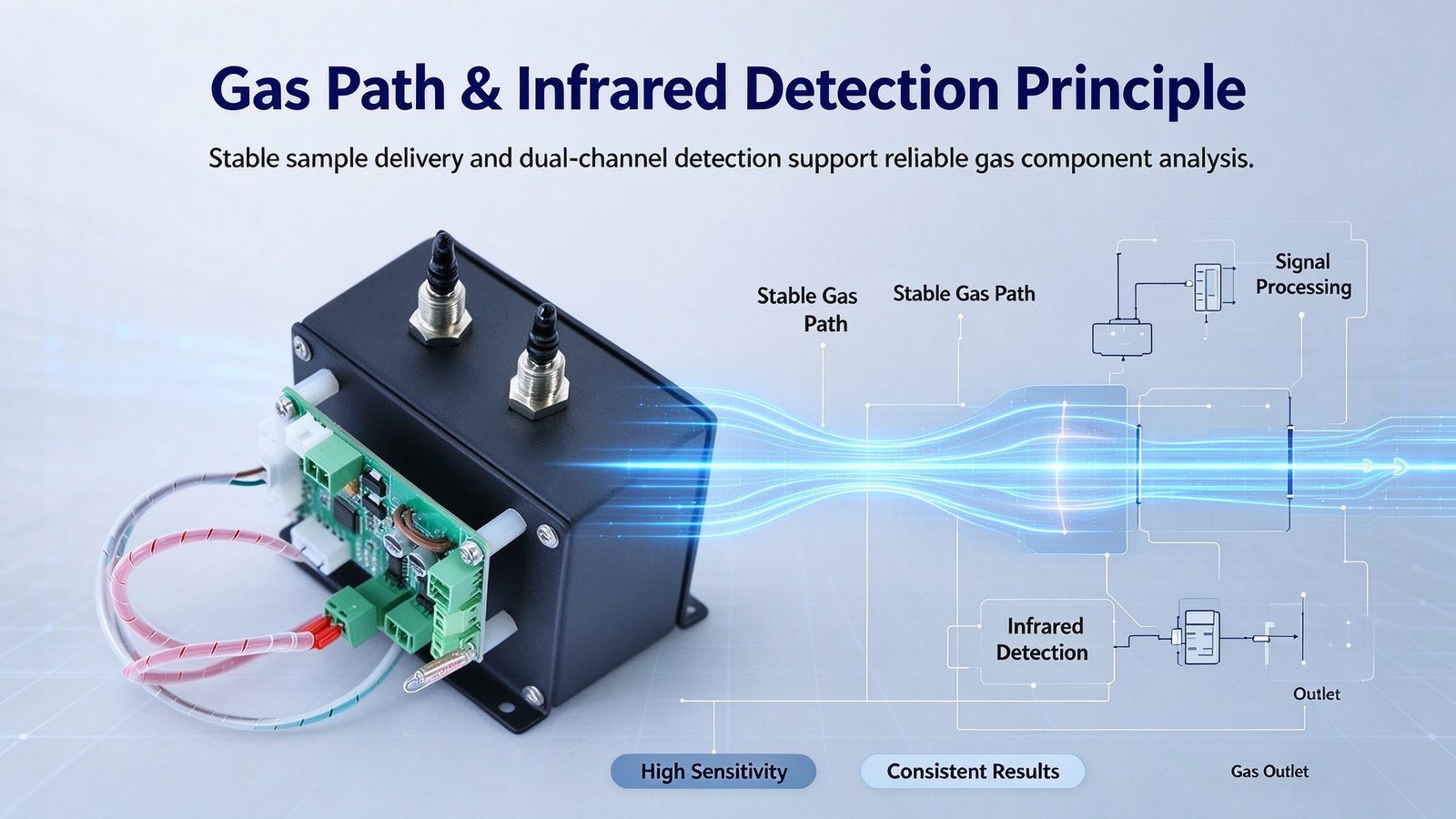

  • High-Stability Optical System

    Uses imported light sources and dual-channel detectors, combined with a dual-path design, to improve resolution and long-term stability.Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm

  • Precise Temperature Control and Corrosion-Resistant Structure

    Built-in PID temperature control technology ensures stable chamber temperature; key gas pathways are made of stainless steel gold-plated tubing for excellent corrosion resistance.Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm

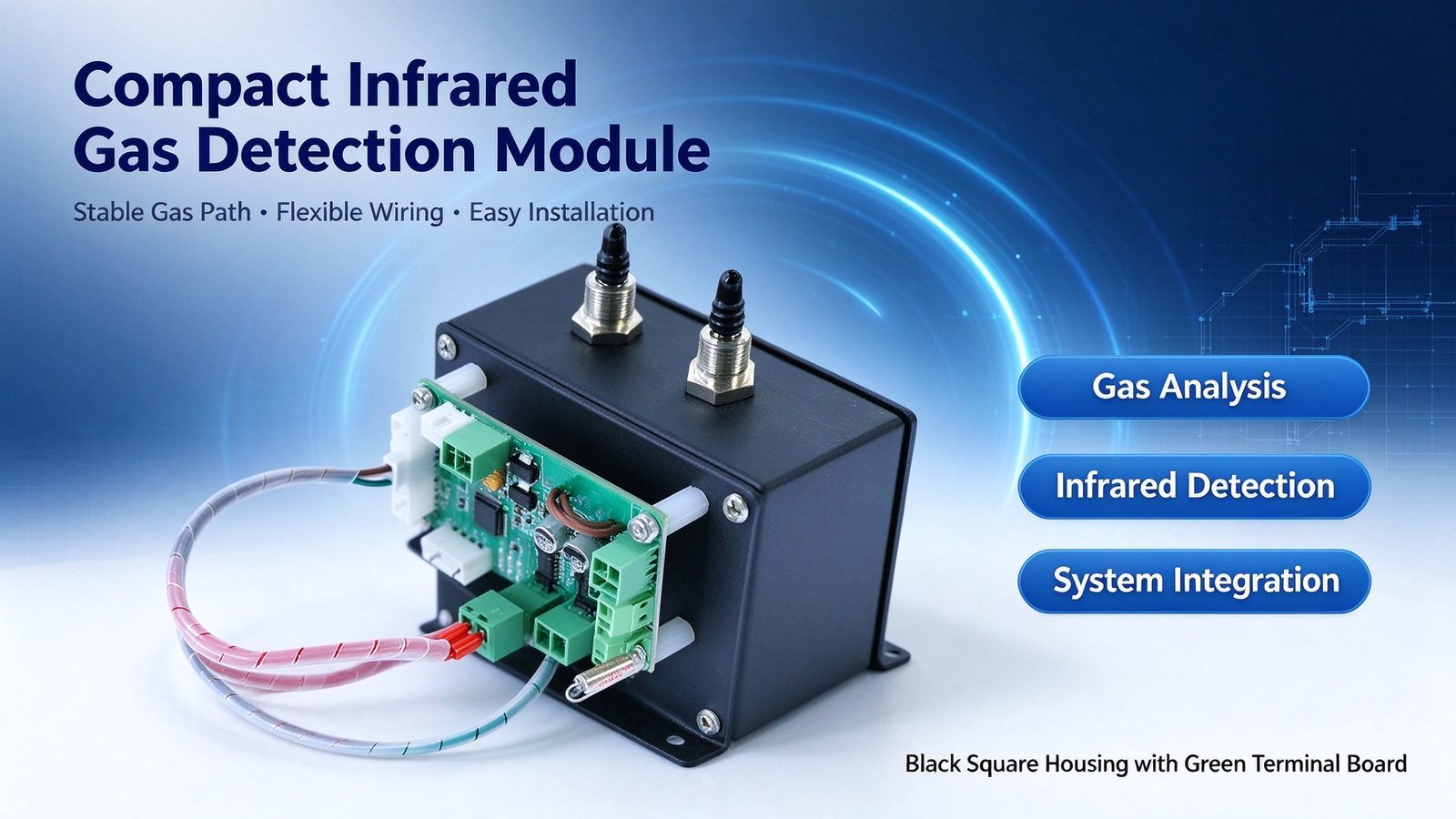

  • Compact and Easy to Integrate

    Compact design and easy installation, suitable for various integration scenarios.Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm

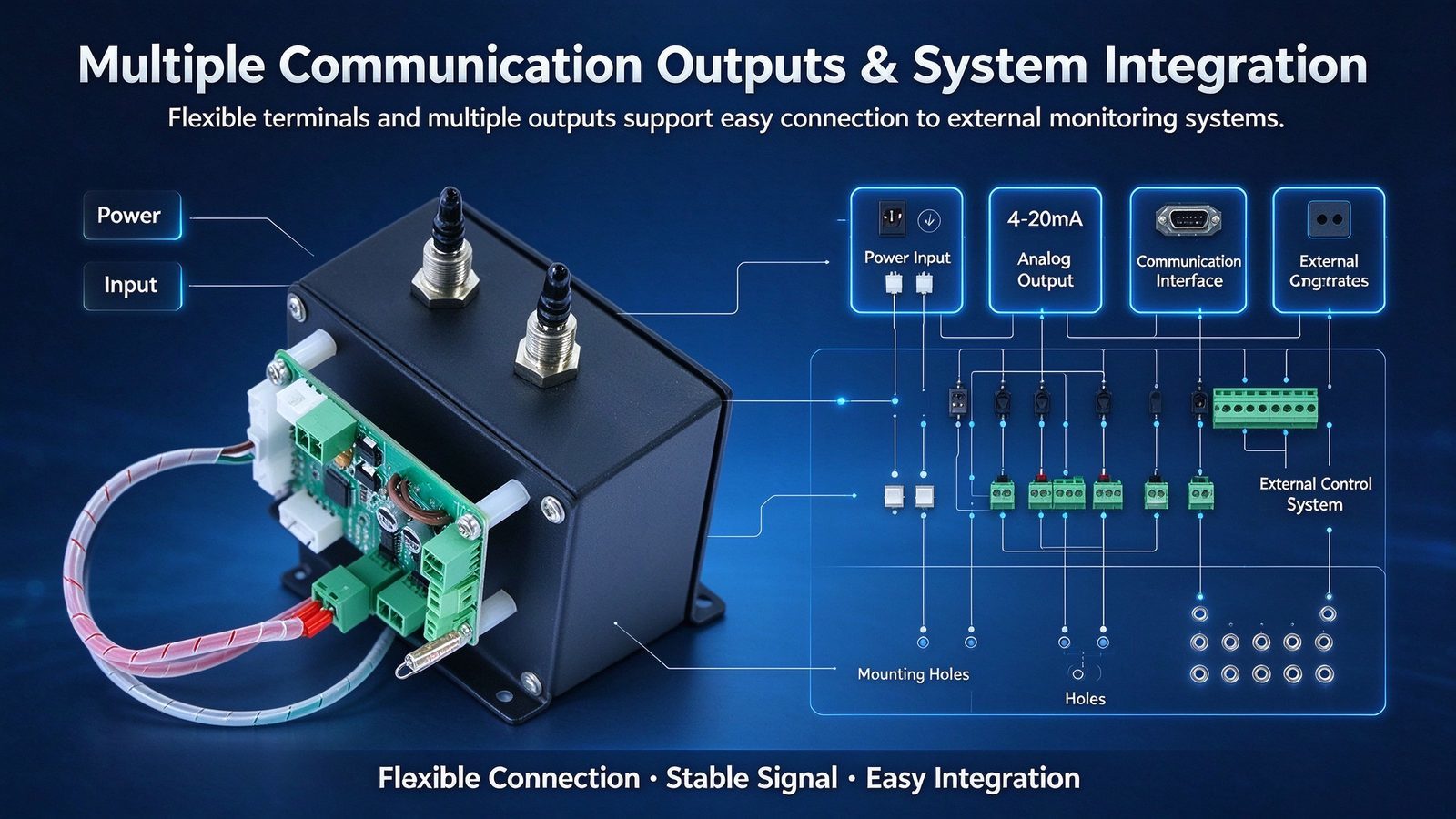

  • Multiple Communication Outputs Available

    Provides Madbus ASCIRTU and TTL digital interfaces, as well as 4-20mA analog output, for easy system integration.

    Infrared Multi Gas Detector Module For CO CO2 CH4 C3H8 SF6 SO2 With Sound Alarm
