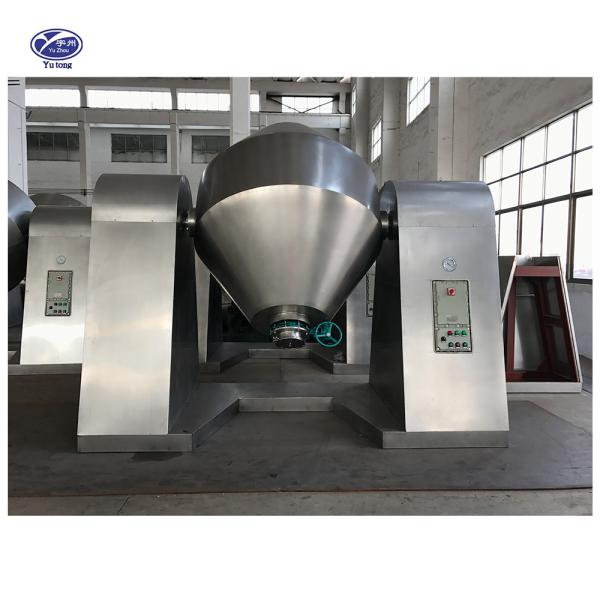

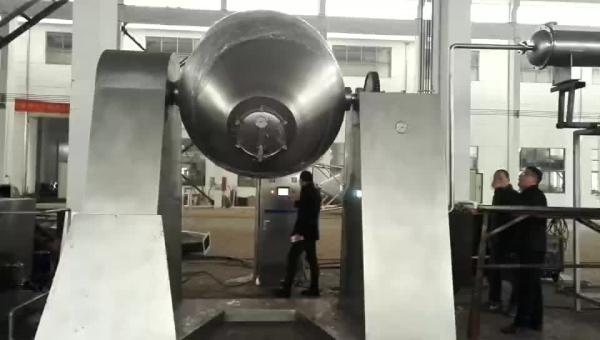

Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Yuzhou
Certification :
ISO14001 ISO9001
Packaging Details :
plywood case and make as u requirement
Supply Ability :
120 Set/Sets per Year Double cone Vacuum Dryer for synthetic drugs
Price :
$12,000.00/Sets 1-9 Sets
Type :
Vacuum Drying Equipment
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Voltage :
customize
Key Selling Points :
High Safety Level
Weight (KG) :
800
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Energy & Mining, Food & Beverage Shops
Core Components :
Gear, Motor, Gearbox
Heating source :
Steam hot water heat conduction oil
Description

Customize Food Processing Vacuum Drying Machine Food Beverage Shops Industrial Vacuum Drying

Raw material is feed into the machine from equipment inlet and move forward continuously along with the
horizontal direction under vibratory power.The hot air passes through fluidized-bed and exchange with raw
materials damp,then the wet air is dusted by cyclone separator and exhausted from air outlet,the dried material
is discharged through finished material outlet

The machine is suitable for vacuum mixing and drying of powder and granules raw materials of pharma-
ceutical industry, chemical industry, foodstuff industry,etc. Particularly it is suitable for raw materials that
have the following requirement:
1. Themal sensitive raw materilas that cannot be dried at high temperature.
2. Raw materilas that is easy to oxidize and dangerous.
3. Raw materilas that the solvent and poisonous gases are need to recover.
4. Raw materials that have special requirement for crystal shape.
5. Raw materials that have special requirement for the content of residual volatile.


Model
100
500
1000
1500
2000
5000
Volume (L)
100
500
1000
15000
2000
5000
Maximum Loading Volume (L)
40
200
400
600
800
2000
Maximum Loading Capacity (kg)
20
100
200
300
400
1000
Rotating Speed (rpm)
3~13
6
5
4
Motor Power (k w)
0.75
1.5
3
4
5.5
15
Floor Area (mm)
2160 × 800
2350× 800
2860 × 1300
3060 × 1300
3260 × 1400
4400 × 2500
Rotation Height (mm)
1750
2250
2800
2940
2990
4200
Design Pressure In Container (MPa)
-0.09 to 0.096
Interlayer Design Pressure (MPa)
≤ 0.3
Weight (kg)
800
1200
2800
3300
3600
8600

Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Jiangsu Yutong Drying Engineering Co., Ltd is a famous enterprises located in a famous town ofsouth of YANGTSE RIVER,JiaoxiTown, it is establish in 2000 with more than 21 year experience150 workers 16000 square meter .this year we increase the new factory scale. Yutong specialize in drying, mixing, granulating, evaporating, concentrating and separating equip-ment. We have undeniable engineer and more than 100 sets machine. Every year we can produce about600 sets machine and also can develop more than 30 types which are selling to all the country.Weemphasize science and technology innovation, early or late we cooperate with many famous colleges. Our company has developed so quickly that we have accumulated large amount of fundand technical knowledge. Our company has passed authentication of lSO9001 international quality system.Moreover,ourproduct has acquired “high quality recommendation certificate" issued by American international quality authentication committee and “East China excellent technical product certificate " issued byJiangsu Science and Technology Association.Our company emphasizes visualization and createbrand, so we have been evaluated as both“AAA" enterprise by Jiangsu international qualification company and “regard contract and keep faith" enterprise by inaustry ana conmerte ueparuhen. We have implemented a strict and complete quality system, which ensures each product meet quality requirement of customers. In addition,all of our product before shipping must do testing. Recently we export machine to Germany USA, UK Cyprus,Russia Uzbikistan Poland, Australia,Serbia, Ukraine, Mexico, Argentina, Peru, Brazil, Paraguay,Malaysia,Vietnam, Thailand, Philip-pines, Singapore,Taiwan, Hong Kong, Turkey, Saudi Arabia, Sultan of Oman, Kenya, Bangla-desh...
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Yuzhou 100-5000L Vacuum Drying Machine For Food Beverage
Q: Delivery period: A: Around 20-60 days, delivery perious will vary from different types of machin-ery, Q: Payment of terms: A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before shipment Q: Quality Warranty: A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user; We guarantee every set of our machine after shipment is have guarantee period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication. Q: Package of merchandise: A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container. Q: What is service when we place an order with you? A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial. Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion. Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance. Q: Which information do you require then you could choose model subse-quently? A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying?What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during dryingprocess? What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
