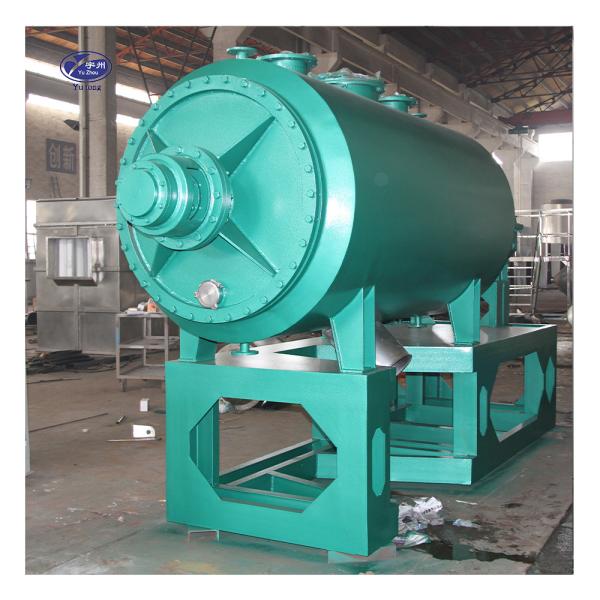

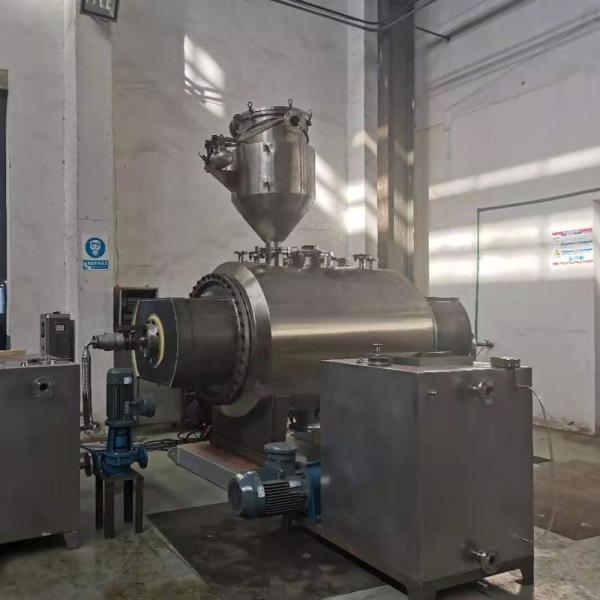

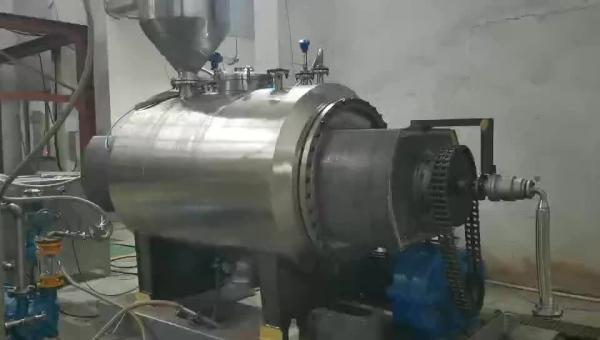

SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YuTong
Certification :
ISO14001 ISO9001
Packaging Details :
wooden packing . Special fumigation -free wooden material . Or according to customer requirement .
Supply Ability :
10 Set/Sets per Month Rotary Vacuum Rake Dryer horizontal vacuum harrow dryer
Price :
$16,750.00 - $220,000.00/Sets
Type :
Vacuum Drying Equipment
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Voltage :
customized
Key Selling Points :
Long Service Life
Weight (KG) :
1000
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Core Components :
Gear, Motor, Gearbox
Material :
SUS304, SUS316, SUS316L, SS304/SS316L
After-sales Service Provided :
Engineers available to service machinery overseas
Usage :
dry paste slurry material in chemical pharmaceutical
Description

Vacuum Drying Machine Chemicals Processing Rotary Vacuum Rake Dryer Horizontal Vacuum Harrow Dryer

Granule or pellet solid materials are fed into the fluidized bed dryer through the feeder.Filtrated clean air is
heated and charged onto the bottom of the fluidized bed to contact with the solid materials on the distributing
plate,where fluidization can be reached and the heat exchange between solid and air can be achieved.After
being dried,the products are discharged from the outlet.Waste gas is discharged from the top of the fluidized
bed,and powder materials are recovered by the cyclone separator or bag dust remover.


Model
Volume (L)
Working Volume (L)
Heating Area (m2)
Stirring Rate (rmp)
Power (kw)
Interlayer Pressure (Mpa)
Pressure in the Container (Mpa)
ZKG-500
500
300
3.2
8 to 18
4
0.3
-0.096 to 0.15
ZKG-750
750
450
4.4
8 to 18
5.5
0.3
-0.096 to 0.15
ZKG-1000
1000
600
5.1
8 to 18
5.5
0.3
-0.096 to 0.15
ZKG-1500
1500
900
6.3
8 to 18
7.5
0.3
-0.096 to 0.15
ZKG-2000
2000
1200
8.1
8 to 18
7.5
0.3
-0.096 to 0.15
ZKG-3000
3000
1800
10.6
8 to 18
11
0.3
-0.096 to 0.15
ZKG-4000
4000
2400
12.3
8 to 18
15
0.3
-0.096 to 0.15
ZKG-5000
5000
300
14.2
8 to 18
18.5
0.3
-0.096 to 0.15
ZKG-6000
6000
3600
16.5
8 to 18
22
0.3
-0.096 to 0.15
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
Jiangsu Yutong Drying Engineering Co., Ltd is a famous enterprises located in a famous town ofsouth of YANGTSE RIVER,JiaoxiTown, it is establish in 2000 with more than 21 year experience150 workers 16000 square meter .this year we increase the new factory scale. Yutong specialize in drying, mixing, granulating, evaporating, concentrating and separating equip-ment. We have undeniable engineer and more than 100 sets machine. Every year we can produce about600 sets machine and also can develop more than 30 types which are selling to all the country.Weemphasize science and technology innovation, early or late we cooperate with many famous colleges. Our company has developed so quickly that we have accumulated large amount of fundand technical knowledge. Our company has passed authentication of lSO9001 international quality system.Moreover,ourproduct has acquired “high quality recommendation certificate" issued by American international quality authentication committee and “East China excellent technical product certificate " issued byJiangsu Science and Technology Association.Our company emphasizes visualization and createbrand, so we have been evaluated as both“AAA" enterprise by Jiangsu international qualification company and “regard contract and keep faith" enterprise by inaustry ana conmerte ueparuhen. We have implemented a strict and complete quality system, which ensures each product meet quality requirement of customers. In addition,all of our product before shipping must do testing. Recently we export machine to Germany USA, UK Cyprus,Russia Uzbikistan Poland, Australia,Serbia, Ukraine, Mexico, Argentina, Peru, Brazil, Paraguay,Malaysia,Vietnam, Thailand, Philip-pines, Singapore,Taiwan, Hong Kong, Turkey, Saudi Arabia, Sultan of Oman, Kenya, Bangla-desh...
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
SUS316 Vacuum Drying Machine
Q: Delivery period: A: Around 20-60 days, delivery perious will vary from different types of machin-ery, Q: Payment of terms: A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before shipment Q: Quality Warranty: A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user; We guarantee every set of our machine after shipment is have guarantee period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication. Q: Package of merchandise: A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container. Q: What is service when we place an order with you? A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial. Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion. Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance. Q: Which information do you require then you could choose model subse-quently? A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying?What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during dryingprocess? What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
