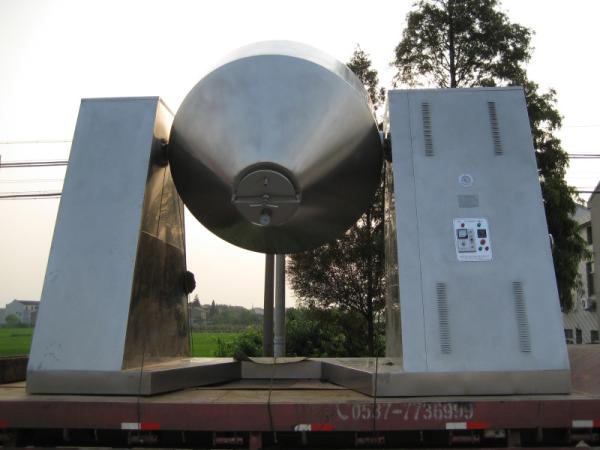

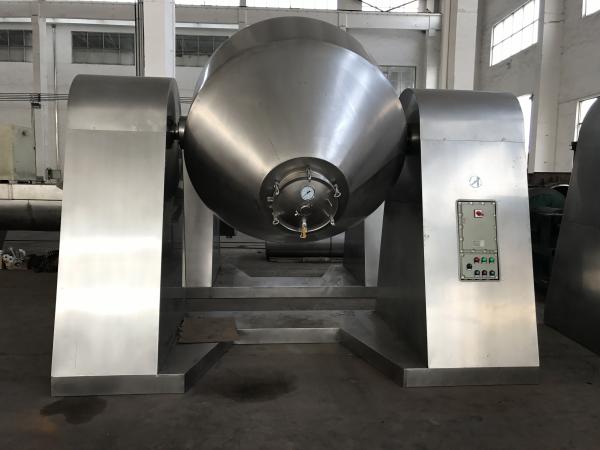

rotary vacuum dryer

Jiangsu Yutong Drying Engineering Co., Ltd is a famous enterprises located in a famous town ofsouth of YANGTSE RIVER,JiaoxiTown, it is establish in 2000 with more than 21 year experience150 workers 16000 square meter .this year we increase the new factory scale. Yutong specialize in drying, mixing, granulating, evaporating, concentrating and separating equip-ment. We have undeniable engineer and more than 100 sets machine. Every year we can produce about600 sets machine and also can develop more than 30 types which are selling to all the country.Weemphasize science and technology innovation, early or late we cooperate with many famous colleges. Our company has developed so quickly that we have accumulated large amount of fundand technical knowledge. Our company has passed authentication of lSO9001 international quality system.Moreover,ourproduct has acquired “high quality recommendation certificate" issued by American international quality authentication committee and “East China excellent technical product certificate " issued byJiangsu Science and Technology Association.Our company emphasizes visualization and createbrand, so we have been evaluated as both“AAA" enterprise by Jiangsu international qualification company and “regard contract and keep faith" enterprise by inaustry ana conmerte ueparuhen. We have implemented a strict and complete quality system, which ensures each product meet quality requirement of customers. In addition,all of our product before shipping must do testing. Recently we export machine to Germany USA, UK Cyprus,Russia Uzbikistan Poland, Australia,Serbia, Ukraine, Mexico, Argentina, Peru, Brazil, Paraguay,Malaysia,Vietnam, Thailand, Philip-pines, Singapore,Taiwan, Hong Kong, Turkey, Saudi Arabia, Sultan of Oman, Kenya, Bangla-desh...

Model	100	500	1000	1500	2000	5000
Volume (L)	100	500	1000	15000	2000	5000
Maximum Loading Volume (L)	40	200	400	600	800	2000
Maximum Loading Capacity (kg)	20	100	200	300	400	1000
Rotating Speed (rpm)	3~13					6	5	4
Motor Power (k w)	0.75	1.5	3	4	5.5	15
Floor Area (mm)	2160 × 800	2350× 800	2860 × 1300	3060 × 1300	3260 × 1400	4400 × 2500
Rotation Height (mm)	1750	2250	2800	2940	2990	4200
Design Pressure In Container (MPa)	-0.09 to 0.096
Interlayer Design Pressure (MPa)	≤ 0.3
Weight (kg)	800	1200	2800	3300	3600	8600

Q: Delivery period: A: Around 20-60 days, delivery perious will vary from different types of machin-ery, Q: Payment of terms: A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before shipment Q: Quality Warranty: A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user; We guarantee every set of our machine after shipment is have guarantee period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication. Q: Package of merchandise: A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container. Q: What is service when we place an order with you? A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial. Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion. Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance. Q: Which information do you require then you could choose model subse-quently? A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying?What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during dryingprocess? What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
