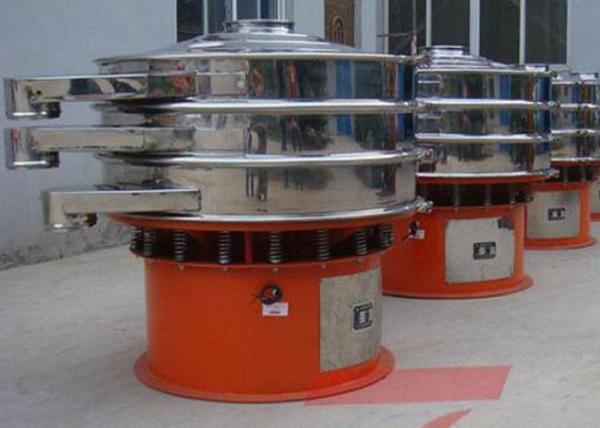

400V Gyratory Screen Separator , Circular Flour Sieve Machine
400V Gyratory Screen Separator , Circular Flour Sieve Machine
400V Gyratory Screen Separator , Circular Flour Sieve Machine
400V Gyratory Screen Separator , Circular Flour Sieve Machine
Specifications
Model Number :
RFT
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD1490-9900 per unit
Payment Terms :
Western Union, MoneyGram
Supply Ability :
10000units per year
Delivery Time :
7 working days
Packaging Details :
plywood
Name :
circular vibrating screen
Application :
power, granule , liquid
Layer :
1-4layers
Material :
stainless steel 304 or 316L
Application industries :
food, chemical, pharma, etc
Voltage :
110 220 380 400 415
Description

Circular Flour Sieve Machine , High Efficient Gyratory Screen Separator

Working principle of circular vibrating screen: RTF series circular vibrating screen is a single-axis circular motion inertial vibrating screen. When the circular vibrating screen is operated by inertial motor, the inertial force generated by the eccentric block forces the screen box to vibrate and is added to the screen surface of the sieve machine. The material produces a throwing motion, so that particles of a certain size are passed through the mesh to achieve a screening operation.

Since the vibrator is arranged above the center of gravity of the screen box, the elliptical long axis at both ends of the screen box is formed into a lower figure-shaped shape, and the upper end of the elliptical long axis of the feeding end is oriented toward the discharge direction, which is advantageous for quickly dispersing the material on the box machine. The upper end of the elliptical long axis of the discharge end is opposite to the discharge direction, which reduces the moving speed of the material, which is beneficial to the screening of the difficult-to-screen material, and the arc-shaped screen surface increases the effective area of the sieve machine, thereby increasing the productivity.

Model Layer Power(KW) Mesh diameter(mm) Dimension(mm)
RFT-400 1S 0.18 or 0.37 360 720x430x600
2S 720x430x690
720x430x780
3S
RFT-600 1S 0.37 or 0.55 560 600x600x740
2S 600x600x880
3S 600x600x1020
RFT-800 1S 0.55 or 0.75 760 800x800x840
2S 800x800x1000
3S 800x800x1160
RFT-1000 1S 0.75 or 1.1 930 970x970x950
2S 970x970x1110
3S 970x970x1270
RFT-1200 1S 1.1 or 1.75 1130 1170x1170x1090
2S 1170x1170x1250
3S 1170x1170x1410
RFT-1500 1S 1.5 or 2.2 1430 1470x1470x1110
2S 1470x1470x1270
3S 1470x1470x1430
