2 Layers Vibro Sieve Machine For Chemical Power SGS Listed
2 Layers Vibro Sieve Machine For Chemical Power SGS Listed
2 Layers Vibro Sieve Machine For Chemical Power SGS Listed
2 Layers Vibro Sieve Machine For Chemical Power SGS Listed
Specifications
Model Number :
RFT
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD1490-9900 per unit
Payment Terms :
Western Union, MoneyGram
Supply Ability :
10000units per year
Delivery Time :
7 working days

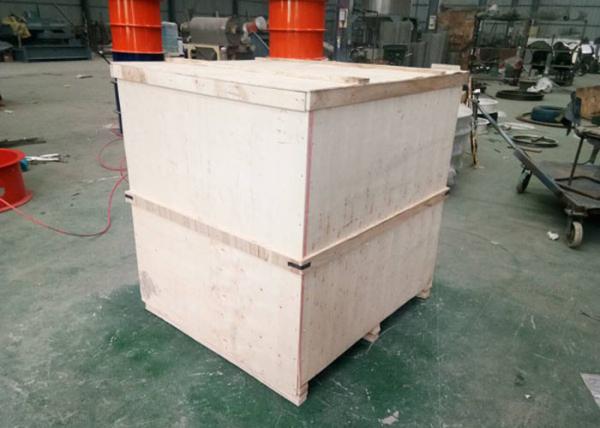

Packaging Details :
plywood
Name :
circular vibrating screen
Application :
power, granule , liquid
Layer :
1-4layers
Material :
stainless steel 304 or 316L
Application industries :
food, chemical, pharma, etc
Voltage :
110 220 380 400 415
Description

2 Layers Stainless Steel Vibro Sieve Machine Unique Screen Structure Design

Virbo Sieve Machine Function And Principle Circular Vibrating Screen - Working Principle The motor is rotated by a V-belt to cause the exciter eccentric mass to rotate at a high speed. The running eccentric block generates a large centrifugal force, which stimulates the screen box to generate a circular motion of a certain amplitude. The material on the screen is subjected to the impulse of the screen box on the inclined screen surface to generate a continuous throwing motion, and the process of the material meeting the screen surface The granules which are smaller than the sieve holes are sieved to achieve grading.

Virbo Sieve Machine Features
1) Unique screen structure design, convenient and quick replacement of the screen (5 to 10 minutes), in addition to this design
Various screens (nylon, special dragon, PP net) are allowed.
2) Screen machine design; compact and easy to assemble, one person can operate the screen machine.
3) Compared with other related brand manufacturers, it has a large screening area and high efficiency processing capacity.
4) The mother net fully supports the fine mesh, so the fine mesh can have a long life, and the use of the fine mesh consumables can be reduced, and the long-term production process can reduce the cost.

2 Layers Vibro Sieve Machine For Chemical Power SGS Listed

Model Layer Power(KW) Mesh diameter(mm) Dimension(mm)
RFT-400 1S 0.18 or 0.37 360 720x430x600
2S 720x430x690
720x430x780
3S
RFT-600 1S 0.37 or 0.55 560 600x600x740
2S 600x600x880
3S 600x600x1020
RFT-800 1S 0.55 or 0.75 760 800x800x840
2S 800x800x1000
3S 800x800x1160
RFT-1000 1S 0.75 or 1.1 930 970x970x950
2S 970x970x1110
3S 970x970x1270
RFT-1200 1S 1.1 or 1.75 1130 1170x1170x1090
2S 1170x1170x1250
3S 1170x1170x1410
RFT-1500 1S 1.5 or 2.2 1430 1470x1470x1110
2S 1470x1470x1270
3S 1470x1470x1430
