SUS304 Cylinder Revolving Granulator For Food Additive 380V 220V
SUS304 Cylinder Revolving Granulator For Food Additive 380V 220V
SUS304 Cylinder Revolving Granulator For Food Additive 380V 220V
SUS304 Cylinder Revolving Granulator For Food Additive 380V 220V
Specifications
Model Number :
ZL
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD2900-3890 per unit
Payment Terms :
Western Union, MoneyGram, D/A, L/C, D/P, T/T
Supply Ability :
1000units per year
Delivery Time :
25 working days
Packaging Details :
plywood or shipping container
material :
SUS304 SUS316L food grade GMP
standard :
GMP
product :
cylinder granules
cutter :
speed viable
color :
stainless steel
voltage :
380V 220V
granule/pellet size :
1-3mm
Description

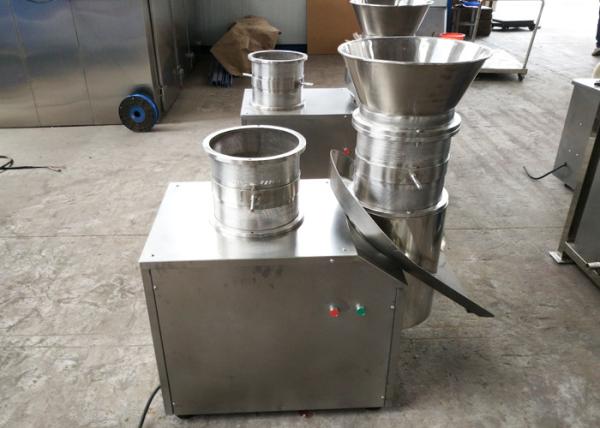

Cylinder Revolving Granulator For Food Additive 380V 220V Voltage High Output

Features:

The contact part of the revolving granulator and the material is made of stainless steel, the appearance is beautiful, the structure is reasonable, the granulation forming rate is high, the particles are beautiful, the material is automatically discharged, the particle damage caused by manual discharging is avoided, and the water flow operation is suitable.

​​Scope of Application
1. The granulator is a rocking action of a rotating drum. The wet powder material can be ground into particles by a wire sieve, and can also be widely used for pulverizing and becoming a ready-made granule. 2. In the case of chemicals, the powder is used as a wet-laid powder, and after drying, it is used to compress the tablet, and it is also possible to pulverize the block which is agglomerated during storage or agglomerated during chemical processing. It is used industrially to treat confectionery and sugar blends and malt milk, and other industries such as ceramics, plastics and the like into shaped pellets. 3. It is not suitable for semi-solid, fluid, slurry or wear.

Revolving granulator Characteristics
All parts contacted with raw material in this machine are made of stainless steel.Its apperance is beauty and taste and its structure is reasonable.Its efficiency is high and the granule is beauty.Its discharge is automatic.Therefore it can avoid damaged conditions caused manual.It is suitable for in line production too

Technical Parameter


Size of milling knife(mm)		 JLZ-80 JLZ-300 JZL-350
Diameter of granule(mm) Φ0.8-3.0
(it may be in accordance with the requirements of costomers)		 Φ.8-3.0
(it may be in accordance with the requirements of costomers)		 Φ.8-3.0
(it may be in accordance with the requirements of costomers)
Overall dimesions(mm) 450×300×450 880×640×1200 1300×800×1400
Power of motor
(kw)		 0.18 5.5 11
Weight(kg) 25 400 780

Production capcity(kg/h)
1-10		 100-300 250-600


Note:Becaise the rae materials exist in difference,the output in the table is for reference only.]
