Specifications
Model Number :
GHL150
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD4900-57890 per unit
Payment Terms :
Western Union, MoneyGram, D/A, L/C, D/P, T/T
Supply Ability :
1000units per year
Delivery Time :
25 working days
Packaging Details :
plywood or shipping container
material :
SUS304 SUS316L food grade GMP
standard :
GMP
product :
round granules
cutter :
speed viable
color :
stainless steel
voltage :
380V 220V
Description
High Speed Shear Granulator Ghl -150 For Pharmaceutical
China high speed shear granulator Working Principle

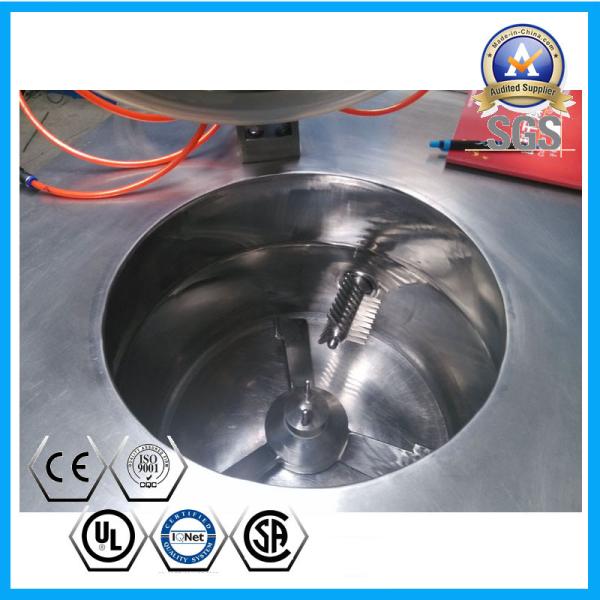

The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules .


China high speed shear granulator Characteristics
China high speed shear granulator adopts horizontal cylinder structure, its structure reasonable.
Air seal shaft for to drive. When washing , it can be changed to water.
Fluidized Granulation, the granule is around ball shape. Its ow ability is good.
Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.
The dry mixing time is 2 minutes and the granulating time is 1-4 minutes.
Compared to the traditional process , 4-5 times of ef ¬ciency is raised.
Dry mixing ,humid mixing and granulating are ¬nished in the same sealed container.
The whole operation has strict safe and protective measures.
Jacket type might be adopted on request.


China high speed shear granulator Technical Parameter
Type A B C×D E F
50 320 950 1250×800 970 1650
150 420 1000 1350×800 1050 1750
200 500 1100 1650×940 1450 2050
250 500 1160 1650×940 1400 2260
300 550 1200 1700×1000 1400 2310
400 670 1300 1860×1100 1550 2410
600 750 1500 2000×1230 1750 2610
Name Type
50 150 200 250 300 400 600
Volume L 50 150 200 250 300 400 600
output capacity kg/batch 15 50 80 100 130 200 280
admix speed r.p.m 200/400 180/270 180/270 180/270 140/220 106/155 80/120
admix power kw 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
cutting speed r.p.m 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
cutting power kw 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
compressed air consumption m3/min 0.6 0.9 0.9 0.9 1.1 1.5 1.8
weight kg 500 800 1000 1300 1800 2200 2600
