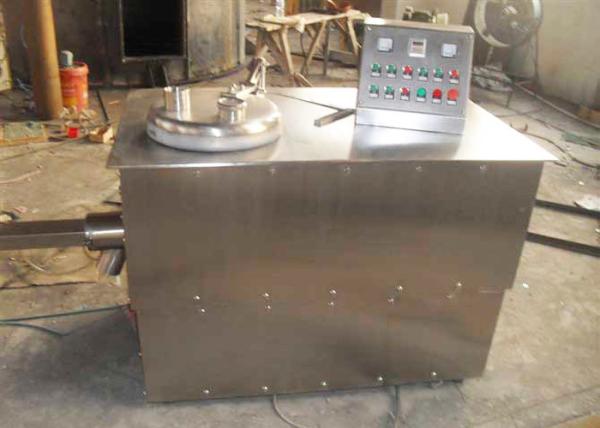

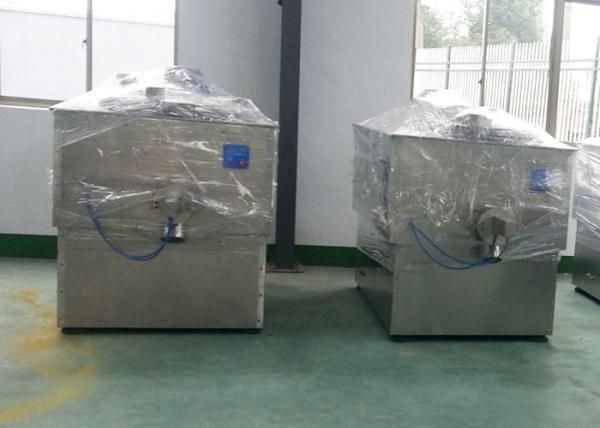

400V 415V Wet Rapid Mixer Granulator Horizontal Cylinder Structure
400V 415V Wet Rapid Mixer Granulator Horizontal Cylinder Structure
400V 415V Wet Rapid Mixer Granulator Horizontal Cylinder Structure
400V 415V Wet Rapid Mixer Granulator Horizontal Cylinder Structure
Specifications
Model Number :
GHL
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD1900-3890 per unit
Payment Terms :
Western Union, MoneyGram, D/A, L/C, D/P, T/T
Supply Ability :
1000units per year
Delivery Time :
25 working days
Packaging Details :
plywood or shipping container
material :
SUS304 SUS316L food grade GMP
standard :
GMP
product :
granules
cutter :
speed viable
color :
stainless steel
voltage :
380V 220V 400V 415V
granule size :
0.2mm- 2mm
principle :
rapid mix and cut
name :
wet rapid mix granulator
Description

0.2mm - 2mm Rapid Mixer Granulator 400V 415V High Output Capacity Easy To Operate

Description of GHL series wet rapid mix granulator

Wet rapid mix granulator principle:

The powder material and the binder are thoroughly mixed into a wet soft material by a low-mixing paddle in a cylindrical container; and then cut into uniform wet particles by a side-mounted high-speed pulverizing paddle.

Features:

The machine adopts horizontal cylinder structure; the structure is reasonable; the air-sealed drive shaft; can be switched into water during cleaning; fluidized granulation; granulation; granulated approximately spherical; good fluidity; 25% less than traditional process And drying agent; drying time is shortened; dry mixing is 2 minutes per batch; granulation is 1-4 minutes; efficacy is 4-5 times higher than traditional process; finished in the same closed container; dry mixing - wet mixing - granulation, The process is reduced and complies with GMP regulations; the entire operation has strict safety protection measures.

high speed mix granulator Technical Parameter

Type A B C×D E F
50 320 950 1250×800 970 1650
150 420 1000 1350×800 1050 1750
200 500 1100 1650×940 1450 2050
250 500 1160 1650×940 1400 2260
300 550 1200 1700×1000 1400 2310
400 670 1300 1860×1100 1550 2410
600 750 1500 2000×1230 1750 2610

Name Type
50 150 200 250 300 400 600
Volume L 50 150 200 250 300 400 600
output capacity kg/batch 15 50 80 100 130 200 280
admix speed r.p.m 200/400 180/270 180/270 180/270 140/220 106/155 80/120
admix power kw 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
cutting speed r.p.m 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
cutting power kw 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
compressed air consumption m3/min 0.6 0.9 0.9 0.9 1.1 1.5 1.8
weight kg 500 800 1000 1300 1800 2200 2600
