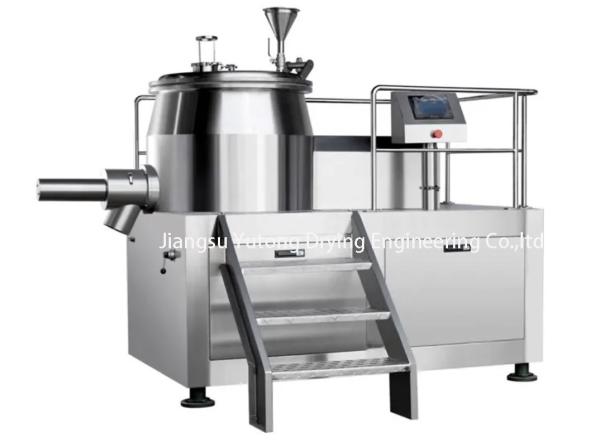

Pharmaceutical SUS304 Rapid Mixer Granulator GMP Standard
Pharmaceutical SUS304 Rapid Mixer Granulator GMP Standard
Specifications
Model Number :
GHL
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD1900-3890 per unit
Payment Terms :
Western Union, MoneyGram, D/A, L/C, D/P, T/T
Supply Ability :
1000units per year
Delivery Time :
25 working days
Packaging Details :
plywood or shipping container
material :
SUS304 SUS316L food grade GMP
standard :
GMP
product :
granules
cutter :
speed viable
color :
stainless steel
voltage :
380V 220V 400V 415V
granule size :
0.2mm- 2mm
principle :
rapid mix and cut
name :
rapid mix granulator/ high speed wet mix granulator
Description

Pharmaceutical Rapid Mixer Granulator Stainless Steel GMP Standard Low Noise

Overview

The repid wet mixing granulator is a relatively rapid solid pharmaceutical preparation equipment developed in recent years. The process combines the two-step mixing and granulation process, which saves time and meets GMP requirements and reduces cross-contamination. Improving efficiency is a quick and easy way to save and is very popular among users. In the current solid preparation process, the wet mixing granulator is the most used granulation equipment and is also the most economical. According to incomplete statistics in the pharmaceutical industry, it accounts for 70% of all solid preparation granulation equipment.

Generally speaking, the particles prepared by wet mixing granulation have irregular shape, uniform particle size distribution, better structure than other conventional granulation processes, strong compressibility, good solubility and moderate moisture permeability. At different granulating speeds, the particle size of the particles is between 12 and 100 mesh. The distribution range can be selected from different granulation speeds and stirring paddle speeds. (When the granulation speed is slow, the particle size becomes larger and the rotation speed is gradually increased. Accelerate and gradually reduce the particle size; when the stirring paddle speed is slow, the particle size is small, the rotation speed is gradually increased and the particle size is gradually increased, and the two functions are just the opposite).

Technical Parameter

Type A B C×D E F
50 320 950 1250×800 970 1650
150 420 1000 1350×800 1050 1750
200 500 1100 1650×940 1450 2050
250 500 1160 1650×940 1400 2260
300 550 1200 1700×1000 1400 2310
400 670 1300 1860×1100 1550 2410
600 750 1500 2000×1230 1750 2610

Name Type
50 150 200 250 300 400 600
Volume L 50 150 200 250 300 400 600
output capacity kg/batch 15 50 80 100 130 200 280
admix speed r.p.m 200/400 180/270 180/270 180/270 140/220 106/155 80/120
admix power kw 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
cutting speed r.p.m 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
cutting power kw 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
compressed air consumption m3/min 0.6 0.9 0.9 0.9 1.1 1.5 1.8
weight kg 500 800 1000 1300 1800 2200 2600
