96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
96 trays SUS304 Industrial Vacuum Dryer Pharmaceutical Use
Specifications
Brand Name :
YUTONG
Model Number :
FZG
Certification :
SGS, CE, ISO
Place of Origin :
China
MOQ :
1unit
Price :
USD10990-59000/unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000unit per year
Delivery Time :
35 working days
Packaging Details :
shipping container
Name :
vacuum tray dryer
Material :
SUS 304, SUS316L
Type :
static drying
tray number :
8-96
Heating source :
electricity, hot water or steam
Packing :
40HQ container
Purpose :
pharmaceutical drying
Description

Pharmaceutical Industrial Vacuum Dryer SUS 304 Energy Saving Long Service Life

Introduce of Yzg/fzg industrial vacuum dryer

Principle

The so-called vacuum drying, is the drying material in the vacuum conditions, heating and drying, if the use of vacuum pump to wet, the drying rate is accelerated.

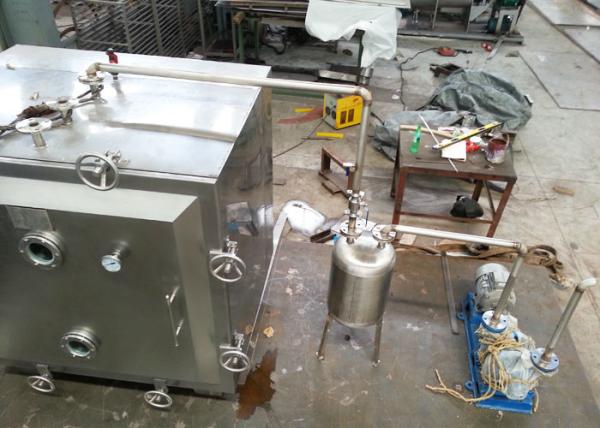

Note: If the condenser is used, the solvent in the material can be recycled through the condenser, such as the use of SK series water ring vacuum pump or ZSWJ series hydraulic injection vacuum pump unit, can not use the condenser, save investment.

Application

Industrial vacuum dryer suitable for low temperature drying of heat-sensitive materials with easy decomposition, polymerization or deterioration at high temperature, and is widely used in pharmaceutical, chemical, food and electronics industries, such as tablet drying, pills, API powder and other medicine powder drying.

Characteristics

The boiling point of the material solution under vacuum decreases, so that the heat transfer force of the evaporator increases, so the heat transfer area of the evaporator can be saved by certain heat transfer.

The heat source of evaporation operation can use low pressure steam or waste heat steam and hot water cycle.

Less heat loss of evaporator

Before drying can be disinfected, drying process without any impurities mixed, in line with the GMP requirements. belongs to the static vacuum dryer, so the shape of the dry material will not be damaged.

Techinical specification:

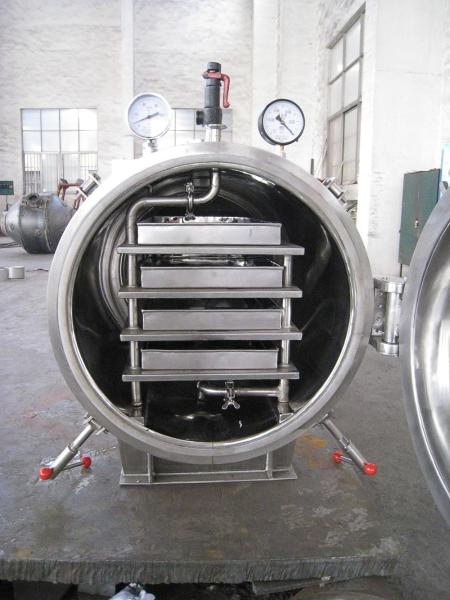

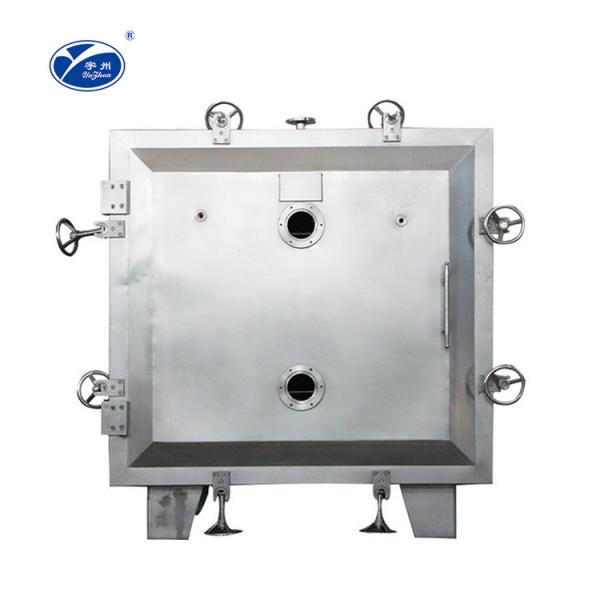

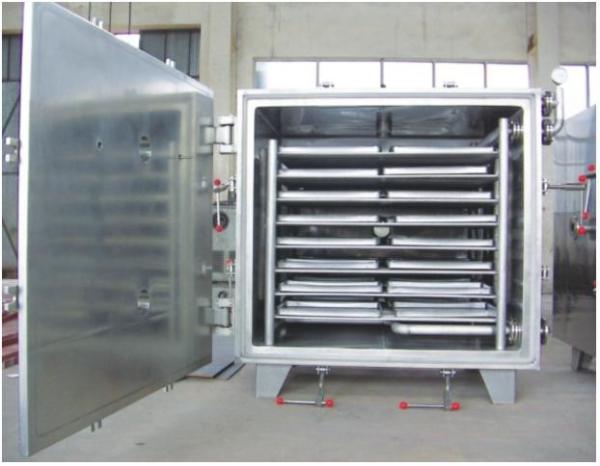

Model Name YZG-600 YZG-800 YZG-1000 YZG-1400A FZG-10 FZG-15 FZG-20
Inter size of drying chamber(mm) Φ600×976 Φ800×1247 Φ1000×1527 Φ1400×2054 1500×1060 ×1220 1500×1400 ×1220 1500×1800 ×1220
Outer size of drying chamber(mm) 1135×810 ×1024 1700×1045 ×1335 1693×1190 ×150 2386×1675 ×1920 1513×1924 ×1720 1513×1924 ×2060 1513×1924 ×2500
Layers of baking support 4 4 6 8 5 8 12
Interval of baking(mm) 82 82 102 102 122 122 122
Size of baking tray(mm) 310×600 ×45 520×410 ×45 520×410 ×45 460×640 ×45 460×640 ×45 460×640 ×45 460×640 ×45
Quantity of baking tray 4 8 12 32 20 32 48
working pressure inside the pipe of baking support(Mpa) ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784
Operation temperature of baking support, oC 35-150 35-150 35-150 35-150 35-150 35-150 35-150
Degree of vacuum inside the chamber when operation (Mpa) -0.09~0.096
Under the condition of -0.1Mpa and 110oC,evaporation rate of water(kg/m2.hr ) 7.2 7.2 7.2 7.2 7.2 7.2 7.2
When condenser is used,Model,and power of vacuum pump(kw) 2X-15A 2KW 2X-30A 3KW 2X-30A 3KW 2X-70A 5.5KW 2X-70A 5.5KW 2X-70A 5.5KW 2X-90A 2KW
When condenser is not used,Model,and power of vacuum pump(kw) SK-0.8 2.2KW SK-2.7 4KW SK-3 5.5KW SK-6 11KW SK-3 5.5KW SK-6 11KW SK-6 11KW
Weight of drying chamber(kg ) 250 600 800 1400 1400 2100 3200
