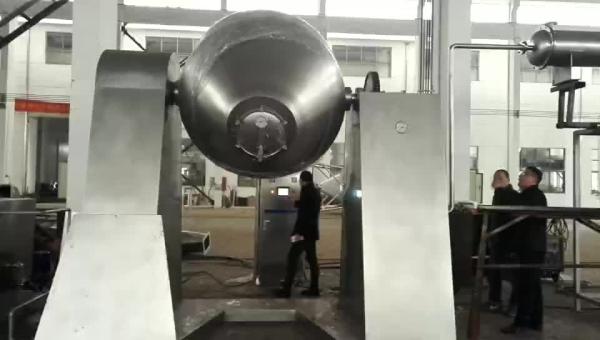

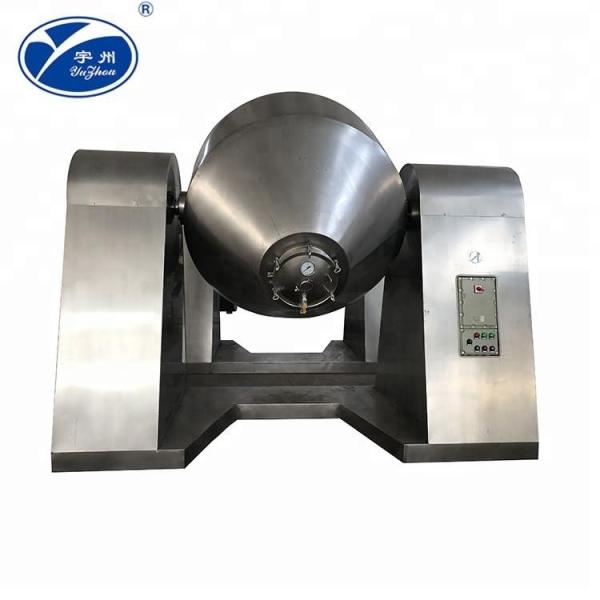

Stainless Steel Rotary Cone Vacuum Dryer , Conical Vacuum Dryer Fast Drying Speed

Description:

The double cone rotary vacuum drying system mainly consists of a double cone rotary vacuum dryer, a condenser, a dust collector, a vacuum pumping system, a heating system, a cooling system, and an electric control system.

When the pellets are dried, the temperature cannot be too high, so it is more suitable to heat the heating system with water. The cooling system and the water heating system can share one set of water pipes to reduce the investment. If the moisture content in the pellets is water, the condenser can be omitted in the equipment; if there is not much dust, the dust collector can be simply replaced with a buffer tank.

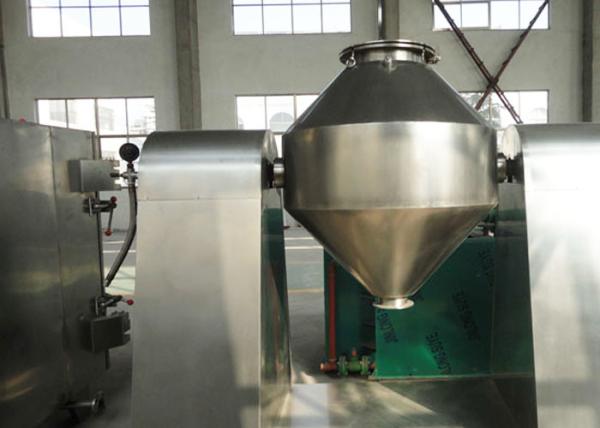

For the double cone rotary vacuum dryer body, the cone jacket is wrapped with an insulation layer to reduce the temperature of the room. The heated water in the jacket first transfers heat to the inner wall of the cylinder, and the inner wall transfers heat to the pellets in contact with the cylinder wall, and the generated wet steam is pumped away by the vacuum suction pipe. While the cone is rotating, the pellets are continuously tumbling in the cylinder to obtain sufficient mixing, and the material to be discharged is uniform in water and color.

Let heat source pass through the sealed Jacket The heat will be transmitted to raw material to be dried through inner shell,Under driving of power,the tank is rotated slowly and the raw material.

Characteristics
◎ When oil is used to heat,use automatic constant temperature control.It can be used for drying biology products and mine Its temperatu re of operation can be adjusted form 20—160^oC.
◎ Compared to ordinal d ryer,its heat efficiency will be 2 times higher.
◎ The heat is indirect So the raw material can not be polluted.
◎ It is in conformity with the requi rement of GMR It is easy in washing and maintenance.

Technical Parameter
