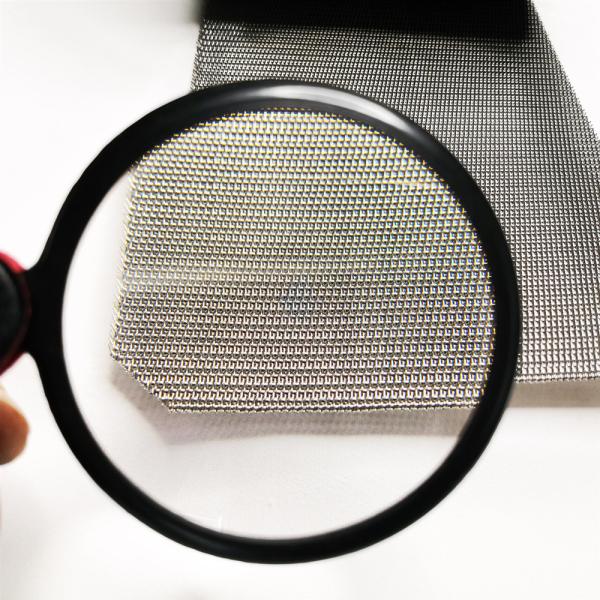

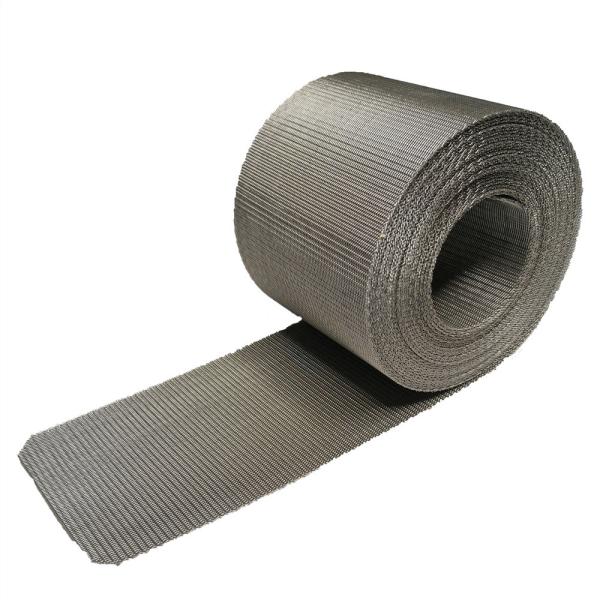

Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l
Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l
Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l
Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l
Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l
Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l
Specifications
Brand Name :
BJPFM
Model Number :
PFMA-SF
Certification :
SGS
Place of Origin :
Hebei China
MOQ :
1Meter
Price :
USD2.51-7.62/Meter
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000m/Month
Delivery Time :
5-8days after payment
Packaging Details :
woven bag and carton/wooden case
Product name :
Stainless steel 304 316 316Lreverse dutch weave wire filter mesh
Material :
Stainless steel 304 316 316L
Thickness :
80-1000um
Usage :
Liquid Filter
Type :
plain reverse dutch mesh
Filter rating :
85-99% Filter Mesh
Application :
Kinds Filtration Industry
Shape :
Customers' Request
Feature :
Corrosion Resistance,Excellent Filtration Performance,Durable,Security and food,microns ss Metal Powder Oil Filter
Description

Stainless steel 304 316 reverse dutch weave wire filter mesh

1. Stainless Steel Reverse Dutch Mesh Description


The reason why the dutch mesh is warp and weft threads have different diameters and different mesh numbers.

Reverse dutch weave wire mesh is a kind of stainless steel woven wire mesh. the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave, twilled dutch weaves.

Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l

2. Stainless Steel Reverse Dutch Mesh Features

1.High precision filtration, Good solvent resistance
2.Corrosion resistance, Chemical resistance, Good heat-melting resistance
3.No fluctuation of material flow, no product deformation, excellent quality stability
4.No waste product or waste material, and little material consumption occur
when the screen changer works.

3. Stainless Steel Reverse Dutch Mesh Specification

Material: SS304,SS316,SS316L ect.
Width: 97-400mm
Length: 10-30m/roll
Mesh count: 72-250mesh/inch
Wire diameter: 0.15-0.55mm

Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l

4. Stainless Steel Reverse Mesh Application


1. Contrast sheet nets are widely used in advanced plastic, chemical, chemical fiber and other processing machinery, and can also be used as conveyor belts in the conveyor industry.

2. Applicable to solution filtration of plastic extruder, wire drawing machine, cast film machine, coating machine, chemical fiber machine.

Reverse Dutch Weave Wire Industrial Filter Mesh Stainless Steel 304 316 316l
