AISI Stainless Steel Wire Mesh
AISI Stainless Steel Wire Mesh
AISI Stainless Steel Wire Mesh
AISI Stainless Steel Wire Mesh
AISI Stainless Steel Wire Mesh
AISI Stainless Steel Wire Mesh
AISI Stainless Steel Wire Mesh
AISI Stainless Steel Wire Mesh
Specifications
Brand Name :
BJPFM
Model Number :
PFM-SS Mesh
Certification :
SGS CE
Place of Origin :
China
MOQ :
1Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
30 Roll/Rolls per Day
Delivery Time :
5-8days after payment
Packaging Details :
1.High mesh count:Inside with paper tube, Then waterproof paper covered, Finally in a wooden case or pallet 2. Low mesh count: Packed in rolls, Then with waterproof and woven bags, Finally in wooden case 3. Sheet shape: Inside with plastic film and outside
Product name :
Food grade AISI SUS 304 316 316L 430 904L 150 120 180 220 micron screen stainless steel wire mesh
Material :
SS 304, 316, 316L, 310S, 410, 430, 904L, 2205, 2507,etc
Type :
Weave Wire Mesh
Weave Style :
Plain Weave
Features :
Acid-resisting, alkali-resisting etc.
Usage :
Printing, filter, space flight,oil, chemical industry
Mesh :
1-3500mesh
Length :
30m per roll or as required
Description

Food grade AISI SUS 304 316 316L 430 904L 150 120 180 220 microns screen stainless steel wire mesh

1. Stainless Steel Wire Mesh Screen Description

1.Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc

2.Wire Diameter: 0.015-2.8mm

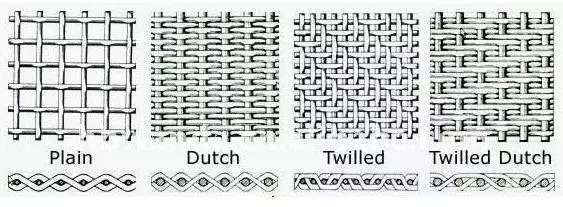

3.Mesh count:

Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave can be woven up to 3500mesh

AISI Stainless Steel Wire Mesh

2. Stainless Steel Wire Mesh Screen Features

1. Corrosion resistance

2. Anti-acid and alkali

3. Anti-high temperature

4. Good filter performance

5. Long using life

3. Stainless Steel Wire Mesh Screen Specification

Stainless Steel Wire Mesh
Mesh/inch Wire Diameter
(mm)		 Aperture
(mm)		 Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh
