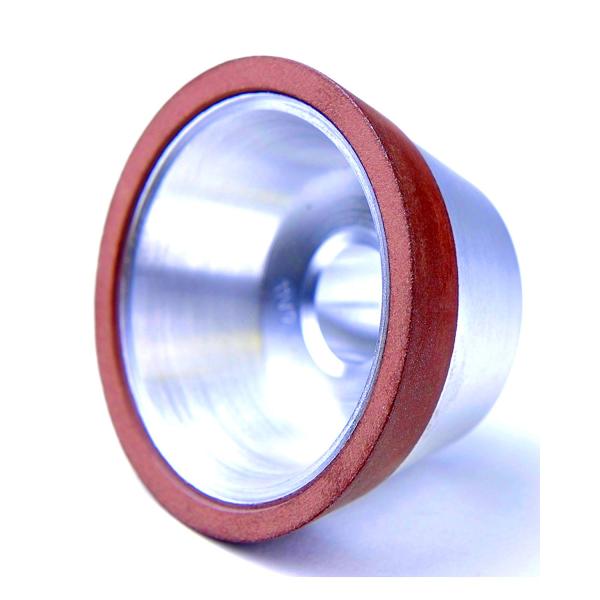

11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5 Bore 1.25
Specifications
Brand Name :
OEM
Model Number :
11V9
Certification :
MPA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
1000 pcs per month
Delivery Time :
15 days
Packaging Details :
Export standard
Bond :
Resin
Abrasive :
Diamond or CBN
Diamond grit :
120/140,140/170 or as customers'required
Hardness :
Superhard materials
Core :
Aluminum
Application :
for Tools Sharpening/ Tungsten Carbide
OEM :
accepted
Main market :
Asia, East Area,etc.
Description

1.11V9D5T45X3G15P Diamond Flaring Cup wheels; OD 5"; Bore 1.25"; Thickness 45mm; Grit 150; Resin Bond; Wet

  • Resin Bond; Wet Grinding Wheels
  • All diamond and CBN Wheels can be used for fluting carbides and high speed steels, grinding and re-sharpening tools, trimming and polishing all kinds of glasses, crystal, braun tuve housing, etc
  • Custom-design wheels, e.g. paper cutter grinding wheels, centerless grinding wheels, internal hole grinding wheels, bakelife board body wheels, etc are available.

2.

Product Name 11V9D5T45X3G15P Diamond Flaring Cup wheels; OD 5"; Bore 1.25"; Thickness 45mm; Grit 150; Resin Bond; Wet
Abrasive Diamond/CBN
Mateial Aluminium & Steel
Bond Resin
Size D:50/75/100/125/150mm
Grit 120/140,140/170 or as customers'required
Packing color Box,1pc/box,or as your request !
HS code 6804
Shapes 11V9 70 DEGREE
ODM&OEM Availiable
Sample Cost Depends on the design, please contact us to discuss further
Usage

widely used in the fields of tungsten carbide, ceramics, glsasses,, natural diamond, stones, etc.

Diamond and CBN grinding wheels are ideal for producing and re-sharpening tungsten carbide and HSS tools.

3. Specifciation

Diameter(D) Thickness (T) Width (X) w Hole(H)
50 20 2 6 20/32
75 30 3 10 20/32
100 35 3 10 20/32
125 40 3 10 20/32
150 50 3 10 20/32

They are particularly cost effective for grinding brittle and short-chip materials
e.g. ceramic, glass, tungsten carbide, titanium, alloyed steel, graphite, magnetic sintered and composite
materials.

11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5
