4B1 Resin Bond Diamond Grinding Wheel
4B1 Resin Bond Diamond Grinding Wheel
4B1 Resin Bond Diamond Grinding Wheel
4B1 Resin Bond Diamond Grinding Wheel
4B1 Resin Bond Diamond Grinding Wheel
4B1 Resin Bond Diamond Grinding Wheel
4B1 Resin Bond Diamond Grinding Wheel
4B1 Resin Bond Diamond Grinding Wheel
Specifications
Brand Name :
OEM
Model Number :
4B1
Certification :
MPA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
15 days
Packaging Details :
Export standard
Bond :
resin
Abrasive :
Diamond / CBN
Shape :
4B1
Core material :
Aluminum
Size :
100mm,125,150mm,etc.
Grit :
D64,D46,D91 or as customers'required
Description

1. 4B1 Resin Bond Diamond Grinding Wheel For Micro Drill Grooving Resin Diamond Grinding Wheel Bevelling Wheel

Resin bond Diamond & CBN grinding wheels are the most commonly used SuperAbrasive product currently consumed. Resin bond product, as the names describes, is a combination of resins and fillers pressed under heat and pressure that are easily dressed to straight, angle forms, and special radius forms.

4B1 Resin Bond Diamond Grinding Wheel

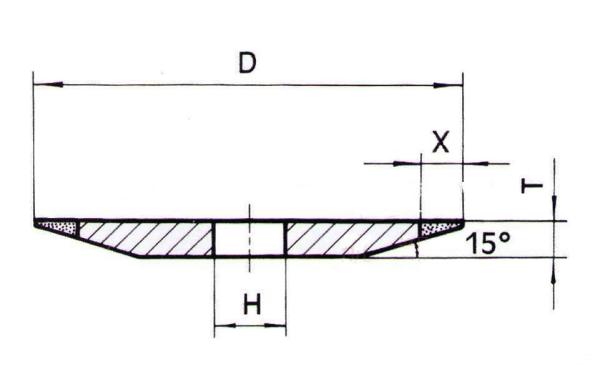

2. Specification:

Diameter(D) Height (T) Width(X) Hole(H)
75 8 5 10,20
80 8 5 10,20
100 10 5 20
125 10 8 32
150 10 8 32
200 10 8 32

3. Industries Used:

a. Carbide cutting tool industry,

b. Ceramics industry,

c. Glass industry,

d. Quartz Industry,

e. Thermal spray industry

f. Other specialty materials

4.Types of Grinding:

a. Surface grinding,

b.OD grinding,

c. Center-less grinding,

d. Tool grinding,

e. Fine grinding,

f. Double disc grinding,

g. Slot grinding

5. Work pieces Materials for diamond:

a. Ceramics

b. carbides, glass

c. stone,

d. Quartz,Silicon other specialty materials

e. HVOF coatings (including various types of Colmonoy material

4B1 Resin Bond Diamond Grinding Wheel
