Single Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic Loss
Single Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic Loss
Single Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic Loss
Single Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic Loss
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJL
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Certification :
ISO9001
Rate Flow :
364m ³ / h
Total Head :
58m
Liquid :
Chemical slurry
Material :
High-chrome alloy
Color :
Customized
MOQ :
1 Set
Description

Single Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic Loss​

Technical Parameter

Model

 Clear Water Performance

Supporting motor

Rotating speed

n

Flow

Q

Head

H

Shaft power

Pa

effectiveness

η
r/min (m³/h) m kw %

150ZJL-A35

980

 198 17.9 15.3 63.1

Y250M-6 V1

380V 37kw
332 13.2 17.5 68.1
364 12.1 18.0 66.8

730

 147 10.0 6.3 63.1

Y200L-8 V1

380V 15kw
247 7.3 7.2 68.1
271 6.7 7.4 66.8

590

 119 6.5 3.3 63.1

Y160L-10 V1

380V 11kw
200 4.8 3.8 68.1
219 4.4 3.9 66.8

100ZJL-A36

1480

 113 51.1 32.1 54.1

Y250M-4 V1

380V 55kw
185 42.2 39.4 58.9
239 34.1 45 .1 54.2

970

 76 22.9 9.6 54.1

Y200L1-6 V1

380V 18.5kw
124 18.9 11.8 58.9
160 15.3 13.5 54.2

80ZJL-A33

1480

 100 46.8 26.8 52.6

Y225M-4 V1

380V 45kw
141 41.6 31.0 56.5
157 36.5 33.2 52.3

970

 42 16.8 5.5 52.6

Y180L-6 V1

380V 15kw
94 12.4 7.1 56.5
122 8.4 8.7 52.3

65ZJL-A38

1470

 75 52.3 23.1 42.7

Y225S-4 V1

380V 37kw
97 45.8 26.4 45.8
120 43.4 28.8 45.6

970

 50 23.4 6.9 42.7

Y180L-6 V1

380V 15kw
65 20.5 7.9 45.8
80 19.4 8.6 45.6

65ZJL-A30

1470

 38 34.7 8.2 43.7

Y180M-4 V1

380V 18.5kw
58 31.9 9.7 51.9
98 26.0 13.4 51.7

960

 25 14.8 2.3 43.7

Y132M2-6 V1

380V 5.5kw
38 13.6 2.7 51.9
64 11.1 3.7 51.7

50ZJL-A40

1470

 31 58.3 16.5 29.9

Y200L-4 V1

380V 30kw
47 51 19.1 34.1
65 37.9 22.1 30.3

970

 21 25.4 4.9 29.9

Y160L-6 V1

380V 11kw
31 22.2 5.5 34.1
43 16.5 6.4 30.3

50ZJL-A36

1470

 36 42.7 15.7 31.2

Y200L-4 V1

380V 30kw
63 37.8 18.7 39.4
85 29.3 20.7 33.5

970

 24 19.1 4.7 31.2

Y160L-6 V1

380V 11kw
42 16.9 5.6 39.4
57 13.1 6.2 33.5

50ZJL-A20

1440

 17.1 10.7 1.4 34.9

Y112M-4 V1

380V 4kw
24.7 9.2 1.6 38.6
38.0 6.0 2.0 31.2

910

 10.8 4.3 0.4 34.9

Y90L-6 V1

380V 1.1kw
15.6 3.7 0.4 38.6
24.0 2.4 0.5 31.2

40ZJL-A35

1470

 23.7 42.9 12.8 27.3

Y180L-4 V1

380V 22kw
42.3 34.3 13.7 33.8
47.6 30.5 14.1 28.1

970

 15.8 19.2 3.8 27.3

Y160M-6 V1

380V 7.5kw
28.3 15.3 4.1 33.8
31.8 13.6 4.2 28.1

40ZJL-A25

1440

 10.1 21.5 2.3 26.1

Y132S-4 V1

380V 5.5kw
18.4 19.0 2.6 36.6
22.9 16.8 2.8 37.6

910

 6.6 9.2 0.6 26.1

Y90L-6 V1

380V 1.1kw
12 8.1 0.7 36.6
14.9 7.2 0.7 37.6

40ZJL-A21

1440

 9.5 17.0 1.6 27.9

Y112M-4 V1

380V 4.0kw
20.3 15.3 2.0 42.4
25.9 14.1 2.2 44.6

910

 6.0 6.8 0.4 27.9

Y90L-6 V1

380V 1.1kw
12.8 6.1 0.5 42.4
16.4 5.6 0.6 44.6

Standards

Design standard : ISO519

Dimension standard : ISO2858

Flange standards : ISO7005-1 PN10,PN16, ASME B16.5 class 125, ASME B16.5 class 150, GB/T9119-2010

Painting standard : EN ISO12944

Noise standard : ISO4871

ASME B16.5 class 150

Balance standards : ISO1940 G6.3, ISO1940 G6.4

Testing standard : ISO9906 Grade2

Operating Data


Capacity: 6 ~ 364m³/h
Head: 4 ~ 60 m
Maximal Efficiency: 70%
NPSH: 1.4m~3.5m
Diameter: 200mm~470mm
Allowed Max Particle Size: 20 mm
Operating pressure: 1.6MPa
RPM: 1450 r/min

Application Ranges

a. High efficiency centrifugal chemical pump is widely applicable for chemical industry.
b. Widely applicable for mining.
c. Widely applicable for coal preperation.
d. Widely applicable for mineral process.
e. Widely applicable for construction site.

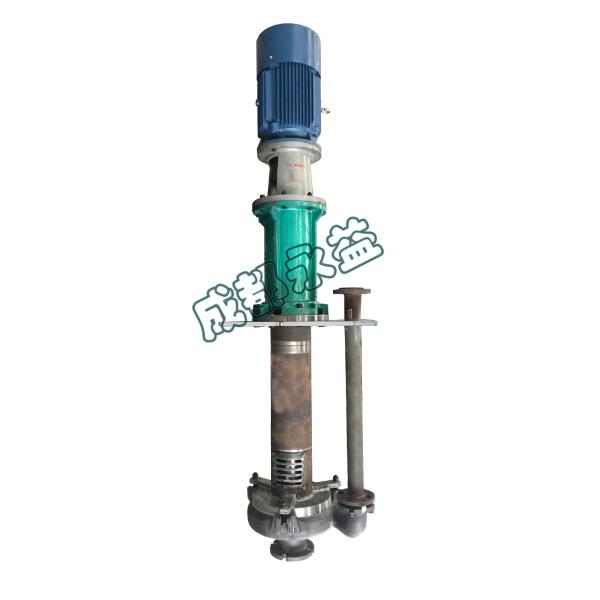

Product Picture

Single Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic LossSingle Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic Loss

FAQ

Single Stage Centrifugal Vertical Slurry Pump Anti - Corrosive Low Hydraulic Loss
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer established in 1995, professional manufacturer of chemical-process pump and energy-saving mixer with more than 20-year experience.
2. Q: What's your delivery time?
A: The batch order will be shipped within 40 working days after receiving deposit.
3. Q: What's your warranty service policy?
A: 12 Months for all products, and some products warranty is 24months.
4. Q: What information I need to offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______ Temperature: _________
Capacity/Flow: ________m3/h Head: _________m
Voltage: ____________V Frequency: _________Hz
Power:_____________KW
5. Q: What is your minimum quantity?
A: One set is also welcomed to us.
