High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure
High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure
High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure
High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure
Specifications
Brand Name :
Chengdu Yongyi
Model Number :
ZJL
Place of Origin :
Sichuan, China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300 sets per month
Delivery Time :
25 working days after receiveing advance payment
Packaging Details :
Free Fumigation Export Wooden Box
Certification :
ISO9001
Flow :
6 ~ 364m ³ / h
Head :
6～58m
Material :
Corrosive Resistance Material
Color :
Customized
Flange :
Customized
Application :
Sewage
Voltage :
380V/660V/1140V
Structure :
Single-stage Pump
Description

High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure

Product Description

ZJL-series vertical slurry pumps are single stage single-suction centrifugal slurry pump. ZJL-series pumps are in accordance with theory of two-phase fluids and they are designed according to the principle of minimizing the total loss. Geometrical shape of its flow passage components is suitable for flow condition of medium. In this way, the hydraulic loss among parts where eddy and impacting occur is reduced so that abrasion of flow passage components is reduced; water efficiency is increased; running noises and vibration are reduced. High-chrome alloy, which has high wear resistance, corrosion resistance and impact resistance, is used for flow passage components to improve service life.

Technical Parameter

Model

 Clear Water Performance

Supporting motor

Rotating speed

n

Flow

Q

Head

H

Shaft power

Pa

effectiveness

η
r/min (m³/h) m kw %

150ZJL-A35

980

 198 17.9 15.3 63.1

Y250M-6 V1

380V 37kw
332 13.2 17.5 68.1
364 12.1 18.0 66.8

730

 147 10.0 6.3 63.1

Y200L-8 V1

380V 15kw
247 7.3 7.2 68.1
271 6.7 7.4 66.8

590

 119 6.5 3.3 63.1

Y160L-10 V1

380V 11kw
200 4.8 3.8 68.1
219 4.4 3.9 66.8

100ZJL-A36

1480

 113 51.1 32.1 54.1

Y250M-4 V1

380V 55kw
185 42.2 39.4 58.9
239 34.1 45 .1 54.2

970

 76 22.9 9.6 54.1

Y200L1-6 V1

380V 18.5kw
124 18.9 11.8 58.9
160 15.3 13.5 54.2

80ZJL-A33

1480

 100 46.8 26.8 52.6

Y225M-4 V1

380V 45kw
141 41.6 31.0 56.5
157 36.5 33.2 52.3

970

 42 16.8 5.5 52.6

Y180L-6 V1

380V 15kw
94 12.4 7.1 56.5
122 8.4 8.7 52.3

65ZJL-A38

1470

 75 52.3 23.1 42.7

Y225S-4 V1

380V 37kw
97 45.8 26.4 45.8
120 43.4 28.8 45.6

970

 50 23.4 6.9 42.7

Y180L-6 V1

380V 15kw
65 20.5 7.9 45.8
80 19.4 8.6 45.6

65ZJL-A30

1470

 38 34.7 8.2 43.7

Y180M-4 V1

380V 18.5kw
58 31.9 9.7 51.9
98 26.0 13.4 51.7

960

 25 14.8 2.3 43.7

Y132M2-6 V1

380V 5.5kw
38 13.6 2.7 51.9
64 11.1 3.7 51.7

50ZJL-A40

1470

 31 58.3 16.5 29.9

Y200L-4 V1

380V 30kw
47 51 19.1 34.1
65 37.9 22.1 30.3

970

 21 25.4 4.9 29.9

Y160L-6 V1

380V 11kw
31 22.2 5.5 34.1
43 16.5 6.4 30.3

50ZJL-A36

1470

 36 42.7 15.7 31.2

Y200L-4 V1

380V 30kw
63 37.8 18.7 39.4
85 29.3 20.7 33.5

970

 24 19.1 4.7 31.2

Y160L-6 V1

380V 11kw
42 16.9 5.6 39.4
57 13.1 6.2 33.5

50ZJL-A20

1440

 17.1 10.7 1.4 34.9

Y112M-4 V1

380V 4kw
24.7 9.2 1.6 38.6
38.0 6.0 2.0 31.2

910

 10.8 4.3 0.4 34.9

Y90L-6 V1

380V 1.1kw
15.6 3.7 0.4 38.6
24.0 2.4 0.5 31.2

40ZJL-A35

1470

 23.7 42.9 12.8 27.3

Y180L-4 V1

380V 22kw
42.3 34.3 13.7 33.8
47.6 30.5 14.1 28.1

970

 15.8 19.2 3.8 27.3

Y160M-6 V1

380V 7.5kw
28.3 15.3 4.1 33.8
31.8 13.6 4.2 28.1

40ZJL-A25

1440

 10.1 21.5 2.3 26.1

Y132S-4 V1

380V 5.5kw
18.4 19.0 2.6 36.6
22.9 16.8 2.8 37.6

910

 6.6 9.2 0.6 26.1

Y90L-6 V1

380V 1.1kw
12 8.1 0.7 36.6
14.9 7.2 0.7 37.6

40ZJL-A21

1440

 9.5 17.0 1.6 27.9

Y112M-4 V1

380V 4.0kw
20.3 15.3 2.0 42.4
25.9 14.1 2.2 44.6

910

 6.0 6.8 0.4 27.9

Y90L-6 V1

380V 1.1kw
12.8 6.1 0.5 42.4
16.4 5.6 0.6 44.6

Excellent Features


1. No leakage
Suitable for handling flammable, explosive, toxic, corrosive and expensive fluids hermetically.
2. No Shaft Seal
Suitable for handling high pressure system, high or lower temperature fluids, high melting point fluids.
3. No External Lubrication
Self-lubrication design, no lubrication required for motor bearings and no lubrication levels to check or maintain.
4. Compact design
Small, compact and self contained, installation costs are reduced with minimal foundation requirements.
5. Low Noise & Vibration
Totally enclosed with neither motor fans nor exposed bearings.

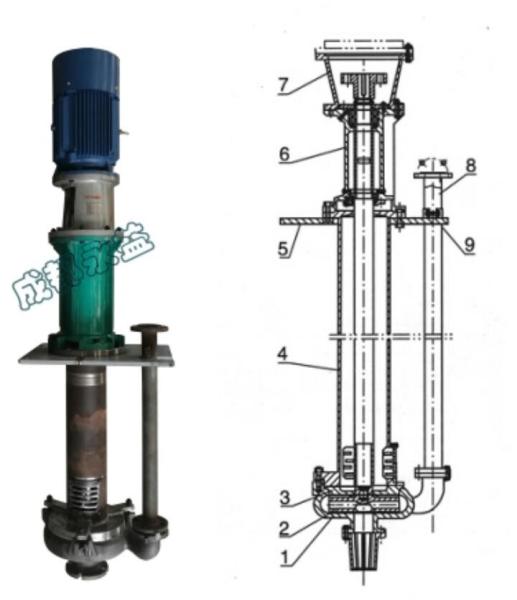

Installation Dimension

High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure

Application

In mining, metallurgy, power, coal, chemicals, building materials and other industries, ZJL-series vertical slurry pumps can be used to transfer abrasive and corrosive slurry containing solid particles (maximum density of solid-liquid mixture: for mortar, 45%; for pulp, 60%).

High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure

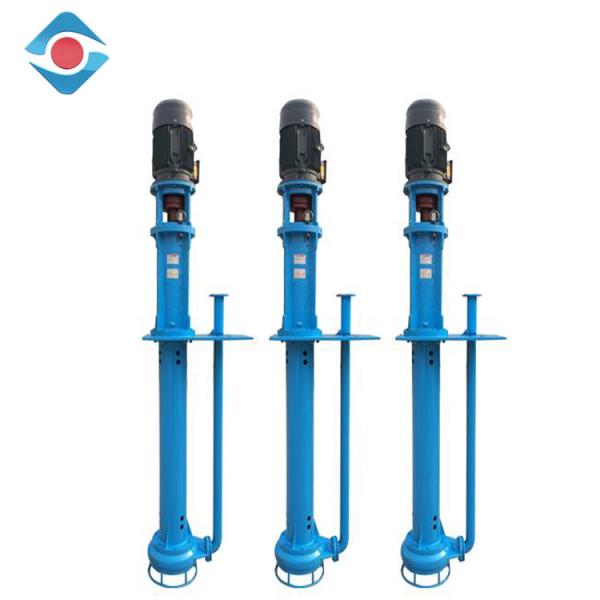

Product Picture

High Capacity Vertical Sump Pump , Durable Centrifugal Slurry Pump High Pressure
