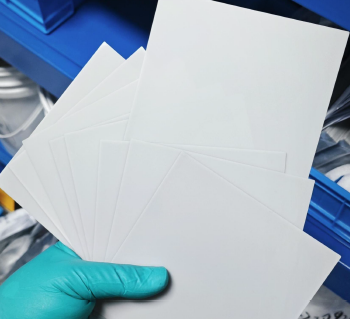

Polished Aluminum Nitride Substrate
Polished Aluminum Nitride Substrate
Polished Aluminum Nitride Substrate
Polished Aluminum Nitride Substrate
Polished Aluminum Nitride Substrate
Polished Aluminum Nitride Substrate
Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
10USD/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS
Delivery Time :
5-8 work days
Packaging Details :
Strong wooden box for Global shipping
Description

Polished Aluminum Nitride Substrate

Features: 1. The surface undergoes high-precision grinding, resulting in high surface flatness, good smoothness, and low roughness.

Dimensions: The standard size of the ground aluminum nitride substrate is 120mm x 120mm x 1mm, but customization is also available upon request.

Applications: High-precision grinding processes for hard drive heads, solar cells, LED packaging, mechanical parts, and optical equipment.

Features: It has high mechanical strength, high heat resistance, and low cost.

Dimensions: The standard size of the sintered aluminum nitride substrate is 120mm x 120mm x 1mm, and it can also be customized according to customer requirements.

Applications: High-temperature tools, molten metal containers, solar cells, and other fields.

Item Unit NC-170 NC-200 NC-230
Color - Gray/Beige Gray/Beige Gray/Beige
Thermal conductivity [@20°℃]w/m·k
≥
170
≥
195
≥
225
Bending Strength MPa >450 >380 >350
Surface Roughness μm <0.5 <0.8 <0.85
Volume Density g/cm²
≥
3.3
≥
3.3
≥
3.3
Warpage %0 <2.5 <2.5 <2.5
Coefficient of Linear Expansion [RT-300℃]10-6mm/℃ 4.6 4.6 4.6
Volume Resistance 20℃
Ω
=1V/A·cm·cm
 >10^14 >10^13 >10^13
Dielectric constant [@1MHz] 9.0 8.7 8.5
Dielectric Loss [@1MHz]
4.6*10^-4
4.6*10^-4
4.6*10^-4
Dielectric Strength (KV/mm)
≥
15
≥
15
≥
15

Polished Aluminum Nitride Substrate
