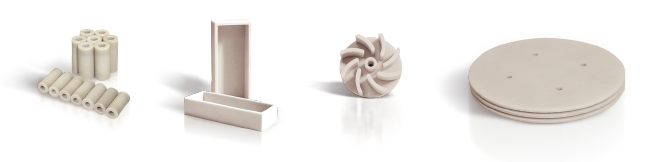

Aluminum Nitride Structural Parts
Aluminum Nitride Structural Parts
Aluminum Nitride Structural Parts
Aluminum Nitride Structural Parts
Aluminum Nitride Structural Parts
Aluminum Nitride Structural Parts
Aluminum Nitride Structural Parts
Aluminum Nitride Structural Parts
Specifications
Brand Name :
ZG
Model Number :
MS
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
10USD/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS
Delivery Time :
5-8 work days
Packaging Details :
Strong wooden box for Global shipping
Description

We uses tape casting process to produce substrates.We developed different subdivisions in order to meet different metallization requests for different applications.

1. The source quality is controlled. Froe R & D and production of raw materials to the finished ceramic products, they are self-developed and
produced.
2. Standardthermal conductivity2 175W/mk, high thermal conductivity2 200W/mk, Ultra high thermal conductivity≥230W/m-k.
3. We can provide grinding type, as-fired type, high bending tyoe, high thermal conductivity tpye, polishing type, laser scribing type and other type of substrates.
4. Varieties of matallizations: DPC, DBC, TPC, AMB, Thick Film, Thin Film.
5. Ultra thin: 0.10mm.

Characteristic:

Strength
High reliability
High insulation
Abrasionresistance
Corrosion resistant
High temperature resistance

Technical Specifications Unit Parameter
Apperance Color Gray-white
Thermal Conductivity (W/m·K) ≥170
Flexural Strength (MPa) ≥350
Bulk Density (g/cm²) ≥3.3
Warping (~/25 (length) 0.002-0.005
Surface Roughness Ra (µm) 0.8
Coefficient of Thermal Expansion [20°C to 300°C] (10*/°C) 4.6
Volume Resistivity (Ω·cm) 1.5×10¹⁴
Dielectric Strength (KV/mm) ≥15
Dielectric Constant [1MHz, 25°C] 9
Dielectric Loss [1MHz, 25°C] 4.6×10⁻⁴
