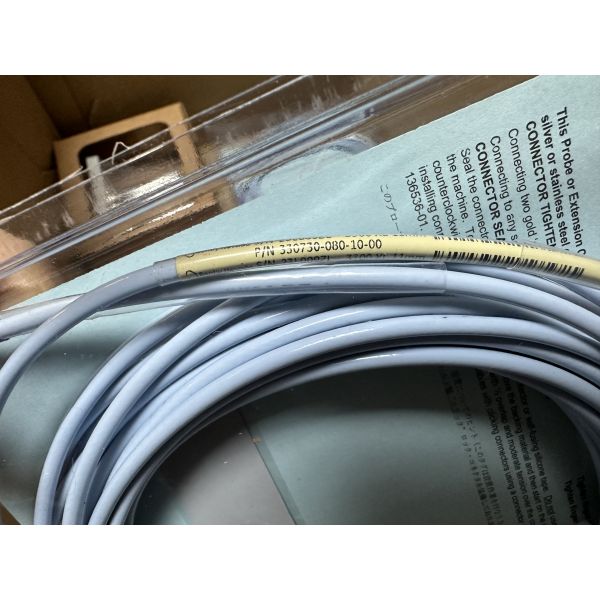

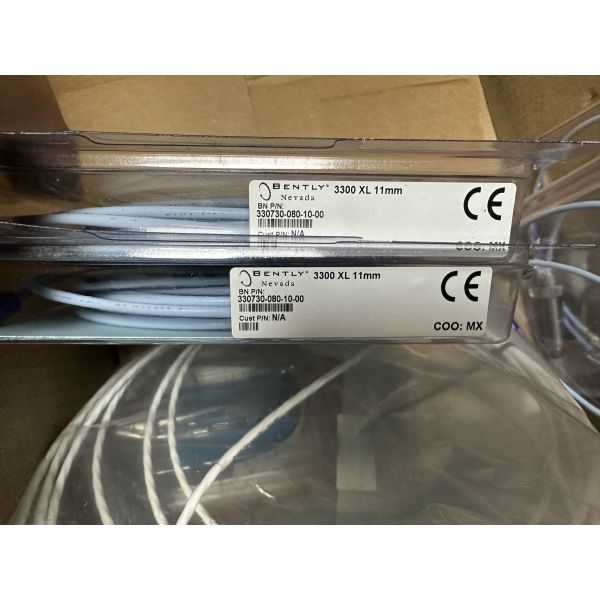

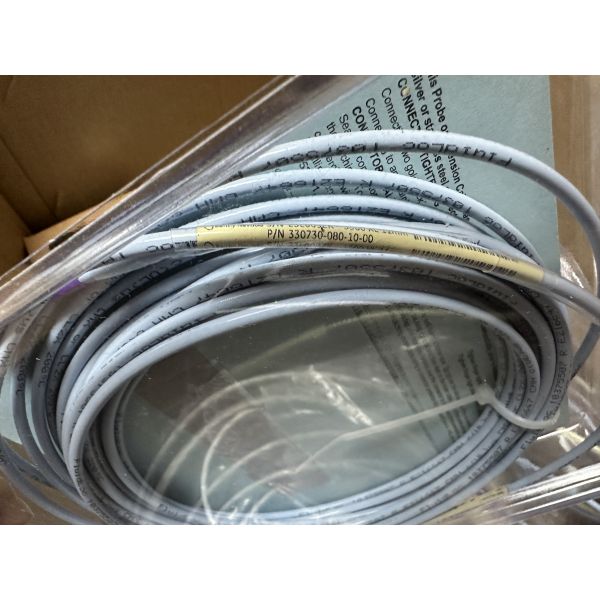

Bently Nevada 3300 XL 11 mm Extension Cable 330730 140 g/m 1.5 oz/ft probe
Bently Nevada 3300 XL 11 mm Extension Cable 330730 140 g/m 1.5 oz/ft probe
Bently Nevada 3300 XL 11 mm Extension Cable 330730 140 g/m 1.5 oz/ft probe
Bently Nevada 3300 XL 11 mm Extension Cable 330730 140 g/m 1.5 oz/ft probe
Specifications
Brand Name :
Bently Nevada
Model Number :
330730-080-10-00
Certification :
CE
Place of Origin :
USA
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
12-16weeks
Packaging Details :
standard carton packing
Extension Cable Material :
75 Ω triaxial, fluoroethylene propylene (FEP) insulated.
Extension Cable Armor (optional) :
Flexible AISI 302 SST with FEP outer jacket.
Tensile Strength (maximum rated) :
330 N (75 pounds) probe case to probe lead. 270 N (60 pounds) at probe lead to extension cable connectors.
Connector Material :
Gold-plated brass
Weight :
Extension Cable:45 g/m (0.5 oz/ft);Armored Extension Cable:140 g/m (1.5 oz/ft)
Operating and Storage Temperature :
-52°C +351°F) to +177°C (-62°F to+351°F)
Description

Bently Nevada 3300 XL 11 mm Extension Cable 330730

The 3300 XL 11 mm probe comes in varying probe case configurations, including armored and unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X

1.5 probe threads. The reverse mount 3300 XL 11mm probe comes standard with either 3⁄8 -24 or M10 X 1 threads. All components of the

transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place, preventing the connection from becoming loose. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip utilizing our patented CableLoc design that provides 330 N (75 lb) pull strength.

Ordering Information

330730-AAA-BB-CC

Make sure that the extension cable length and the probe length, when added together,equal the Proximitor Sensor Total length.
A: Cable Length Option
0 4 0 4.0 meters (13.1 feet)
0 8 0 8.0 meters (26.2 feet)
B: Connector and Cable Option
0 0 Standard cable
0 1 Armored cable
0 2 Standard cable with connector protector
0 3 Armored cable with connector protector
1 0 FluidLoc cable
1 1 Armored FluidLoc cable
1 2 FluidLoc cable with connector protector
1 3 Armored FluidLoc cable with connector protector
C: Agency Approval Option
0 0 Not required
0 5 Multiple Approvals
