Standard Low Pressure 300psi Ultra High Purity Diaphragm Valve
Standard Low Pressure 300psi Ultra High Purity Diaphragm Valve
Specifications
Brand Name :
WEYO
Model Number :
Standard low-pressure (300 psi) ultra-high purity diaphragm valve
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Description

Standard low-pressure (300 psi) ultra-high purity diaphragm valve , suitable for high-purity and ultra-high-purity applications

Standard low-pressure (300 psi) ultra-high purity diaphragm valve, designed and manufactured strictly according to industry standards.
Diaphragm sealing, suitable for high-purity and ultra-high-purity applications.

Standard Low Pressure 300psi Ultra High Purity Diaphragm Valve

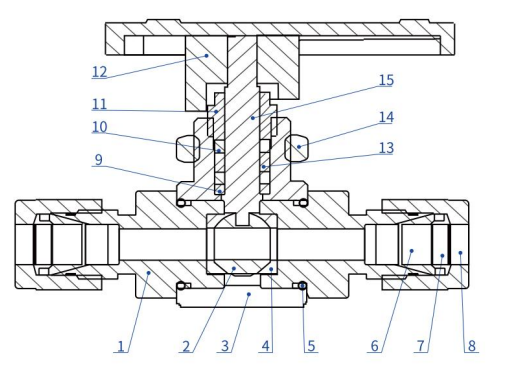

number name matterial

1
fittings body		 SS316
2 sphere SS316
3 matrix SS316

4		 Ball gasket
PTFE/PEEK

5		 O-ring neoprene

6		 Front ferrule SS316

7		 Rear ferrule SS316

8		 Ferrule nut SS316

9		 Gasket SS316

10		 Gasket SS316

11		 Tightening nut SS316

12		 Joystick
sibley alloy

13		 packing PTFE/PEEK

14		 installing nut SS316
15 valve stem SS316

Standard Low Pressure 300psi Ultra High Purity Diaphragm ValveStandard Low Pressure 300psi Ultra High Purity Diaphragm ValveStandard Low Pressure 300psi Ultra High Purity Diaphragm Valve

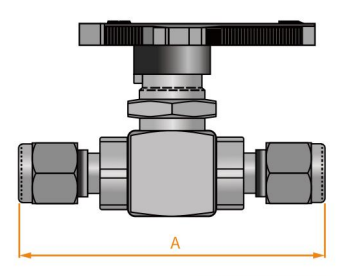

model mm size Panel installation hole size
A B C C
BV300-TF04-TF04 5 51.6 45.7 20 10 φ14.5
BV300-TF06-TF06 7.5 56.6 47.7 20 12 φ16.5
BV300-TF08-TF08 10 64 60 23.02 14.5 φ19.5

Ordering Guide

Ex. SS BV300 -TF4 -TF4
Parent material product line nlet connection Exhaust connector

SS:stainless steel
BV300
TF02:1/8"ferrule fitting
TF04:1/4"ferrule fitting
TF06:3/8"ferrule fitting
TF08:1/2"ferrule fitting
NPT04:1/4"NPTnternal thread
NPT08:1/2"NPTnternal thread
Other connectors are available for selection
TF02:1/8"ferrule fitting
TF04:1/4"ferrule fitting
TF06:3/8"ferrule fitting
TF08:1/2"ferrule fitting
NPT04:1/4"NPTnternal thread
NPT08:1/2"NPTnternal thread
Other connectors are available for selection

Standard Low Pressure 300psi Ultra High Purity Diaphragm Valve

Air inlet/outlet joint

We accept customized connectors of various forms, such as ferrules, NPT, VCR, etc
Pressure gauge
1.0/1.6/2.5 precision pressure gauges are available for selection, with 100% full inspection and 1.2 times pressure overpressure
"Mother"
the inner flow channel is made of imported stainless steel and undergoes honing, extrusion, cleaning and EP treatment
Safety valve
Self-developed and assembled, safe and reliable
