Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''
Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''
Specifications
Brand Name :
WEYO
Model Number :
CGH Series
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders. 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements/Other special materials can be provided according to customers’need.
Balance Seal :
316+TFE: -50 ～ 230℃ GRAPHITE：230 ～ 620℃
Packing :
PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , ong-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug type :
Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V
Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
Diaphragm type :
Work way : Direct action、Reverse action , Size: 250 290 370 370H 480 480H 550 , Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″, Supply pressure:500KPa , Handle: Side handle
Electric motor :
selectable
Hydraulic Cylinder :
Optional
Description
CGH Series High Pressure Cage Control Valve
CGH Series High Pressure Cage Control Valve features pressure balanced single seated plug, balance seal ring and high leakage level, with standard leakage level IV and V for optional.
Moreover the series has small unbalanced force, which can effectively overcome the resistant force of the fluid; therefore smaller actuators can be configured to achieve higher shut-off differential pressure. Windows and multi-hole cage types and contoured-p trim type can be provided for different kinds of conditions.
The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.
Rated Cv and Stroke (CONTOURED-P) (Table2)
valve size
inch(mm)		 inch(mm) Rated Cv stroke(mm) valve size
inch(mm)		 inch(mm) Rated Cv stroke(mm)
900-1500LB
1-1/2 (40) 1-1/2 (40) 28 20 5 (125) 3 (80) 100 40
2 (50) 1-1/2 (40) 28 20 4 (100) 170 40
2 (50) 40 30 5 (125) 280 60
2-1/2 (65) 1-1/2 (40) 28 20 6 (150) 4 (100) 170 40
2 (50) 40 30 5 (125) 280 60
2-1/2 (65) 70 30 6 (150) 360 60
3 (80) 2 (50) 40 30 8 (200) 6 (150) 360 60
2-1/2 (65) 70 30 7 (150) 500 70
3 (80) 100 40
4 (100) 2-1/2 (65) 70 30
3 (80) 100 40
4 (100) 170 40
2500LB
1-1/2 (40) 1-1/2 (40) 17 20 5 (125) 3 (80) 70 40
2 (50) 1-1/2 (40) 17 20 4 (100) 100 40
2 (50) 28 30 5 (125) 170 60
2-1/2 (65) 1-1/2 (40) 17 20 6 (150) 4 (100) 100 40
2 (50) 28 30 5 (125) 170 60
2-1/2 (65) 40 30 6 (150) 280 60
3 (80) 2 (50) 28 30 8 (200) 6 (150) 280 60
2-1/2 (65) 40 30 7 (150) 360 70
3 (80) 70 40
4 (100) 2-1/2 (65) 40 30
3 (80) 70 40
4 (100) 100 40

Rated Cv and Stroke (Windows)

valve size
inch(mm)		 inch(mm) Rated Cv stroke(mm) valve size
inch(mm)		 inch(mm) Rated Cv stroke(mm)
900-1500LB
EQ-% 1-Stage LINEAR 1-Stage
1 1/2 (40) 1 1/2 (40) 22 20 1 1/2 (40) 1 1/2 (40) 25 20
2 (50) 2 (50) 36 30 2 (50) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
2 1/2 (65) 2 1/2 (65) 55 30 2 1/2 (65) 2 1/2 (65) 65 30
2 (50) 36 30 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
3 (80) 3 (80) 80 40 3 (80) 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
2 (50) 40 40 2 (50) 40 40
4 (100 4 (100 130 40 4 (100 4 (100 150 40
3 (80) 80 40 3 (80) 100 40
2 1/2 (65) 70 40 2 1/2 (65) 70 40
5 (125) 5 (125) 220 60 5 (125) 5 (125) 280 60
4 (100 170 60 4 (100 170 60
3 (80) 100 60 3 (80) 100 60
6 (150) 6 (150) 250 60 6 (150) 6 (150) 320 60
5 (125) 220 60 5 (125) 280 60
4 (100 170 60 4 (100 170 60
8 (200) 8 (200) 450 70 8 (200) 8 (200) 560 70
7 (175) 400 70 7 (175) 500 70
6 (150) 320 70 6 (150) 380 70
10 (250) 10 (250) 770 90 10 (250) 10 (250) 970 90
8 (200) 560 90 8 (200) 700 90
12 (300) 12 (300) 1000 120 12 (300) 12 (300) 1300 120
10 (250) 900 120 10 (250) 1100 120
EQ-% 2-Stage LINEAR 2-Stage
2 (50) 1 1/2 (40) 22 30 2 (50) 1 1/2 (40) 25 30
2 1/2 (65) 2 (50) 36 30 2 1/2 (65) 2 (50) 40 30
1 1/2 (40) 22 30 1 1/2 (40) 25 30
3 (80) 2 1/2(65) 70 40 3 (80) 2 1/2(65) 70 40
2 (50) 36 40 2 (50) 40 40
1 1/2 (40) 22 40 1 1/2 (40) 25 40
4 (100 3 (80) 80 40 4 (100 3 (80) 100 40
2 1/2(65) 70 40 2 1/2(65) 70 40
2 (50) 40 40 2 (50) 40 40
5 (125) 4 (100) 170 60 5 (125) 4 (100) 170 60
3 (80) 100 60 3 (80) 100 60
2 1/2(65) 70 60 2 1/2(65) 70 60
6 (150) 5 (125) 220 60 6 (150) 5 (125) 280 60
4 (100) 170 60 4 (100) 170 60
3 (80) 100 60 3 (80) 100 60
8 (200) 7 (175) 400 60 8 (200) 7 (175) 500 60
6(150) 320 60 6(150) 380 60
5(125) 220 60 5(125) 280 60
10(250) 8 (200) 450 90 10(250) 8 (200) 560 90
7 (175) 400 90 7 (175) 500 90
6 (150) 320 90 6 (150) 380 90
12 (300) 10 (250) 900 120 12 (300) 10 (250) 1100 120
8 (200) 450 120 8 (200) 560 120
EQ-% 3-Stage LINEAR 3-Stage
2 1/2 (65) 1 1/2 (40) 22 30 2 1/2 (65) 1 1/2 (40) 25 30
3 (80) 2 (50) 40 40 3 (80) 2 (50) 40 40
4 (100 2 1/2(65) 70 40 4 (100 2 1/2(65) 70 40
5 (125) 3 (80) 100 60 5 (125) 3 (80) 100 60
6 (150) 4 (100) 170 60 6 (150) 4 (100) 170 60
8 (200) 6 (150) 320 70 8 (200) 6 (150) 380 70
10 (250) 8 (200) 560 90 10 (250) 8 (200) 700 90
12 (300) 10(250) 900 120 12 (300) 10(250) 1100 120
2500LB 1-STAGE 2-STAGE 3-STAGE Can be designed separately.

Body Material Temperature - Pressure Range (Table 3)
standard working pressure MPa
600LB 300LB 150LB
temperature℃
CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB
9.93 9.92 10.34 10.34 10.21 4.96 4.96 5.17 5.17 5.11 1.9 1.9 2 2 1.96 -29～38
9.63 9.57 10.24 10.23 10.02 4.81 4.78 5.12 5.11 5.01 1.84 1.84 1.92 1.92 1.92 50
8.44 8.18 9.81 9.75 9.28 4.22 4.09 4.9 4.88 4.64 1.62 1.57 1.77 1.77 1.77 100
7.7 7.27 9.33 9.27 9.05 3.85 3.63 4.66 4.64 4.52 1.48 1.39 1.58 1.58 1.58 150
7.13 6.55 8.97 9.1 8.76 3.77 3.28 4.48 4.55 4.38 1.37 1.26 1.4 1.4 1.4 200
6.68 6.11 8.84 8.89 8.34 3.34 3.05 4.42 4.45 4.17 1.21 1.17 1.21 1.2 1.21 250
6.33 5.81 8.49 8.49 7.75 3.16 2.91 4.24 4.24 3.87 1.02 1.02 1.02 1.02 1.02 300
6.08 5.61 8.05 8.05 7.39 3.04 2.81 4.02 4.02 3.7 0.84 0.84 0.84 0.84 0.84 350
5.94 5.55 7.76 7.76 7.29 2.97 2.78 3.88 3.88 3.65 0.74 0.74 0.74 0.74 0.74 375
5.82 5.49 7.32 7.32 6.9 2.91 2.75 3.66 3.66 3.45 0.65 0.65 0.65 0.65 0.65 400
5.73 5.43 7.02 7.02 5.75 2.87 2.72 3.51 3.51 2.88 0.56 0.56 0.56 0.56 0.56 425
5.62 5.37 6.76 6.76 2.81 2.69 3.38 3.38 0.47 0.47 0.47 0.47 / 450
5.47 5.31 6.33 6.33 2.74 2.66 3.17 3.17 0.37 0.37 0.37 0.37 / 475
5.37 5.21 5.56 5.56 2.68 2.61 2.78 2.78 0.28 0.28 0.28 0.28 / 500
5.16 4.78 4.38 4.05 2.58 2.39 2.19 2.03 0.19 0.19 0.19 0.19 / 525
4.99 4.36 3.27 2.5 2.18 1.64 0.13 0.13 0.13 / 550
4.82 4.01 2.34 2.41 2.01 1.17 0.13 0.13 0.13 / 575

Trim Material Temperature Range (Table 4)
No. Material Temperature℃
Range		 Remark
1 410 -29～427 Heat treatment
2 440 -29～427 Heat treatment
3 17-4PH -29～427 Heat treatment
4 INCONEL718 -29～620
5 F11+STF -29～510 Partial or all stellite alloy overlay welding
according to requirements
6 F22+STF -29～550 Partial or all stellite alloy overlay welding
according to requirements
7 F91+STF -29～620 Partial or all stellite alloy overlay welding
according to requirements
8 304 -196～538 Partial or all stellite alloy overlay welding
according to requirements
9 316 -196～538 Partial or all stellite alloy overlay welding
according to requirements
10 304L -196～538 Partial or all stellite alloy overlay welding
according to requirements
11 316L -196～538 Partial or all stellite alloy overlay welding
according to requirements

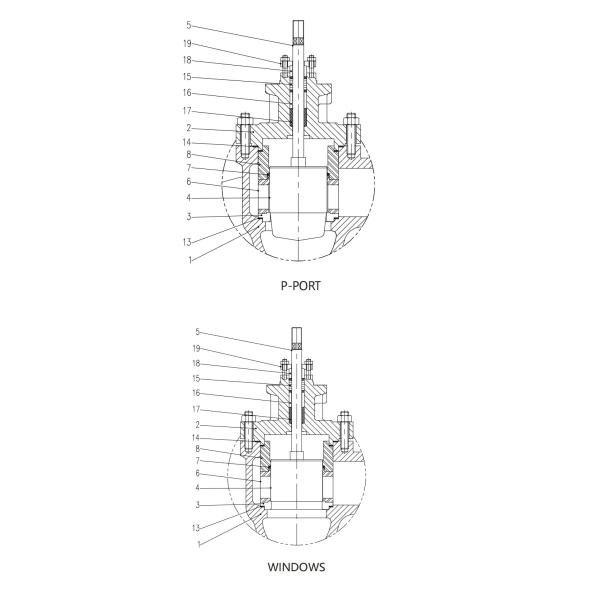

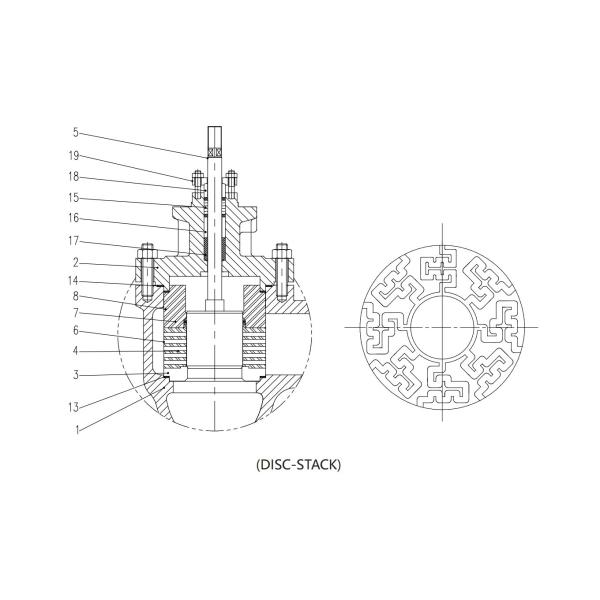

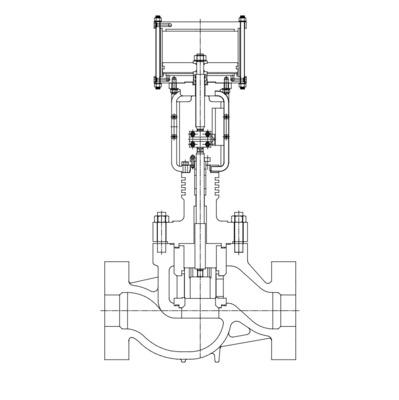

Valve Internal Structure
Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''
Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''
No. Name (Q’ty)
1 body 1
2 bonnet 1
3 seat 1
4 plug 1
5 stem 1
6 guide 1
7 balance seal 1
8 balance cylinder 1
13 seat gasket 2
14 bonnet gasket 1
15 packing 1
16 packing 1
17 stem guide 1
18 packing follower 1
19 packing flange 1

Allowable differential pressure (Table5)
Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE
Direct action MPa
Actuator specification Supply pressure MPa kPa Spring range mm Stroke Sealing surface Leakage Seat size inch / mm
2001/1/2 2 2002/1/2 3 4 5 6 7 8 10 12
40 50 65 80 100 125 150 175 200 250 300
370 0.36 130~230/20 Metal seal
IV		 20.3 20
Metal seal
V		 20.3 20
480 0.36 110-200/30
110-220/40		 Metal seal
IV		 26 26 25.2 24.4
Metal seal
V		 26 26 25.2 24.4
12＂ 0.5 60-120 Metal seal
IV		 26 26 26 26
Metal seal
V		 26 26 26 26
16＂ 0.5 60-120 Metal seal
IV		 26
Metal seal
V		 26
20＂ 0.5 60-120 Metal seal
IV		 26
Metal seal
V		 26

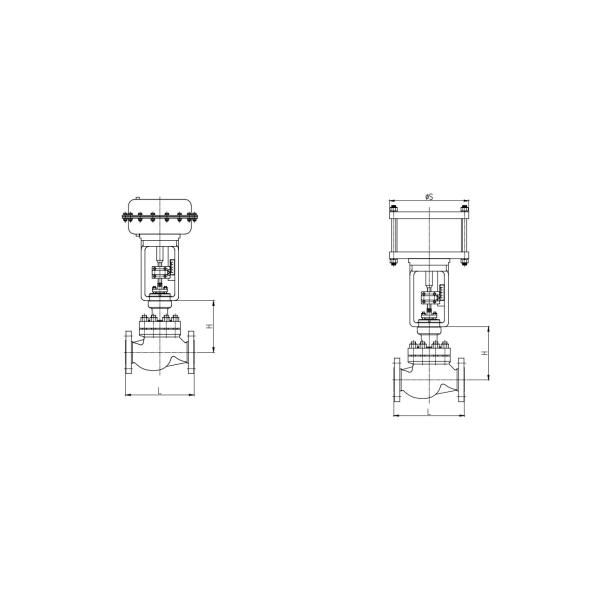

External Dimensions(Table6)
Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''
Body Size L H
ANSI900LB ANSI1500LB ANSI2500LB Standard type Fin type
INCH DN RF RJ Welded type RF RJ Welded type RF RJ Welded type
1 1/2 40 333 333 333 333 333 333 381 381 381 200 270
2 50 375 378 375 375 378 375 400 403 400 223 293
2 1/2 65 410 413 410 410 413 410 441 444 441 236 306
3 80 441 444 460 460 463 460 660 663 660 295 365
4 100 511 514 530 530 533 530 737 740 737 334 404
5 125 614 617 668 668 671 668 764 767 764 420 490
6 150 714 717 768 768 771 768 864 867 864 485 555
8 200 914 917 972 972 975 972 1022 1025 1022 499 569
10 250 991 994 1067 1067 1070 1067 1372 1375 1372 580 650
12 300 1130 1133 1219 1219 1222 1219 1575 1578 1575 630 700

Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''

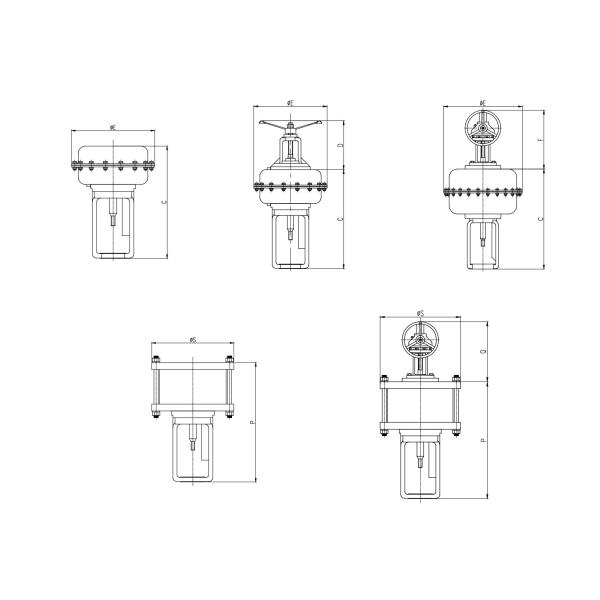

执行机构
规格
Actuator
Size		 E C D F S P Q
290 292 369 214 - - - -
370 370 409 214 - - - -
370H 370 440 214 - - - 一
480 482 628 - 350 - - -
480H 482 680 - 387 - - -
550 560 703 - 387 - - -
12" - - - - 370 606 393
16" - - - - 472 626 450
20" 600 720 560

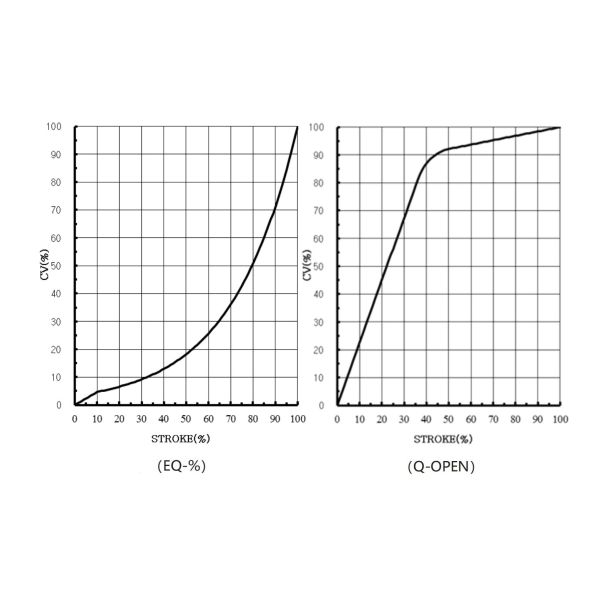

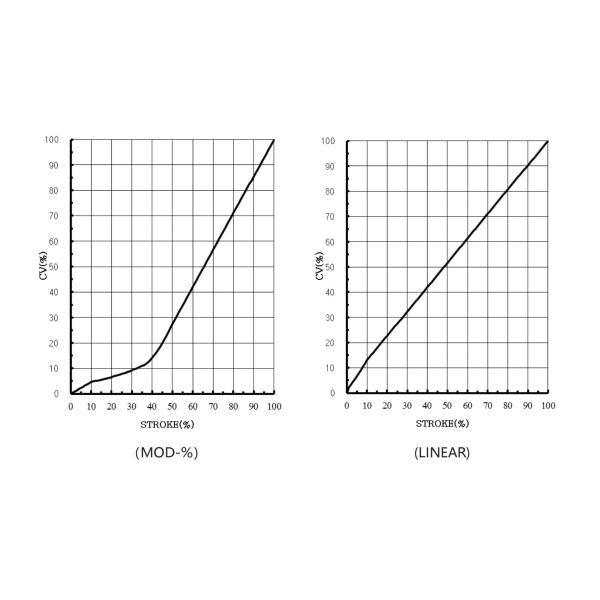

FLOW CHARACTERISTICS
Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''
Three Way High Pressure Cage Type Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4'' 5''
