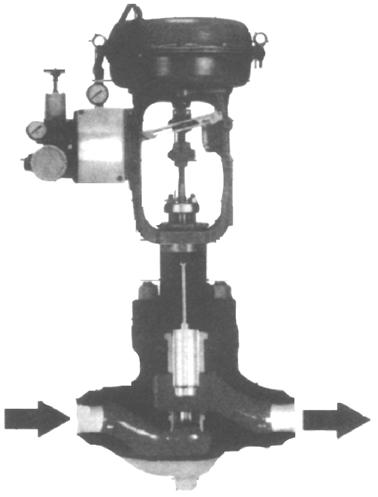

The guide part of the valve core has a large guiding area and good vibration resistance. The control valve is equipped with a multi-spring diaphragm actuator, which has a compact structure and large output force.
Cv value and stroke See Table 1 Table 1 | ||||||||||||||||||||||
Nominal diameter(mm) | 25 | 40 | 50 | 80 | ||||||||||||||||||
Valve seat diameter(mm) | 25 | 32 | 40 | 32 | 40 | 50 | 50 | 65 | 80 | |||||||||||||
Rated Cv value | Equal percentage linearity | JIS 63K ANSI 9001500 | 0.25 | 0.4 | 0.63 | 1.0 | 1.6 | 2.5 | 4.0 | 6.3 | 12 | 12 | 17 | 25 | 17 | 25 | 47 | 47 | 75 | 110 | ||
ANSI 2500 | - | 12 | 17 | 12 | 17 | 31 | 31 | 47 | 75 | |||||||||||||
Rated stroke(mm) | 14.3 | 25 | 38 |

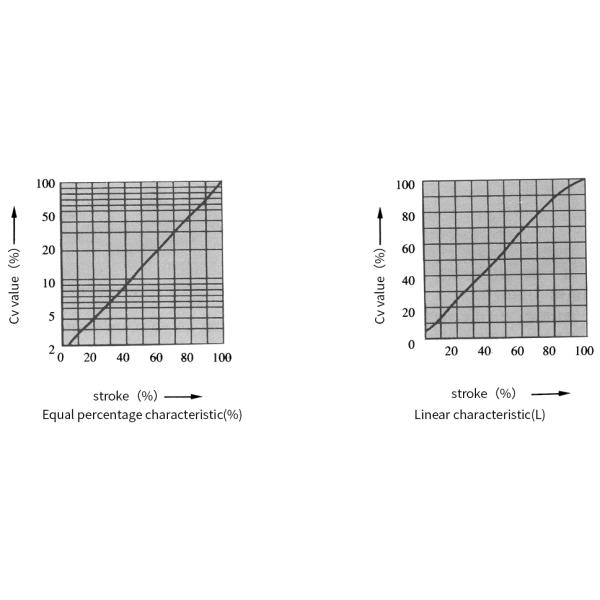

Flow characteristic curve
Allowable Pressure Difference I. Valves equipped with HA or VA actuators (with positioners) are shown in Tables 2 and 3 A. Air-to-close valves Table 2 | ||||||||||||
Nominal pressure | Actuator | Supply pressure (MPa) | Spring range (MPa) | Allowable pressure difference(MPa) | ||||||||
Valve seat diameter (mm) or Cv value | ||||||||||||
Cv≤4.0 | Cv=6.3 | Cv=12 | 32 | 40 | 50 | 65 | 80 | |||||
ANSI 900 1500 JIS 63K | HA3D | 0.28 | 0.04-0.20 | 16.3 15.2 | 16.1 14.9 | 10.2 9.2 | 5 4.2 | 3.2 2.7 | 1.8 1.4 | 1 0.70 | 0.70 0.40 | |
0.30 | 0.04-0.20 | 20.7 19.6 | 20.5 19.2 | 1312 | 6.4 5.7 | 4.2 3.6 | 2.4 1.9 | 1.41 | 0.90 0.60 | |||
0.35 | 0.04-0.20 | 26.4 | 26.4 | 2019 | 10 9.2 | 6.66 | 3.8 3.4 | 2.3 1.9 | 1.6 1.3 | |||
0.40 | 0.04-0.20 | - | - | 26.426 | 13.5 12.8 | 9.1 8.5 | 5.3 4.8 | 3.2 2.8 | 2.2 1.9 | |||
HA4D | 0.28 | 0.04-0.20 | - | 18.3 17.3 | 9.1 8.4 | 6.1 5.5 | 3.53 | 2.1 1.7 | 1.4 1.1 | |||
0.30 | 0.04-0.20 | - | 23.1 22.1 | 11.6 10.9 | 7.7 7.1 | 4.54 | 2.7 2.3 | 1.9 1.6 | ||||
0.35 | 0.04-0.20 | 26.4 | 17.717 | 11.9 11.3 | 7 6.5 | 4.2 3.9 | 3 2.7 | |||||
0.40 | 0.04-0.20 | - | - | - | 23.9 23.2 | 16.1 15.5 | 9.59 | 5.8 5.4 | 4.1 3.8 | |||
VA5D | 0.26 | 0.02-0.10 | 26.3 25.5 | 17.7 17.1 | 10.410 | 6.36 | 4.5 4.2 | |||||
0.28 | 0.02-0.10 | - | - | - | 26.4 | 20 19.4 | 11.8 11.4 | 7.2 6.8 | 5.1 4.8 | |||
ANSI 2500 | HA3D | 0.28 | 0.04-0.20 | 16.3 15.2 | 16.1 14.9 | 10.2 9.2 | 10.2 9.2 | 5 4.2 | 2.52 | 1.8 1.4 | 1 0.7 | |
0.30 | 0.04-0.20 | 20.7 19.6 | 20.5 19.2 | 1312 | 1312 | 6.4 5.7 | 3.3 2.8 | 2.4 1.9 | 1.4 I | |||
0.35 | 0.04-0.20 | 31.6 30.5 | 31.4 30.1 | 2019 | 2019 | 10 9.2 | 5.2 4.7 | 3.8 3.4 | 2.3 1.9 | |||
0.40 | 0.04-0.20 | 42.5 41.4 | 42.341 | 2726 | 2726 | 13.5 12.8 | 7.2 6.7 | 5.3 4.8 | 3.2 2.8 | |||
HA4D | 0.28 | 0.01-0.20 | - | 18.3 17.3 | 18.3 17.3 | 9.1 8.4 | 4.8 4.3 | 3.53 | 2.1 1.7 | |||
0.30 | 0.04-0.20 | - | 23.1 22.1 | 23.1 22.1 | 11.6 10.9 | 6.1 5.6 | 4.54 | 2.7 2.3 | ||||
0.35 | 0.04-0.20 | - | 35.1 34.1 | 35.1 34.1 | 17.717 | 9.5 8.9 | 7 6.5 | 4.2 3.9 | ||||
0.40 | 0.04-0.20 | - | 44 | 44 | 23.9 23.2 | 12.8 12.3 | 9.59 | 5.8 5.4 | ||||
VA5D | 0.26 | 0.02-0.10 | - | 26.3 25.5 | 14.1 13.6 | 10.410 | 6.36 | |||||
0.28 | 0.02-0.10 | - | - | - | 29.6 28.9 | 15.9 15.4 | 11.8 11.4 | 7.2 6.8 | ||||
1.The numbers in the dark boxes indicate the standard specification actuators matched with the valve. 2.The maximum allowable pressure difference shall not exceed the maximum value specified in the ANSI B16.34 standard. 3.The inlet pressure P₁ shall not exceed the maximum allowable pressure difference when the valve is closed. 4.The maximum allowable pressure difference varies with the valve seat leakage. In the same cell, the pressure difference above indicates the condition when the valve seat leakage is ≤ 0.01%, and the pressure difference below indicates the condition when the valve seat leakage is ≤ 0.001%. |
