Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''
Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''
Specifications
Brand Name :
WEYO
Model Number :
V300-TGMU & V300-TGDU
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Delivery Time :
7 - 15 days for small orders, 15 - 30 days for large orders
Packaging Details :
Customized packaging to protect products
Type :
THREE WAY
Body size :
1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings :
ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections :
Flanged(RF FF FM RJ) Weld ends(SW BW)
Body Bonnet Material :
A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other special materials can be provided according to customers’need.
Trim Material :
410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial or all stellite alloy overlay welding according to requirements. Other special materials can be provided according to customers’need.
Packing :
PTFE: -196 ～ 150℃ GRAPHITE: 150 ～ 620℃
Stem Guide :
PTFE: -196 ～ 150℃ CARBON: 150 ～ 620℃
Bonnet Type :
Standard type ：-17 ～ 230℃ , Fin-Extension type ：230 ～ 620℃ ，-45 ～ -17℃ , Long-Extension type ：-196 ～ -45℃ , Bellows seal type , Steam jacket type
Plug type :
Unbalanced
Seat leakage standard :
ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage :
IV V
Flow characteristics :
(EQ-%) (Linear)
Rangeability :
30:1 ; 50:1
Diaphragm type :
Work way : Direct action、Reverse action ，Size: 250 290 370 370H 480 480H 550 ，Supply pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa），Spring range: 80-280KPa , Handle: (Top handle) (Side handle)
PNEUMATIC CYLINDER :
Work way : Double action , Size: 12″ 16″ 20″ , Supply pressure:500KPa , Handle: (Side handle)
Electric motor :
selectable
Hydraulic Cylinder :
Optional
Description

V300-TGMU Series Three Merging Control Valve & V300-TGDU Series Three Diverting Control Valve

Three way control valves, divided by V300-TGMU merging and V300-TGDU diverting types, are suitable for regulating in three-way pipe conditions. The above two forms are interchangeable when the body size is small and the differential pressure is low, TGBD Balanced Three Way Diverting Control Valve is adopted in big body size (DN150 and above) and high differential pressure diverting conditions.

The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.

Rated Cv and Stroke

valve size
inch(mm)		 inch(mm) Rated Cv stroke(mm) valve size
inch(mm)		 inch(mm) Rated Cv stroke(mm)
1 (25) 1 (25) 12 20 5 (125) 4 (100) 170 40
1-1/2 (40) 1 (25) 12 20 5 (125) 280 60
1-1/2 (40) 28 20 300 60
33 20 6 (150) 5 (125) 280 60
2 (50) 1-1/2 (40) 28 20 6 (150) 360 60
2 (50) 40 30 400 60
50 30 8 (200) 7 (150) 500 70
2-1/2 (65) 2 (50) 40 30 8 (200) 640 70
2-1/2 (65) 70 30 720 70
80 30 10 (250) 8 (200) 640 70
3 (80) 2-1/2 (65) 70 30 10 (250) 1000 90
3 (80) 100 40 12(300) 10 (250) 1000 90
120 40 12 (300) 1400 120
4 (100) 3 (80) 100 40
4 (100) 170 40
200 40

Body Material Temperature - Pressure Range (Table 3)
standard working pressure MPa
600LB 300LB 150LB ℃
Temperature
CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB CF8M CF8 WC9 WC6 WCB
9.93 9.92 10.34 10.34 10.21 4.96 4.96 5.17 5.17 5.11 1.90 1.90 2.00 2.00 1.96 -29～38
9.63 9.57 10.24 10.23 10.02 4.81 4.78 5.12 5.11 5.01 1.84 1.84 1.92 1.92 1.92 50
8.44 8.18 9.81 9.75 9.28 4.22 4.09 4.90 4.88 4.64 1.62 1.57 1.77 1.77 1.77 100
7.70 7.27 9.33 9.27 9.05 3.85 3.63 4.66 4.64 4.52 1.48 1.39 1.58 1.58 1.58 150
7.13 6.55 8.97 9.10 8.76 3.77 3.28 4.48 4.55 4.38 1.37 1.26 1.40 1.40 1.40 200
6.68 6.11 8.84 8.89 8.34 3.34 3.05 4.42 4.45 4.17 1.21 1.17 1.21 1.20 1.21 250
6.33 5.81 8.49 8.49 7.75 3.16 2.91 4.24 4.24 3.87 1.02 1.02 1.02 1.02 1.02 300
6.08 5.61 8.05 8.05 7.39 3.04 2.81 4.02 4.02 3.70 0.84 0.84 0.84 0.84 0.84 350
5.94 5.55 7.76 7.76 7.29 2.97 2.78 3.88 3.88 3.65 0.74 0.74 0.74 0.74 0.74 375
5.82 5.49 7.32 7.32 6.90 2.91 2.75 3.66 3.66 3.45 0.65 0.65 0.65 0.65 0.65 400
5.73 5.43 7.02 7.02 5.75 2.87 2.72 3.51 3.51 2.88 0.56 0.56 0.56 0.56 0.56 425
5.62 5.37 6.76 6.76 2.81 2.69 3.38 3.38 0.47 0.47 0.47 0.47 / 450
5.47 5.31 6.33 6.33 2.74 2.66 3.17 3.17 0.37 0.37 0.37 0.37 / 475
5.37 5.21 5.56 5.56 2.68 2.61 2.78 2.78 0.28 0.28 0.28 0.28 / 500
5.16 4.78 4.38 4.05 2.58 2.39 2.19 2.03 0.19 0.19 0.19 0.19 / 525
4.99 4.36 3.27 2.50 2.18 1.64 0.13 0.13 0.13 / 550
4.82 4.01 2.34 2.41 2.01 1.17 0.13 0.13 0.13 / 575

Trim Material Temperature Range (Table 4)
No. Material Temperature
Range ℃		 Remark
1 410 -29～427 Heat treatment
2 440 -29～427 Heat treatment
3 17-4PH -29～427 Heat treatment
4 INCONEL718 -29～620
5 F11+STF -29～510 Partial or all stellite alloy overlay welding
according to requirements
6 F22+STF -29～550 Partial or all stellite alloy overlay welding
according to requirements
7 F91+STF -29～620 Partial or all stellite alloy overlay welding
according to requirements
8 304 -196～538 Partial or all stellite alloy overlay welding
according to requirements
9 316 -196～538 Partial or all stellite alloy overlay welding
according to requirements
10 304L -196～538 Partial or all stellite alloy overlay welding
according to requirements
11 316L -196～538 Partial or all stellite alloy overlay welding
according to requirements

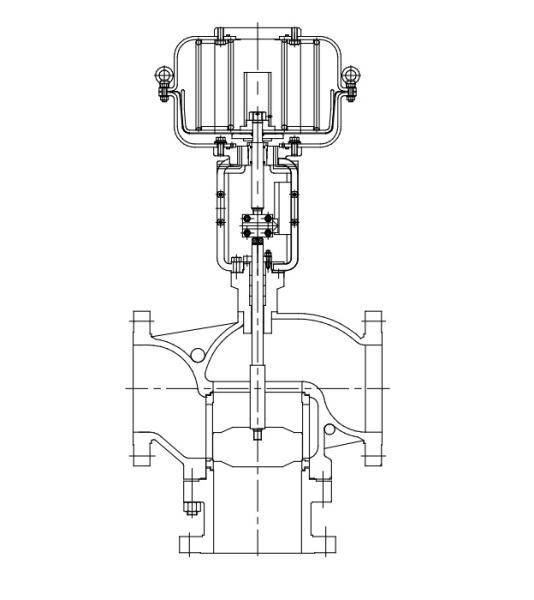

Valve Internal Structure

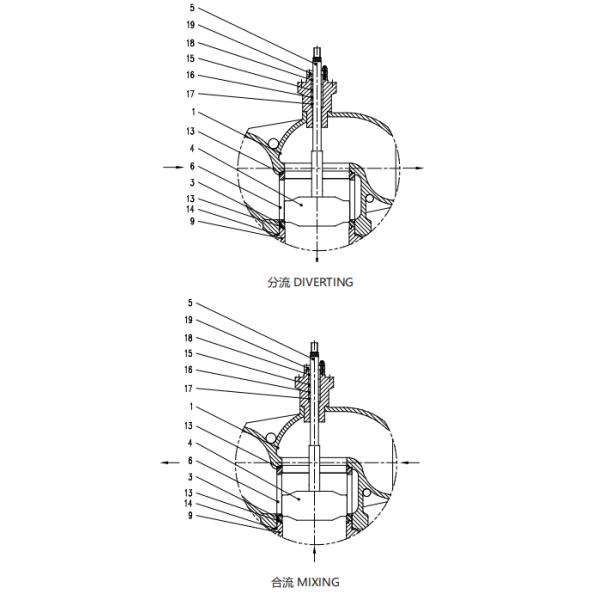

Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''
No. Name (Q’ty)
1 body 1
3 seat 2
4 plug 1
5 stem 1
6 cage 1
9 lower pipe fitting 1
13 seat gasket 3
14 bonnet gasket 1
15 packing 1
16 packing 1
17 stem guide 1
18 packing follower 1
19 packing flange 1

Allowable differential pressure (Table5)
Diaphragm Actuator/PTFE Packing(Mixing)
DA: Direct action MPa
16" 12" 550 480 370 290 250
Actuator specification
0.5 0.5 0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
120 70-120 80-210/60
80-240/70
80-280/90		 110-220/40
80-250/60
80-280/70		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm
Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 25 1 inch
/mm
10 10 32 1.25
10 10 40 1.5
10 10 50 2
10 10 65 2.5
10 10 80 3
10 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7
10 10 200 8
10 10 250 10
10 10 300 12

Diaphragm Actuator/GRAPHITE Packing(Mixing)
DA: Direct action MPa
12" 550 480 370 290 250
Actuator specification
0.5 0.5 0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
120 120 80-210/60
80-240/70
80-280/90		 110-220/40
80-250/60
80-280/70		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm
Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 25 1 inch /
mm
10 10 32 1.25
10 10 40 1.5
10 10 50 2
10 10 65 2.5
10 10 80 3
10 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7
10 10 200 8
10 10 250 10
10 10 300 12

Diaphragm Actuator/PTFE Packing(Diverting)
DA: Direct action MPa
12" 550 480 370 290 250
Actuator specification
0.5 0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
60 80-210/60 110-220/40
80-250/60		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 1.0 8.0 - 2.1 25 1
inch/mm
3.2 8.2 4.0 32 1.25
2.2 7.0 3.2 40 1.5
0.8 3.8 0.4 50 2
2.9 4.6 2.2 65 2.5
0.8 3.3 0.7 80 3
0.2 1.7 0.2 100 4
1.1 2.3 0.9 0.4 125 5
0.5 1.5 0.5 0.2 150 6

Diaphragm Actuator/GRAPHITE Packing(Diverting)
DA: Direct action MPa
12" 550 480 370 290 250
Actuator specification
0.5 0.36 0.36 0.36 0.28 0.28
Supply pressure MPa
60 80-210/60 110-220/40
80-250/60		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
9.7 10 0.5 7.5 - 1.6 25 1
inch/mm
3.0 7.8 - 3.8 32 1.25
2.0 6.7 - 3.0 40 1.5
0.7 3.7 - 0.3 50 2
2.9 4.6 0.3 2.1 65 2.5
0.7 3.2 - 0.6 80 3
0.2 1.6 - 0.2 100 4
1.1 2.3 0.9 0.4 125 5
0.5 1.5 0.5 0.2 150 6

Diaphragm Actuator/PTFE Packing(Mixing)
RA:Reverse action MPa
12" 550 480H 480 370H 370 290 250
Actuator specification
0.5 0.36 0.36 0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
120 80-210/60
80-240/70
80-280/90		 120-280/60
100-280/70		 110-220/40
80-250/60
80-280/70		 194-352/30
142-352/40		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm
Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 25 1 inch /
mm
10 10 32 1.25
10 10 40 1.5
10 10 50 2
10 10 65 2.5
10 10 80 3
10 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7
10 10 200 8
10 10 250 10
10 300 12

Diaphragm Actuator/GRAPHITE Packing(Mixing)
RA:Reverse action MPa
12" 550 480H 480 370H 370 290 250
Actuator specification
0.5 0.36 0.36 0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
120 80-210/60
80-240/70
80-280/90		 120-280/60
100-280/70		 110-220/40
80-250/60
80-280/70		 194-352/30
142-352/40		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm
Stroke

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 25 1 inch /
mm
10 10 32 1.25
10 10 40 1.5
10 10 50 2
10 10 65 2.5
10 10 80 3
10 10 100 4
10 10 125 5
10 10 150 6
10 10 175 7
10 10 200 8
10 10 250 10
10 300 12

Diaphragm Actuator/PTFE Packing(Diverting)
RA: Reverse action MPa
12" 550 480H 480 370H 370 290 250
Actuator specification
0.5 0.36 0.36 0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
60 80-210/60 120-280/60
100-280/70		 110-220/40
80-250/60		 194-352/30
142-352/40		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm
Stroke

V
IV
V		 IV
V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
10 10 1.0 8.0 - 2.1 25 1 inch /
mm
3.2 8.2 4.0 32 1.25
2.2 7.0 3.2 40 1.5
0.8 3.8 0.4 50 2
2.9 4.6 2.4 3.6 2.2 65 2.5
0.8 3.3 0.6 1.6 0.7 80 3
0.2 1.7 - 0.8 0.2 100 4
1.1 2.3 - 0.9 0.8 0.4 125 5
0.5 1.5 - 0.5 0.4 0.2 150 6

Diaphragm Actuator/Graphite Packing(Diverting)
RA:Reverse action MPa
12" 550 480H 480 370H 370 290 250
Actuator specification
0.5 0.36 0.36 0.36 0.40 0.36 0.28 0.28
Supply pressure MPa
60 80-210/60 120-280/60
100-280/70		 110-220/40
80-250/60		 194-352/30
142-352/40		 130~230/20
80~230/30
80~280/40		 60~170/20
60~220/30		 60~220/20

kPa
Spring range

mm
Stroke
V
IV
V
IV

V
IV
V
IV
V
IV
V
IV
V
IV
V
IV
Sealing surface Leakage
9.7 10 0.5 7.5 - 1.6 25 1 inch
/mm
3.0 7.8 - 3.8 32 1.25
2.0 6.7 3.0 40 1.5
0.7 3.7 - 0.3 50 2
2.9 4.6 2.4 3.6 0.3 2.1 65 2.5
0.7 3.2 0.6 1.6 - 0.6 80 3
0.2 1.6 - 0.8 - 0.2 100 4
1.1 2.3 0.9 0.8 0.4 125 5
0.5 1.5 0.5 0.4 0.2 150 6

External Dimensions(Table6)
Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''
Body Size ANSI150LB ANSI300LB ANSI600LB H1
INCH DN L1 L2 L1 L2 L1 L2 standard type heat sink type
1 25 184 152 197 152 210 165 124 224
1.5 40 222 178 235 178 251 190 145 245
2 50 254 190 267 190 286 203 156 256
2.5 65 276 222 292 222 311 235 195 295
3 80 298 248 318 248 337 263 210 310
4 100 352 254 368 254 394 276 235 335
5 125 403 330 425 330 457 356 302 372
6 150 451 337 473 337 508 368 326 396
8 200 543 406 568 406 610 432 385 455
10 250 673 473 708 473 752 508 392 462
12 300 737 543 775 543 819 578 493 563
Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''

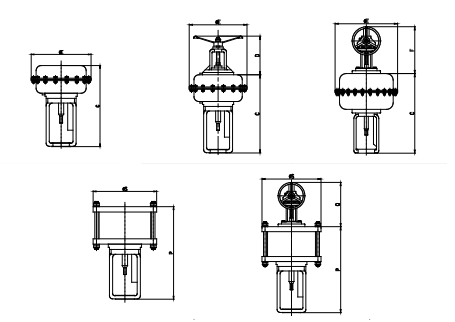

Actuator Size E C D F S P Q
250 252 343 168 -
290 292 369 214 -
370 370 409 214 - - - -
370H 370 440 214 - - - -
480 482 628 - 350 - - -
480H 482 680 - 387 - - -
550 560 703 - 387 - - -
12＂ - - - - 370 606 393

Send your message to this supplier
Send Now

Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''

Ask Latest Price
Product Detail
Brand Name :
WEYO
Model Number :
V300-TGMU & V300-TGDU
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000 units per month for small parts. 1000 units per month for large parts
Contact Supplier
Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''

WEYO AUTO TECH

Verified Supplier
2 Years
shanghai, shanghai
Since 2003
Business Type :
Manufacturer, Seller
Main Products :
Control Valves, Servo Valves, Proportional Valve
Total Annual :
141790014-161450000
Employee Number :
1000~1200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Servo Valves
MachineU China Products
Contact Supplier
Submit Requirement
