BSJ150L Aluminium Alloy Roots Vacuum Pump 500m3/h 2.2kW Small Volume
BSJ150L Aluminium Alloy Roots Vacuum Pump 500m3/h 2.2kW Small Volume
Specifications
Model Number :
BSJ150L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Supply Ability :
100 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
White
Pumping Rate :
500 m3/h (8330L/min)
Material :
Aluminium alloy
Features :
Heat sink, Corrosion resistance, Efficient energy saving
G.W. :
95kgs
N.W. :
82kgs
Meas. :
102*50*50cm
Description

White colour, 500m³/h Mechanical Booster Pump, Roots Pump BSJ150L

Description :

Roots vacuum pumps, also known as Roots blowers, are rotary plunger-type pumps where two symmetrically shaped impellers rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of an oil-free intermediate seal, multiple sealed ways to ensure a high clean vacuum environment in the rotor chamber.
  • Advanced processing to ensure the good geometrical symmetry of the rotors, as well as low noise and long service life.
  • A special shaft seal is used to achieve long, stable running without oil leakage.
  • The BSJ-L series is made of all-aluminum alloy, a heat sink, corrosion-resistant, and efficient, energy-saving. The BSJ-LC series is made of cast iron. The unique liquid coupling method enables the pump to start directly under the atmosphere, which greatly reduces the time of pumping.
  • Compact structure, light weight, and small volume.

​Technical Parameter :

Model Units BSJ150L
Pumping Rate 50 Hz m³h-1 / Lmin-1 500/8330
60 Hz 600/10000
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.1x103
Max Allowable differential pressure

50HZ

 Pa 7.3*103
60HZ Pa 6.0*103

Ultimate Vacuum

 Pa/ mbar

0.4/4×10-3
Motor Power(2P) kW(hp) 2.2(3.0)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 1.6
Ambient Temp. ℃ 5~40
Weight -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by the Pirani gauge when the Baosi special pump oil is used, and the value should be 4x10-3 if the McLeod gauge is used.

The cooling water temperature of the inlet port must be 5~30℃. When the temperature is too low, keep it in an environment that is not prone to condensation.

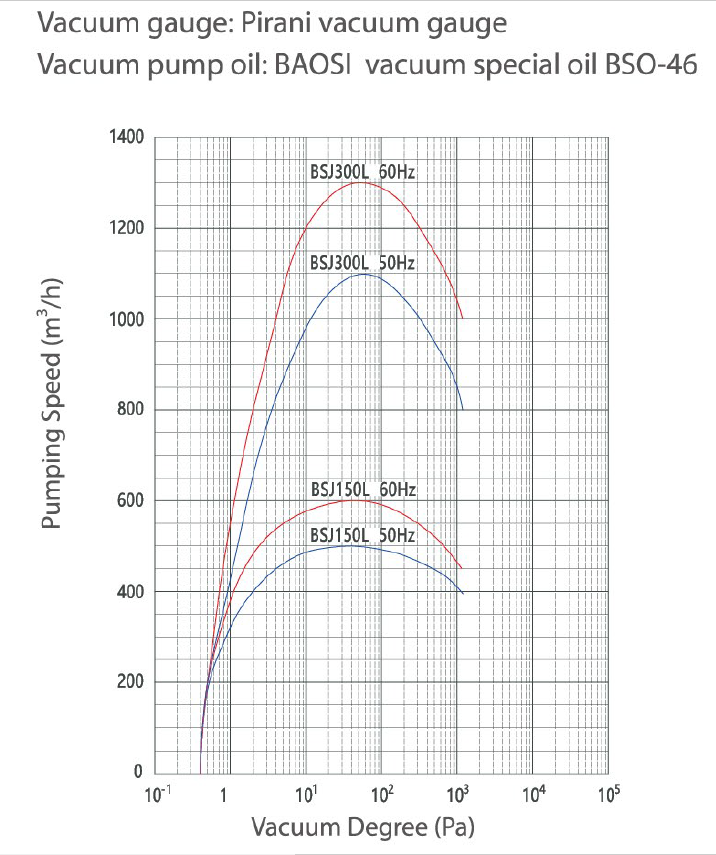

Performance Curve:

BSJ150L Aluminium Alloy Roots Vacuum Pump 500m3/h 2.2kW Small Volume

Dimensions:

BSJ150L Aluminium Alloy Roots Vacuum Pump 500m3/h 2.2kW Small Volume

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freeze drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
