High Performance Water Cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM
High Performance Water Cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM
Specifications
Model Number :
DFFY 400/4500PM
Certification :
ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1
Price :
1
Supply Ability :
500 Units per month
Delivery Time :
7 working days
Packaging Details :
Wooden Box
Payment Terms :
T/T
Cooling method :
water cooled
Pumping speed N2 :
4500 L/s
Ultimatre Pressure :
LF 5E-6 Pa
Rated speed :
21000
Cooling Method :
water cooling
Max Power :
≤1200
Description

BAOSI VACUUM water-cooling Oil lubricated Molecular Vacuum Pump​

TECHNICAL PARAMETER

Model

DFFY 400/4500PM

Inlet flange

-

LF400

Outlet flange

-

KF40

Pumping speed

L/s

N2:4500

Compression ratio N2

-

1×108

Ultimate pressure

Pa

5×10-6

Rotation speed

rpm

21000

Run-up time

min

＜18

Oil

ml

200

Forevacuum pump speed

L/s

30

Cooling water temperature

℃

≤25

Cooling water flow

L/s

1

Heater power

W

≤1200

Heater voltage

V

220

Installation direction

-

any

Weight

kg

85

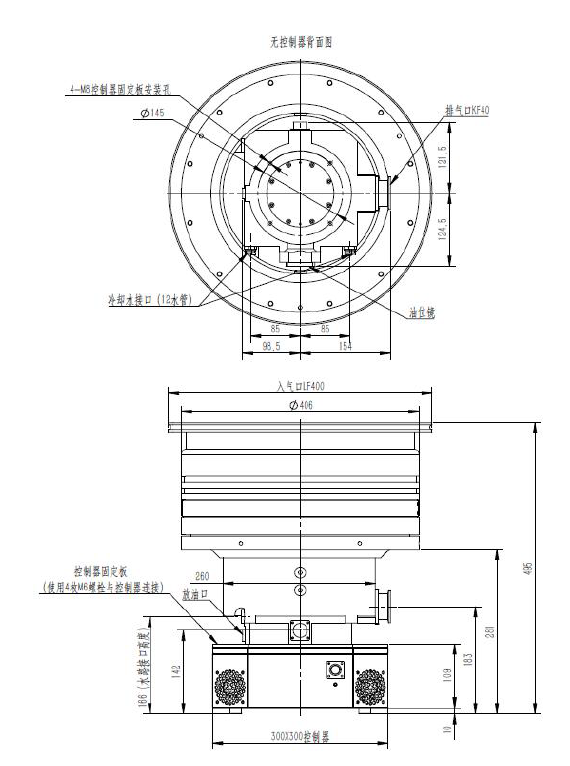

Outside Drawing :

High Performance Water Cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM

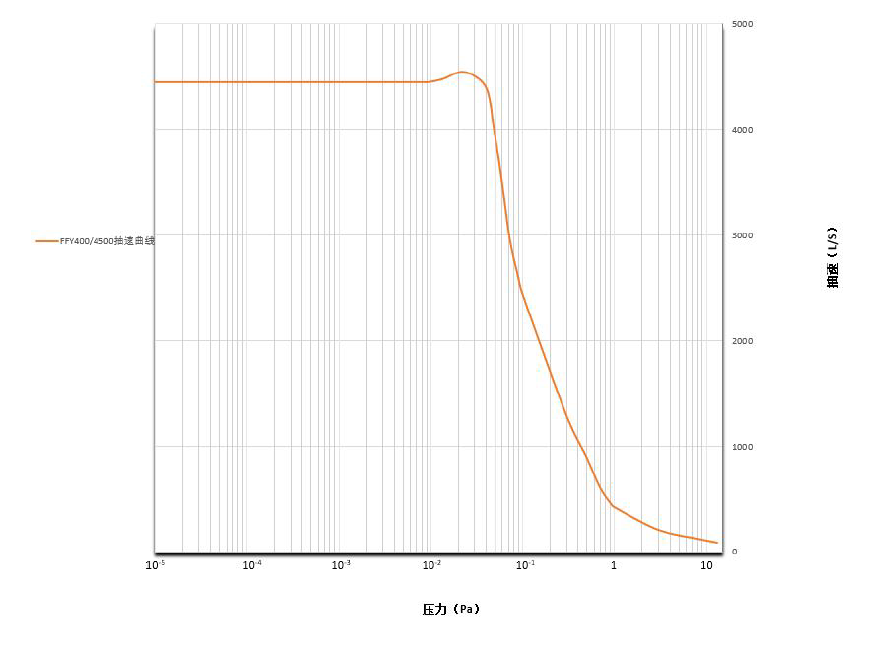

Pumping Cuver:

High Performance Water Cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM

Installation environment requirements:


1. The radial and axial magnetic field strength on the pump body surface must not exceed 3 mT (30 Gs).
2. The molecular pump is resistant to a radiation intensity of 105 rad.
3. Ambient temperature: 5-40℃
4. Relative humidity: ≤85%
5. Voltage: 220±22V, Frequency: 50±1Hz
6. Altitude: ≤3000m

Applications :

Oil-lubricated turbomolecular pumps are extensively used in these core industries:

➢ Semiconductor & Microelectronics

➢ Vacuum Coating (PVD/CVD)

➢ Scientific Research & Laboratory Analysis

➢ Vacuum Heat Treatment & Metallurgy

➢ Optoelectronics & Laser Manufacturing

➢ Lithium Battery & New Energy Material Processing

➢ Analytical Instrumentation

➢ Aerospace & Aviation Vacuum Testing
