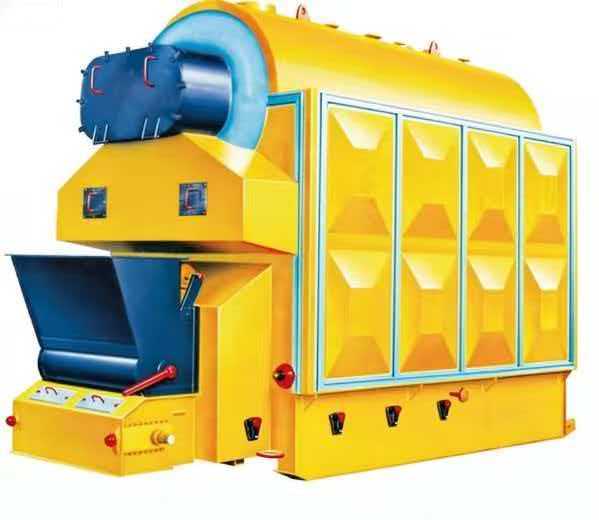

Horizontal Low Pressure Biomass Hot Water Boiler 1.25-1.6 MPA
Horizontal Low Pressure Biomass Hot Water Boiler 1.25-1.6 MPA
Specifications
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
30days
Usage :
Industrial
Output Water Temperature :
95/70℃, 115/70℃
Working Pressure :
1.25-1.6 MPA
Applicable Fuel :
Biomass particles
Ash Removal :
Automatic or manual ash extraction system
Operating Pressure :
Up to 25 bar
Design Pressure :
low pressure 0.4Mpa to 2.5Mpa
Operating Temperature :
Up to 180°C
Emission Standard :
EPA Phase 2, EU EcoDesign
Fuel Consumption :
Depends on capacity, e.g., 20 kg/h for 100 kW
Place of Origin :
China
Brand Name :
Xinjie
Price :
Negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Description
DZL Series Horizontal Quick-Assembly Hot Water Boiler
The DZL series steam and hot water boilers feature a single-tube design with chain grate combustion system. The boiler body incorporates a cylindrical drum arranged longitudinally along the center, with the front and sides forming the radiant heating surface and the rear tube bundle creating the convective heating surface. An economizer at the rear maximizes heat recovery from high-temperature flue gas.
This compact design minimizes floor space requirements, allows single-floor boiler room arrangements, and reduces construction investment. High assembly degree enables shorter installation periods and lower installation costs. The optimized heat transfer surface arrangement ensures rapid heating, sufficient output, and high thermal efficiency.
Key Applications
  • Power Generation: Converts thermal energy from biomass combustion into steam to drive turbine generators, reducing fossil fuel dependency
  • Industrial Heating: Meets heating demands in food processing, pulp and paper production, waste plastic and tire recycling, and chemical industries
  • Waste Treatment: Processes agricultural waste, tree pruning, wood, crop straw, rice husks, peanut shells, sugarcane residue, and other biomass materials
Technical Specifications
Parameter DZL0.7-0.7/95/70-AⅡ DZL1.4-0.7/95/70-AⅡ DZL2.8-0.7/95/70-AⅡ DZL4.2-0.7/95/70-AⅡ DZL7-1.0/95/70-AⅡ DZL10.5-1.0/95/70-AⅡ DZL14-1.0/115/70-AⅡ
Rated Thermal Power (MW) 0.7 1.4 2.8 4.2 7 10.5 14
Outlet Water Pressure (MPa) 0.7 0.7/1.0 0.7/1.0 0.7/1.0 1.0 1.0 1.0/1.25
Outlet Water Temperature (°C) 95 95/115 95/115 95/115 95/115 95/115 115/130
Boiler Efficiency (%) >76 >78 >79 >81 >81 >81 >81
Fuel Consumption (kg/h) 162.4 326 625 938 1524.2 2286.2 3048.3
Key Advantages
  • High Efficiency Combustion: Maximum fuel utilization with minimal waste through optimized combustion system
  • Eco-Friendly Operation: Significant reduction in greenhouse gas emissions using biomass fuels
  • Quick Assembly Design: Reduced installation time and labor costs for faster project completion
  • Advanced Safety Features: Comprehensive pressure protection and automatic control systems for reliable operation
  • Fuel Flexibility: Compatible with various biomass fuels suitable for different global markets
  • Easy Maintenance: Simple structure with accessible components for convenient servicing
Global Market Presence
The DZL series biomass boiler is extensively exported to international markets across Asia, Europe, Africa, and South America. With growing demand for clean energy solutions, this boiler has become the preferred choice for companies seeking cost-effective and environmentally responsible steam generation systems.
Offering reliable, efficient, and sustainable biomass boiler solutions, the DZL series supports global industries in achieving their sustainable development goals while maintaining high productivity standards.
