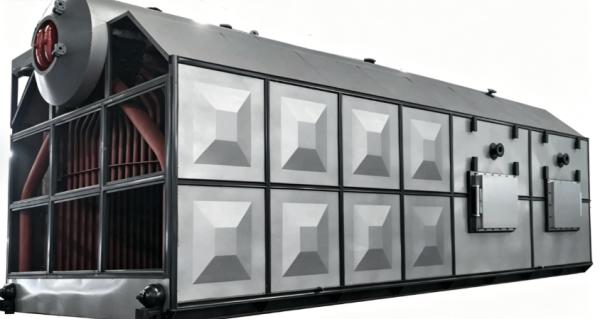

Industrial Biomass Boiler With PLC Automation Modular Water Tube High Efficiency Steam System
Industrial Biomass Boiler With PLC Automation Modular Water Tube High Efficiency Steam System
Specifications
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
30days
Design Efficiency :
High effciency over 85%
Maintenanceinterval :
Every 6 months or 2000 operating hours
Material :
Q345R steel plate, high quality
Installationtype :
Indoor or outdoor installation options
Emissionstandard :
Complies with EU EcoDesign and EPA standards
Design Pressure :
low pressure 0.4Mpa to 2.5Mpa
Ashremoval :
Automatic or manual ash extraction system
Working Pressure :
1.0-2.5 MPA
Controlsystem :
Automated PLC control with touchscreen interface
Ignitiontype :
Automatic electric ignition
Place of Origin :
China
Brand Name :
Xinjie
Price :
Negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Description
Product Introduction
The Biomass Boiler adopts a double drum water tube structure, ensuring efficient heat transfer and high steam output. Equipped with a PLC automation system, this Biomass Boiler allows precise control of combustion, fuel feeding, and operation parameters, improving safety and efficiency. The modular design simplifies transportation and installation, reducing project time and cost. Manufactured from high quality carbon steel and advanced welding technology, this Biomass Boiler offers excellent durability and resistance to high temperature and pressure. The optimized combustion chamber ensures complete fuel burning and enhanced thermal efficiency
Key Features
  • Compact structure with minimal floor space requirements
  • High assembly degree for reduced installation time and costs
  • Optimized heat transfer surfaces for rapid heating and pressurization
  • Independent wind box system with adjustable air volume
  • Stepless speed regulation grate suitable for wide coal variety
  • Complete automatic control system with monitoring instruments
  • High automation level ensuring safe and reliable operation
Industrial Applications
  • Industrial Heating: Food processing, pulp and paper production, chemical manufacturing
  • Waste Treatment: Agricultural waste, crop straw, rice husks, wood processing residues
  • Power Generation: Biomass power generation through steam turbine systems
  • Environmental Benefits: Reduced carbon emissions and air pollution compared to coal boilers
Technical Specifications
Specification SZL4 Models SZL6 Models SZL10 Models SZL15 Models SZL20 Models
Rated Evaporation Capacity (t/h) 4 6 10 15 20
Rated Working Pressure (MPa) 1.25 1.25 1.25 1.25 1.25
Rated Steam Temperature (°C) 194 194 194 194 194
Boiler Efficiency (%) >78 >80 >80 >80 >80
Fuel Consumption (Kg/h) 640 945 1545 2185 3085
Auxiliary Equipment
Induced Draft Fan Power (kW) 22 37 55 75 90
Blower Power (kW) 7.5 7.5 15 30 37
Feed Water Pump Power (kW) 7.5 11 15 25 30
Operational Advantages

The Biomass Boiler provides high thermal efficiency by utilizing renewable biomass fuels, reducing fuel costs and improving energy utilization. Its advanced combustion system ensures complete burning and stable heat output.

Another key advantage of the Biomass Boiler is its intelligent PLC control system, which enables automatic operation, precise monitoring, and improved safety. This reduces manual intervention and enhances operational efficiency.

Additionally, the Biomass Boiler features a modular design that simplifies installation and transportation. Its durable construction ensures long service life and reliable performance in harsh industrial environments. Low emissions and eco friendly operation make this Biomass Boiler suitable for industries focused on sustainable development.

Global Market Presence

The Biomass Boiler is widely exported to regions including Asia, Europe, North America, South America, and the Middle East. With increasing demand for automated and energy efficient systems, the Biomass Boiler has become a preferred choice for industries worldwide.

In conclusion, the SZL Series Industrial Biomass Boiler with PLC automation and modular water tube system provides a reliable, efficient, and intelligent Biomass Boiler solution for global industrial steam applications.
