ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter
Specifications
Brand Name :
ABB
Model Number :
266
Place of Origin :
China
MOQ :
1 pc
Price :
USD 480 1 pc
Payment Terms :
T/T
Supply Ability :
100 pc 1 week
Delivery Time :
7-14 days
Wetted Parts Material :
Stainless Steel
Electrical Connection :
M12x1 connector
Wetted Materials :
316L stainless steel
Wetted Material :
Stainless Steel
Flange Material :
316SST
Turndown Ratio :
100:1
Process Connection :
1/2" NPT, G1/2, 1/4" NPT
Customized Support :
OEM, ODM, OBM
Material :
Stainless Steel, Hastelloy C, Monel
Vacuum Resistance :
10 mbar (0.15 psi)
Range :
0-10,000 psi
Measuring Medium :
Pressure, Level and Flow
Response Time :
≤ 5 ms
Accuracy :
±0.1% of span
Protection Rating :
IP65, IP67, IP68
Description

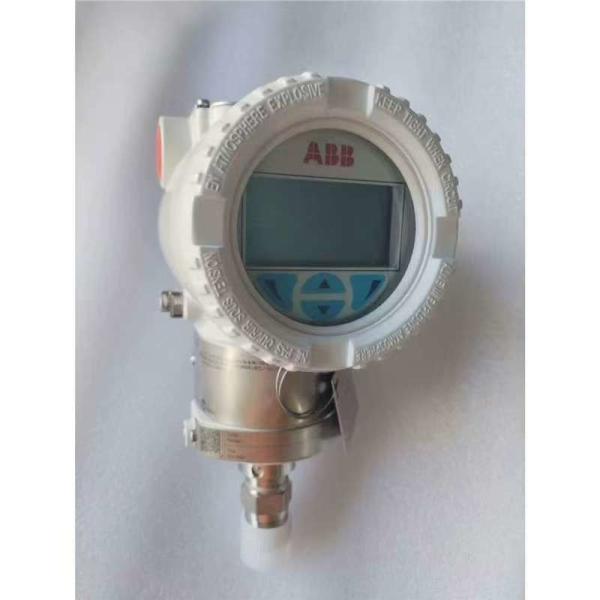

ABB Original 266MST 266DSH 266SHS Differential Pressure Sensor Differential Pressure Transmitter

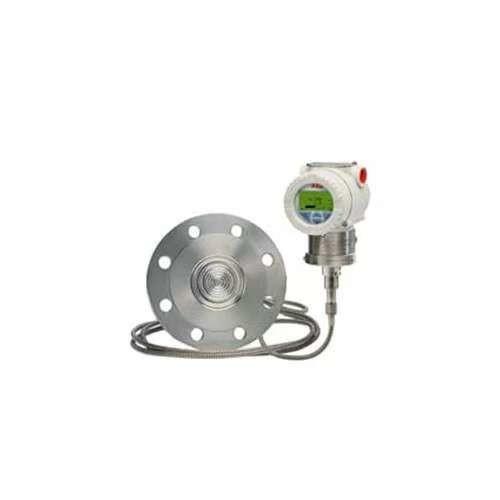

The ABB 266 is a differential pressure transmitter with “multisensor technology” suitable for measuring liquid, gas or steam flow as well as level, pressure and density characterized by a direct mount seal. This transmitter can be configured with a direct mount diaphragm seal and a standard pressure connection or combined with a remote diaphragm seal. Long-term stability and proven reliability of 266 make it to the best choice for differential pressure measurement.

This transmitter features in-field replaceable electronics module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs. Moreover, the innovative TTG (Through The Glass) technology allow users to configure the instruments in the field without removing the windowed front cover and consequently to save a lot of time.

easurement Range
-0.1...0~0.01...~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Accuracy
±0.25%(Typical) ±0.5%(Max.)
Stability
±0.1%F.S/Year( Typical ) ±0.2%F.S/year( Max.)
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
OperatingTemperatureRange
-20℃~80℃
Power supply
12~30VDC
Output signal
4~20mA 0~10/20mA 0/1~5VDC
Pressure port
M20×1.5 G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Protection
IP65
Insulation resistance
100MΩ 100VDC
