Specifications
Brand Name :
ABB
Model Number :
266 MST
Place of Origin :
China
MOQ :
1 pc
Price :
USD 500 1 pc
Payment Terms :
,T/T
Supply Ability :
100 pc 1 week
Delivery Time :
7-14 days
Mounting Method :
DIN rail or wall mount
Protection Rating :
IP65
Temperature Range :
-20°C to 85°C
Vacuum Resistance :
10 mbar (0.15 psi)
Certifications :
CE, ATEX, SIL 2
Display :
4-digit LCD
Turndown Ratio :
100:1
Supply Voltage :
10-30 VDC
Material :
Stainless Steel
Housing Material :
Stainless Steel
Hart Protocol :
Available
Accuracy :
±0.1% of span
Mounting Type :
Direct Mount
Range :
0-10,000 psi
Description

100% Original ABBs 2600T Series Differential Pressure Transmitter High Reliability 266 DSH DRH MST MRT Reliable Pressure Sensors

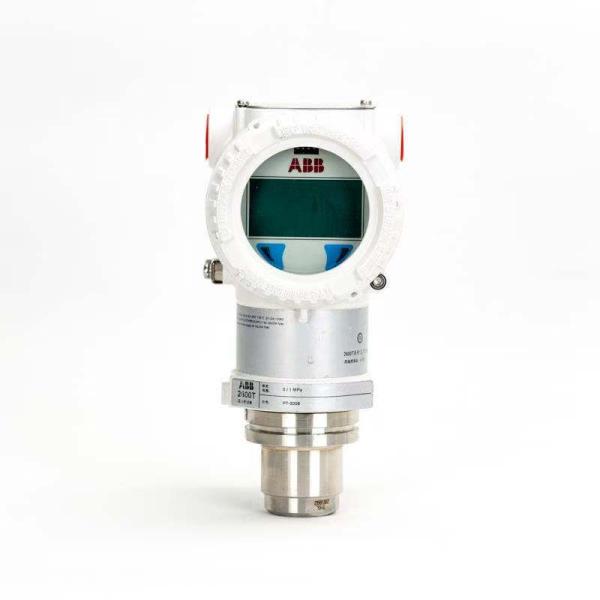

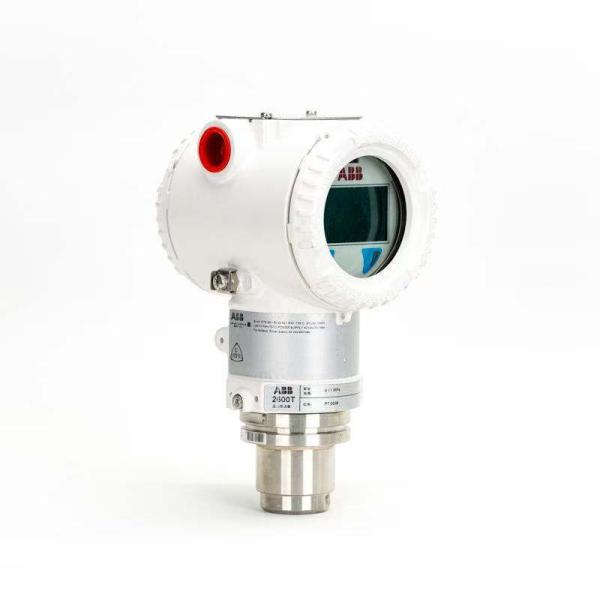

The ABB 266MST is a top-tier gauge pressure transmitter designed for demanding industrial applications. Part of ABB’s well-known 266 series, it combines high measurement accuracy with long-term stability and safety.

Key Features:

  • Measuring Range: Up to 60 MPa (8700 psi)
  • Accuracy: Up to ±0.025% of span (Premium accuracy)
  • Output Signal: 4-20 mA + HART (Also available with Profibus PA or FOUNDATION Fieldbus)
  • Display: Local LCD with configuration capability (optional)
  • Power Supply: 10.5 to 42 VDC (depending on communication protocol)
  • Process Connection: 1/2" NPT, flange options, manifold compatible
  • Sensor Technology: Piezoresistive silicon sensor with patented All-Welded technology for high safety
  • Approvals: SIL2/3, Explosion-proof, Intrinsically Safe (ATEX, IECEx, etc.)

Safety & Reliability:

  • SIL2/3 certified for safety instrumented systems
  • Extended diagnostics via HART or fieldbus for predictive maintenance
  • IP66/IP67 and corrosion-resistant housing

Typical Applications:

  • Oil & Gas
  • Power Plants
  • Chemical Processing
  • Water & Wastewater Treatment
  • Pulp & Paper
Product name
ABB266 Differential Pressure Transmitter
Model
ABB266
Base accuracy
from ±0.06%
Span limits
0.54 to 60000kpa
stability
Full scale drift <0.15%/10 years
MWP
42Mpa
Process temperature
-40... 80 °C
Application
liquid, gas or steam flow
Fill fluid (wetted parts)
Silicone oil
Diaphragm material
AISI 316 L ss,Hastelloy® C-276
protection rating
IP68
output
HART®, PROFIBUS PA, FOUNDATION Fieldbus and WirelessHART
Housing material
Aluminium Stainless steel
