Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT
Specifications
Brand Name :
Yokogawa
Model Number :
EJX110A
Place of Origin :
China
MOQ :
1 pc
Price :
USD 500 1 pc
Payment Terms :
T/T
Supply Ability :
100 pc 1 week
Delivery Time :
7-14 days
Pressure Type :
Gauge Pressure
Application :
Industrial Process Control
Electrical Connection :
M12x1
Operating Temperature :
-40°C to 85°C
Certifications :
CE, ATEX, FM, CSA
Protection Class :
IP65
Storage Temperature :
-40 to 85°C
Ingress Protection :
IP67
Voltage :
1-5 (V)
Flange Material :
316SST
Vacuum Resistance :
10 mbar (0.15 psi)
Accuracy :
±0.1%
Housing Material :
Stainless Steel
Weight :
0.5 kg
Description

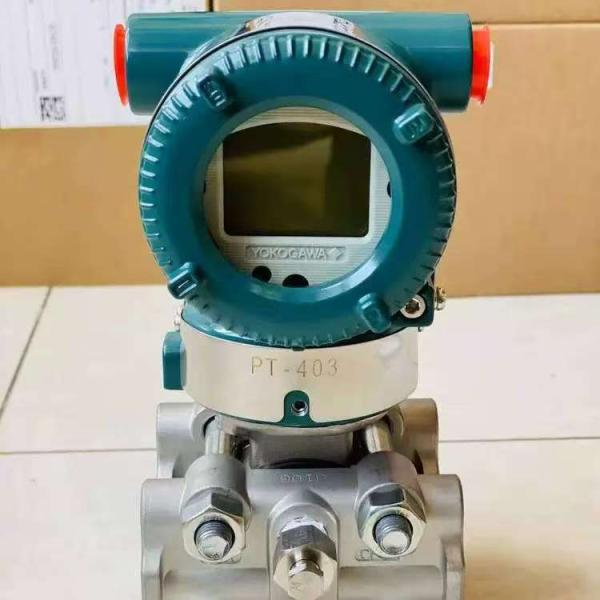

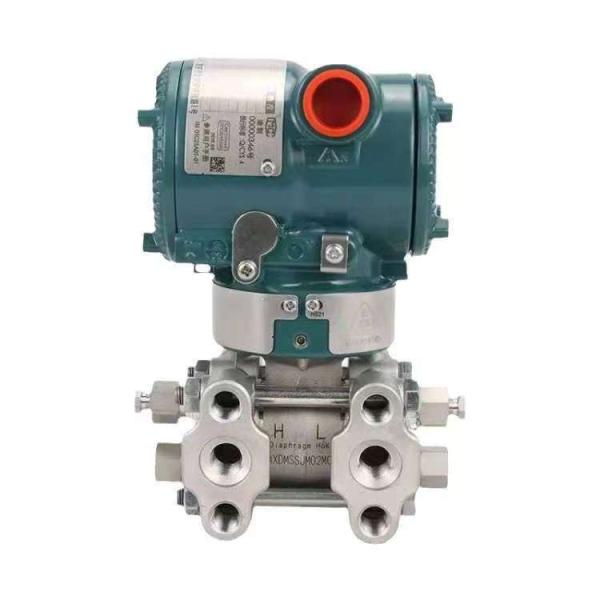

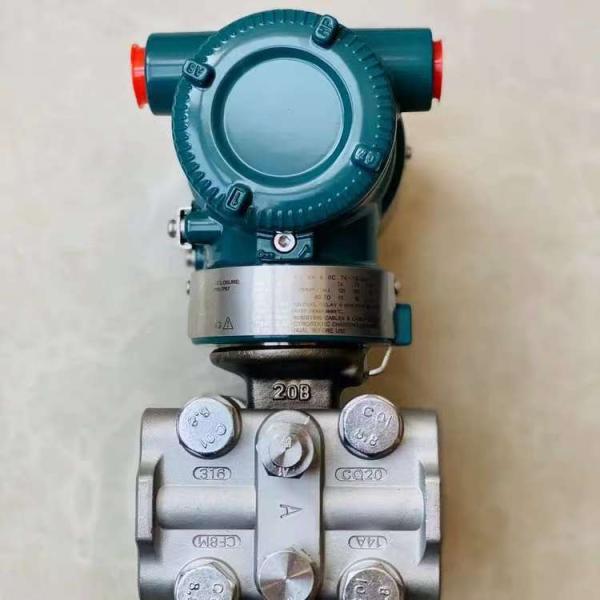

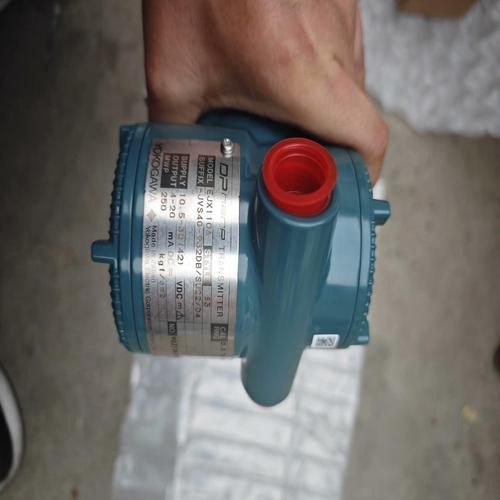

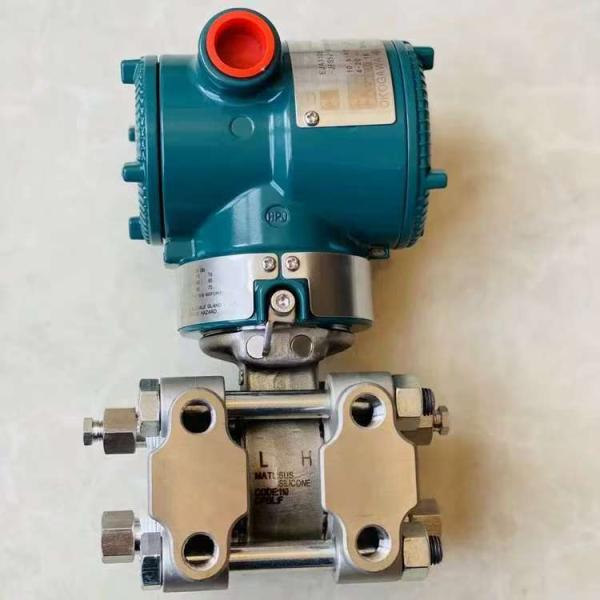

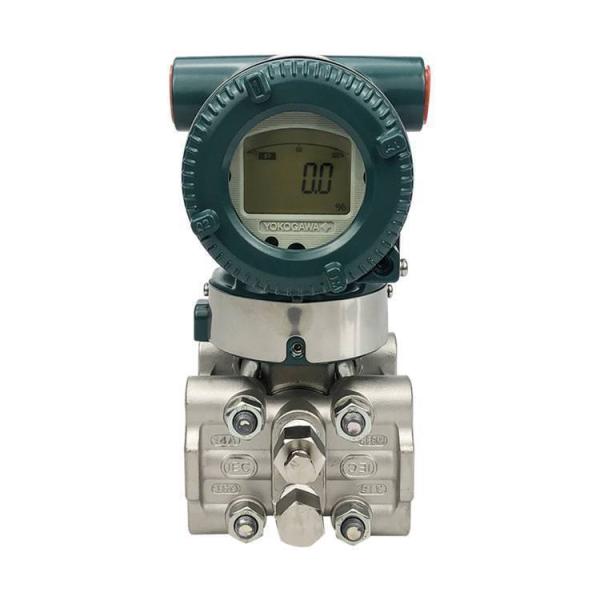

Yokogawa EJX110A Differential Pressure Transmitter 4-20MA OUTPUT


The high performance differential pressure transmitter EJX110A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJX110A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified as complying with SIL 2 for safety requirement.


tem
value
Warranty
12 Months
Customized support
OEM, ODM
Place of Origin
Japan
Brand Name
Yokogawa
Model Number
ejx530a
Amplifier housing
Cast aluminum alloy
Output signal
4 to 20 mA DC
Process connections
with 1/2 NPT
