Lever Hydraulic Proportional Control Valve , In Line Hydraulic Variable Flow Control Valve
Lever Hydraulic Proportional Control Valve , In Line Hydraulic Variable Flow Control Valve
Specifications
Brand Name :
Hengli
Model Number :
Type WMD6...L6X
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden packing
Material :
C.S/SS
Seal :
NBR/FKM
Pressure :
315bar
Max. flow :
60L/min
Fluid temperature range :
-30 to +80 (NBR seal)/-20 to +80 (FKM seal)
Description

4-way 3-position, 4-way 2-position and 3-way 2-position directional valve with mechanical, manual operation

Type WMD6...L6X

Features

- Direct operated directional spool valve

- Sub-plate mounting

- Rotary knob with or without lock

45 versions standard spool

- Porting pattern confirms to DIN 24 340 form A and ISO 4401

Function and configurations

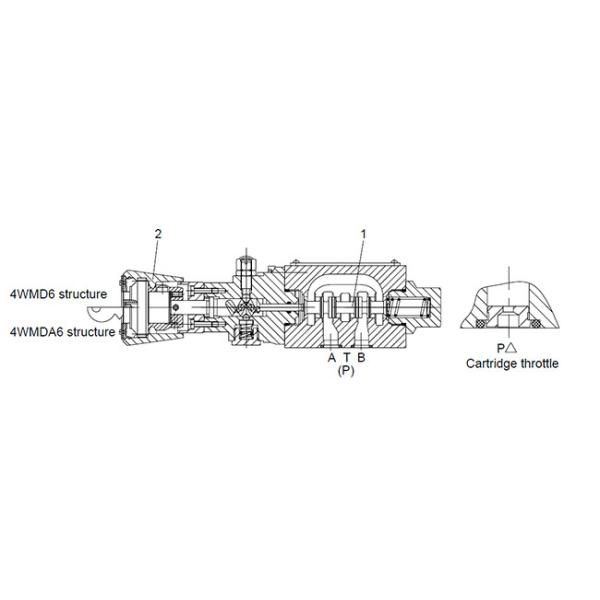

Directional valves type WMD... are mechanical, manual operated directional spool valves. They control the start, stop and direction of a flow. The rotary knob (2) operates (2×90°) the spool (1), the screw type rotation transforms into axial movement and direct acts on the spool (1). Then the spool (1) moves to the end position and gets the opening position as required.

Actual switch position of spool (1) can be controlled with rotary knob (2). All the switch positions can be orientated by locating device.

Throttle

The use of a throttle insert is required, when, operating, flows can occur during the switching processes that exceed the performance limit of the valve.

These throttles are to be inserted into the P-channel of the directional valve.

Lever Hydraulic Proportional Control Valve , In Line Hydraulic Variable Flow Control Valve

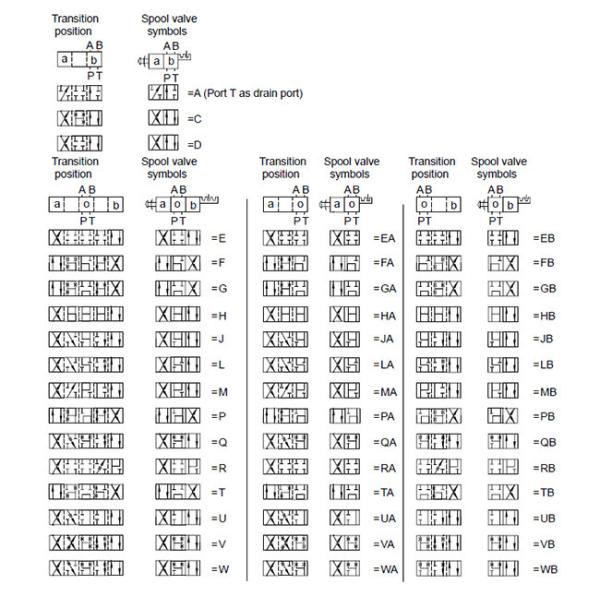

Symbols

Lever Hydraulic Proportional Control Valve , In Line Hydraulic Variable Flow Control Valve

Technical data

Fluid temperature range ℃ -30 to +80 (NBR seal)
-20 to +80 (FKM seal)
Max. operating pressure Port A,B,P bar 315
Port T bar 160
Max. flow-rate L/min 60
Flow cross section (switching neutral position) Type Q mm2 for symbol Q 6% of nominal cross section
Type W mm2 for symbol W 3% of nominal cross section
Fluid Mineral oil, Phosphate ester
Viscosity range mm2/s 2.8 to 500
Degree of contamination

Maximum permissible degree of fluid contamination:

Class 9. NAS 1638 or 20/18/15, ISO4406
Weight kg 1.5

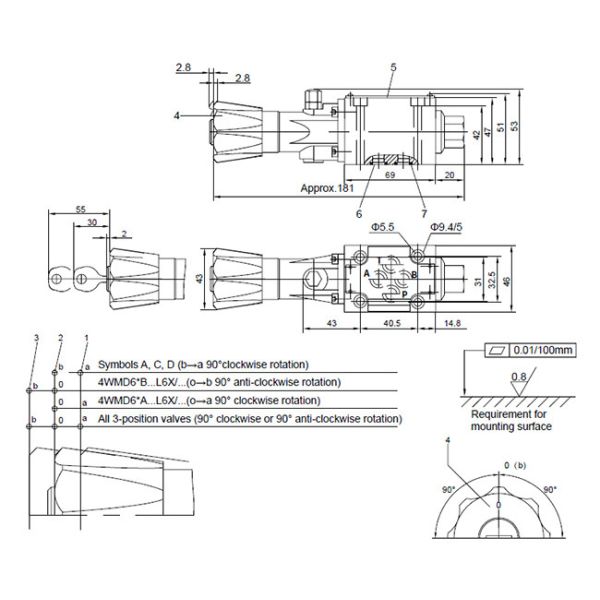

Unit dimensions (Dimensions in mm)

Lever Hydraulic Proportional Control Valve , In Line Hydraulic Variable Flow Control Valve

1 Switched position b → a,o → a

2 Switched position a → b,a → o,b → o

3 Switched position o → b

4 3-position valve(including spool *A and *B):

Switched position b

Operating valve 90° clockwise and 90° anti-clockwise

2-position valve(spool A,C,D):

Switched position b . Operating valve 90° clockwise

5 Nameplate

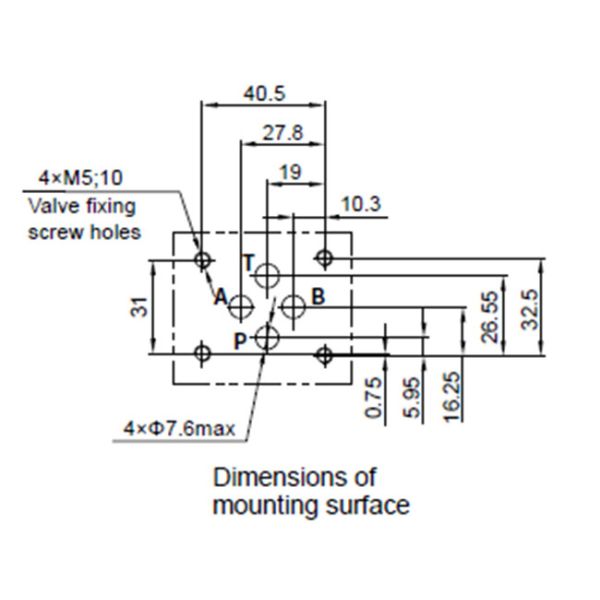

6 Fixing surface

7 O-ring 9.25×1.78 for ports A, B, P and T

Valve fixing screws:

Internal hexagon screw

M5×50 GB/T 70.1-10.9

Tightening torque MA =9Nm

must be ordered separately
