Small Three Way Hydraulic Control Valve For Tractor Loader Wood Splitter Hydraulic Pump
Small Three Way Hydraulic Control Valve For Tractor Loader Wood Splitter Hydraulic Pump
Specifications
Brand Name :
Hengli
Model Number :
Type WMD10...L3X
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden packing
Material :
C.S/SS
Seal :
NBR/FKM
Pressure :
315 bar
Max. flow :
120 L/min
Fluid temperature range :
-30 to +80 (NBR seal)/-20 to +80 (FKM seal) ℃
Description

4-way 3-position, 4-way 2-position and 3-way 2-position directional valve with mechanical, manual operation

Type WMD10...L3X

Features

- Direct operated directional spool valves with mechanical, manual operation

- For sub-plates mounting

- Rotary knob with or without lock 45 kinds standard spools, optional

- Porting pattern confirms to DIN 24 340 form A and ISO 4401

Function and configurations

Directional valves type WMD... are mechanical, manual operated directional spool valves. They control the start, stop and direction of a flow.

The rotary knob (2) operates (2×90 °) the spool (1), the screw type rotation transforms into axial movement and direct acts on the spool (1). Then the spool (1) moves to the end position and gets the opening position as required.

Actual switch position of spool (1) can be controlled with rotary knob (2). All the switch positions can be orientated by locating device.

Cartridge throttle

The use of a throttle insert is required, when operating, flows can occur during the switching processes that exceed the performance limit of the valve.

These throttles are to be inserted into the P-channel of the directional valve.

Small Three Way Hydraulic Control Valve For Tractor Loader Wood Splitter Hydraulic Pump

Specifications

Small Three Way Hydraulic Control Valve For Tractor Loader Wood Splitter Hydraulic Pump

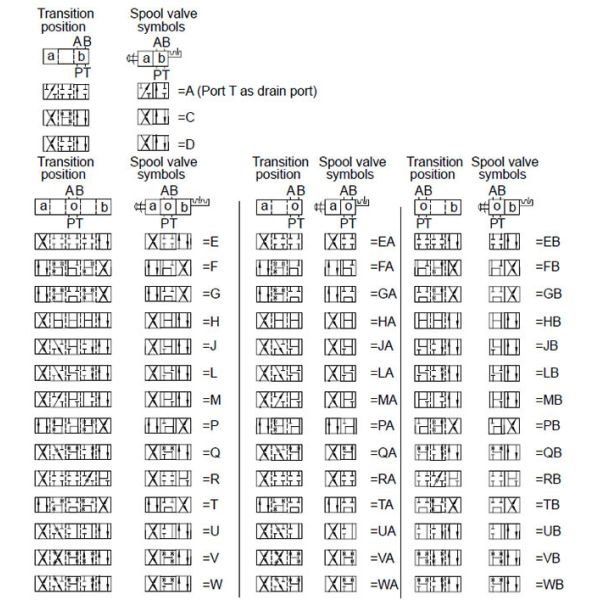

Symbols

Small Three Way Hydraulic Control Valve For Tractor Loader Wood Splitter Hydraulic Pump

Technical data

Fluid temperature range ℃ -30 to +80 (NBR seal)
-20 to +80 (FKM seal)
Max.operating pressure Port A,B,P bar 315
Port T bar 160
Max. flow-rate L/min 120
Flow cross section (switching neutral position) Type V mm2 for symbol V 11(A/B to T) 10.3(P to A/B)
Type W mm2 for symbol W 2.5(A/B to T)
Type Q mm2 for symbol Q 5.5(A/B to T)
Fluid Mineral oil, Phosphate ester
Viscosity range mm2/s 2.8 to 500
Degree of contamination Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406
Weight kg 4.2

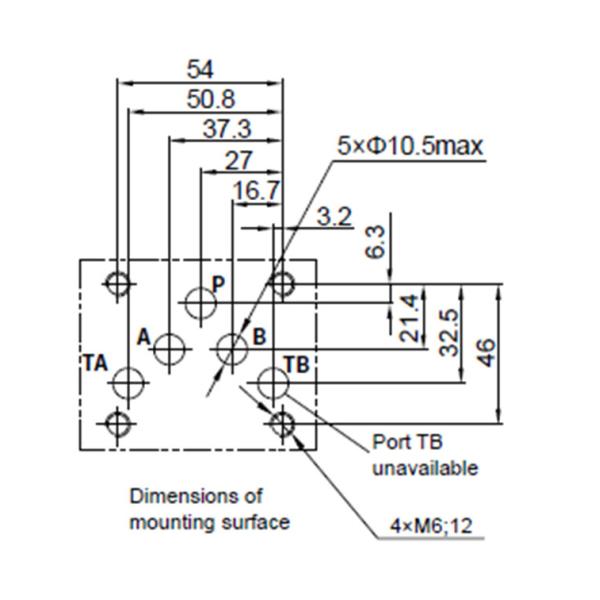

Unit dimensions (Dimensions in mm)

Small Three Way Hydraulic Control Valve For Tractor Loader Wood Splitter Hydraulic Pump

1 Switched position b → a, o → a

2 Switched position a → b, a → o, b → o

3 Switched position o → b

4 3-position valve (including spool * A and *B):

Switched position b

Operating valve 90° clockwise and 90° anti-clockwise

2-position valve (spool A, C, D): Operating valve 90° clockwise

5 Nameplate

6 Fixing surface

7 O-ring 12×2 for ports A, B, P and T

8 Additional return port when using control block

9 Observe the spool position through the colorful disc in the front of the rotary knob

Small Three Way Hydraulic Control Valve For Tractor Loader Wood Splitter Hydraulic Pump
