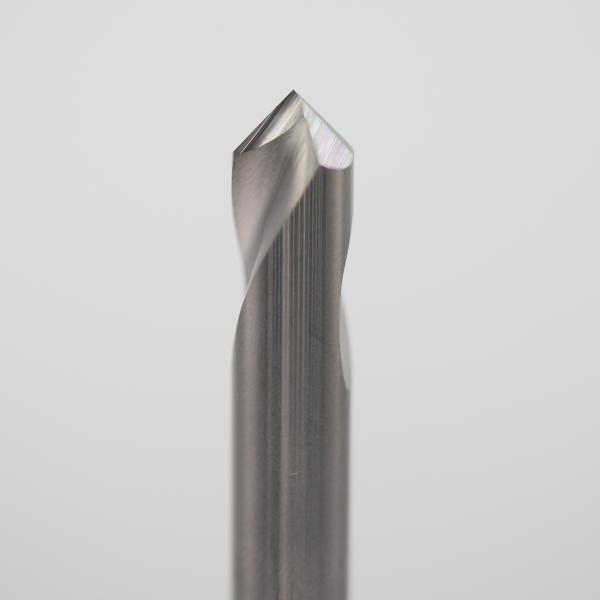

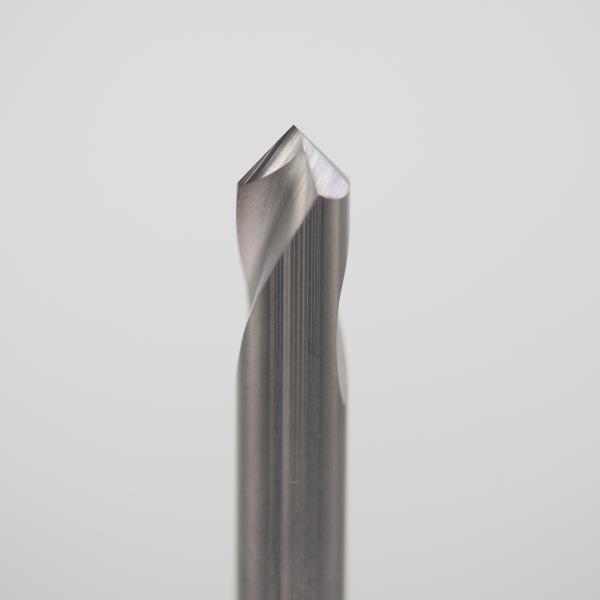

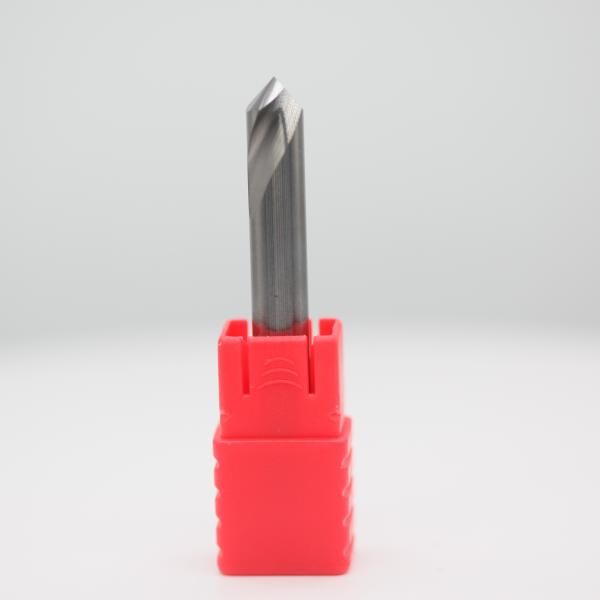

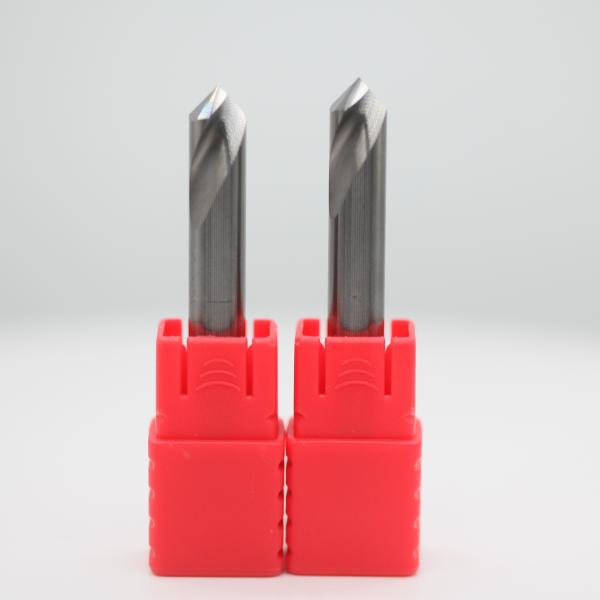

HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit
Specifications
Brand Name :
BABOS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,000PCS per month
Delivery Time :
6-8 Weeks
Packaging Details :
Plastic Box
Cut Diameter :
10mm
Shank Diameter :
10mm
Cut Length :
75mm
Machine Type :
CNC machines
Application :
centering and countersinking on CNC machines
Tolerance :
-0.015~-0.040
Customize :
Available
Point Angle :
90°/120°
Overall Length :
90mm
Number of Flutes :
2
Direction of Cut :
Right Hand
Material :
Solid Carbide
Description

HRC55 2 Flutes NC Spotting Drill Bit For Aluminum Solid Carbide Drill Bit

Product Description:

The HRC45 Solid Carbide 2 Flutes NC Spotting Drill is a specialized tool designed for precision machining.

Features:

  • Product Name:HRC45 2 Flutes NC Spoting Drill
  • Material: Tungsten Carbide
  • Point Angle: 90 Degrees
  • Application/Usage: Metalworking
  • Applicable Materials: Cement, cast Iron, Steel, Stainless Steel, Titanium and other Non-Ferrous Materials.

Technical Parameters:

Product Material Tungsten Carbide
Flute Number 2
Point Angle 90 Degrees
Tolerance -0.015mm~-0.040mm
Machine Type CNC machines
Customize Available
OEM Available
Sample Order Accepted

Applications:

The BABOS NC Spoting Drill is deal for chamfering, spot drilling, hole centering accuracy and countersinking. We offer Cobalt NC Spoting Drill with an 90°/120° point angle.

HRC55 NC Spotting Drill for Aluminum
Cut Dia. Cut Length Shank Dia Overal Length Flutes Point Angle
D(mm) d(mm) Lc(mm) L(mm)
3 50 3 90 2 90°/120°
4 50 4 90 2 90°/120°
5 50 5 90 2 90°/120°
6 50 6 90 2 90°/120°
8 60 8 90 2 90°/120°
10 75 10 90 2 90°/120°
12 75 12 90 2 90°/120°
3 50 3 120 2 90°/120°
4 50 4 120 2 90°/120°
5 50 5 120 2 90°/120°
6 50 6 120 2 90°/120°
8 60 8 120 2 90°/120°
10 75 10 120 2 90°/120°
12 75 12 120 2 90°/120°
