HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated
HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated
HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated
HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated
HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated
HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated
Specifications
Brand Name :
BABOS
Model Number :
NC550808060120
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,000PCS per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Solid Carbide
Cut Diameter :
8mm
Shank Diameter :
8mm
Cut Length :
60mm
Coating/Finish Type :
TiSiN
Overall Length :
120mm
Point Angle :
90°/120°
Number of Flutes :
2
Machine Type :
CNC machines
Grade of Coating :
ZK30UF with 10% Co content and 0.6um grain size
Application :
centering and countersinking on CNC machines
Tolerance :
-0.015~-0.040
Customize :
Available
Direction of Cut :
Right Hand
Description

Product Description:

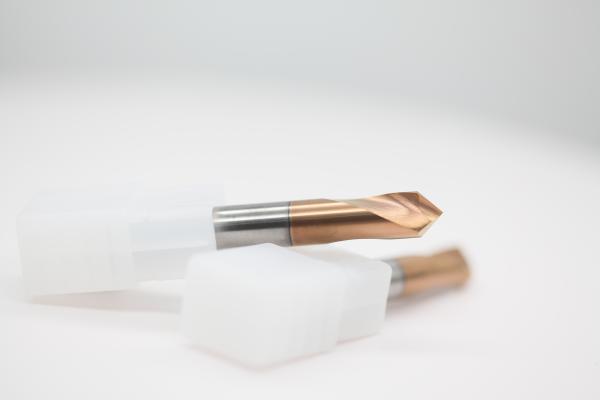

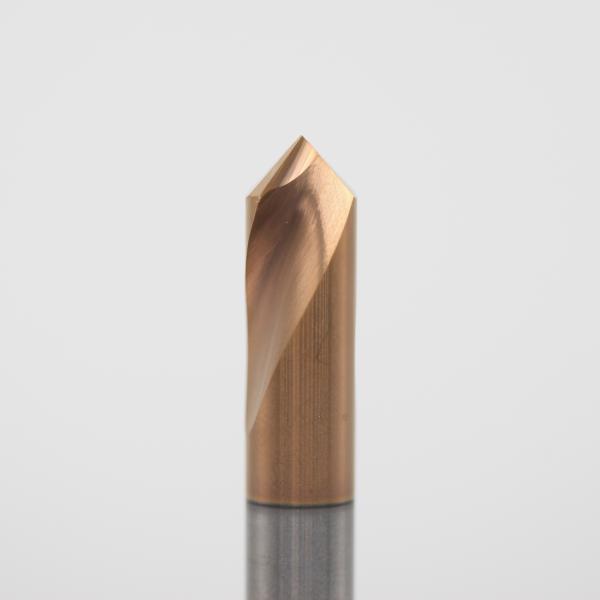

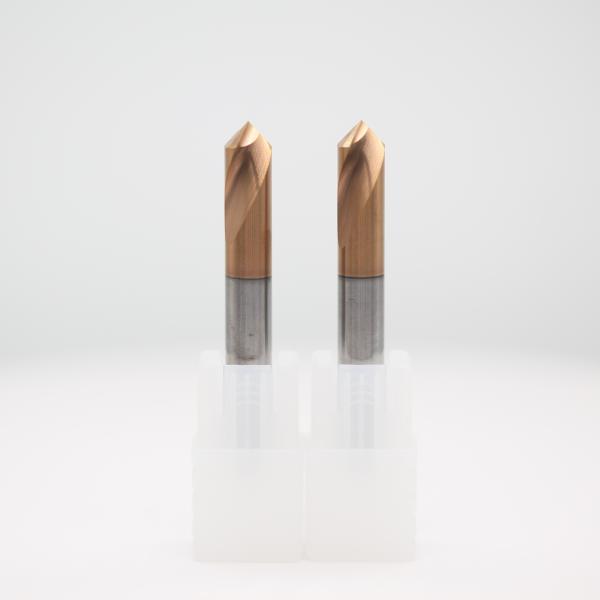

The HRC55 Solid Carbide 2 Flutes NC Spotting Drill is a specialized tool designed for precision machining.

Features:

  • Product Name:HRC55 2 Flutes NC Spoting Drill
  • Material: Tungsten Carbide
  • Point Angle: 90 Degrees
  • Application/Usage: Metalworking
  • Applicable Materials: Cement, cast Iron, Steel, Stainless Steel, Titanium and other Non-Ferrous Materials.

Technical Parameters:

Product Material Tungsten Carbide
Flute Number 2
Coating/Finish Type TiSiN
Helix Angle 90 Degrees
Tolerance -0.015mm~-0.040mm
Machine Type CNC machines
Customize Available
OEM Available
Sample Order Accepted

Applications:

The BABOS NC Spoting Drill is deal for chamfering, spot drilling, hole centering accuracy and countersinking. We offer Cobalt NC Spoting Drill with an 90°/120° point angle.
