ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW Rexroth Drives IP20 Protection 2kHz
ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW Rexroth Drives IP20 Protection 2kHz
ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW Rexroth Drives IP20 Protection 2kHz
ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW Rexroth Drives IP20 Protection 2kHz
ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW Rexroth Drives IP20 Protection 2kHz
ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW Rexroth Drives IP20 Protection 2kHz
Specifications
Ratedcurrent :
10A
Shipment :
DHL UPS EMS FEDEX POST
Frequency :
50/60Hz
Model Number :
ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW
Certification :
Brand new original
Payment Terms :
T/T
Supply Ability :
10000pcs
Dimensions :
150mm x 100mm x 200mm
Inputvoltage :
200-240V AC
Brand Name :
Rexroth
MOQ :
1 pcs
Price :
Negotiable
Delivery Time :
5-7 days
Warranty :
1 Year
Certifications :
CE, RoHS
Voltage Level :
AC220V/380V+-15%
Description

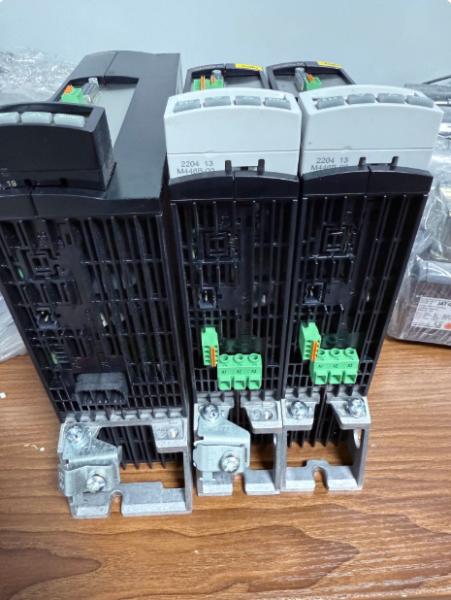

ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW Rexroth Drives
Single-axis servo drive from the IndraDrive Cs series, designed for precision industrial automation applications with 8A rated output current.
General Specifications
Series IndraDrive Cs (ACS01 / HCS01)
Type Single-axis servo drive (Compact Converter)
Rated Output Current 8 A
Protection Class IP20 (requires cabinet installation)
Cooling Method Built-in fan forced air cooling
Weight Approx. 3.8 kg
Dimensions Width 50mm * Height 220mm * Depth 215mm
Applicable Power Range Approx. 0.5-1.5 kW servo motors
Electrical Parameters
Input Power Three-phase 200-500 V AC (±10%)
Control Power 24 V DC (±20%)
Maximum Output Current 8 A
Switching Frequency Maximum 8 kHz
DC Bus Supports common DC bus, enabling multi-axis energy sharing and regenerative braking
Overload Capacity High overload capacity, suitable for frequent start-stop and dynamic loads
Model Code Analysis
ACS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-NW
ACS01 IndraDrive Cs Series (Domestic Version)
1E Hardware Version
W0008 Rated Output Current 8 A
A Control Unit Type (Basic)
03 Design Version
B Power Unit Configuration
ET Built-in Safety Torque Shutdown (STO)
EC Ethernet Communication (Multi-Ethernet)
NN No Additional I/O Expansion
NN No Safety Motion Module (S4/S5, etc.)
NN No Other Special Configuration
NW Firmware/Software Version Identifier
Core Functions and Interfaces
Communication Interface
  • Main Communication: Multi-Ethernet (Supports PROFINET, EtherNet/IP, Modbus TCP)
  • Optional: CANopen (configuration required)
Encoder Interface
Multi-encoder support including Hiperface, EnDat 2.1/2.2 (IndraDyn standard), BiSS, SSI, Resolver, TTL, and more
Safety Functions
  • Safe Torque Off (STO): Safety level PL d / SIL 2
  • Supports Safety Brake Control (SBC) (configuration required)
I/O and Operation
  • Standard digital I/O and analog interfaces
  • Built-in operation panel (4 keys + digital tube) for parameter setting and status monitoring
  • Supports separate firmware ordering and upgrades without hardware replacement
Environmental Specifications
Operating Temperature 0°C ～ +40°C
Storage Temperature -25°C ～ +70°C
Altitude ≤ 1000 m (higher altitudes require derating)
Installation Method Cabinet rail / Panel mounting requires adequate ventilation
Typical Applications
  • Packaging machinery, printing equipment
  • Material handling, assembly lines
  • Small robots, semiconductor equipment
  • General industrial automation single-axis precision control
