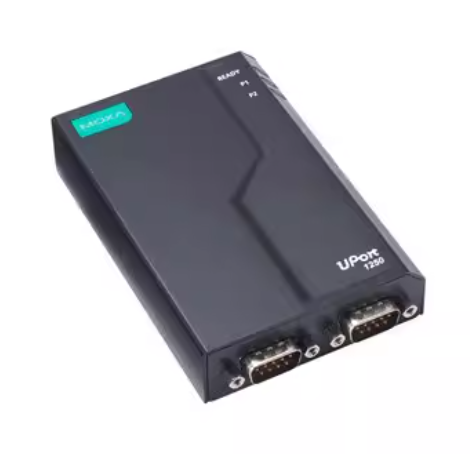

USB 2.0 Serial Adapter MOXA UPORT1250 2 Port RS-232/422/485 USB To Serial Converter Hi Speed USB 2.0
USB 2.0 Serial Adapter MOXA UPORT1250 2 Port RS-232/422/485 USB To Serial Converter Hi Speed USB 2.0
USB 2.0 Serial Adapter MOXA UPORT1250 2 Port RS-232/422/485 USB To Serial Converter Hi Speed USB 2.0
USB 2.0 Serial Adapter MOXA UPORT1250 2 Port RS-232/422/485 USB To Serial Converter Hi Speed USB 2.0
Specifications
Packaging Details :
Pieces
Mountingtype :
Panel-mounted, DIN rail, Wall-mounted
Certification :
CO
Function :
Provide electrical protection and control for power systems
Productname :
Protection and Control Components
Componenttypes :
Relays, Circuit Breakers, Sensors, Controllers
Environmentalprotection :
IP54 to IP67
Operating voltage :
Up to 36 kV
Relaytype :
Electromechanical, Solid-state, Digital
Currentrating :
Up to 6300 A
Standardscompliance :
IEEE, IEC, ANSI
Powersupply :
AC 110-240V, DC 24-48V
Responsetime :
Typically less than 10 ms
Operatingtemperaturerange :
-40°C to +70°C
Application :
Power generation, transmission, and distribution
Brand Name :
MOXA
Model Number :
UPORT1250
Place of Origin :
Taiwan
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20PCS 1WEEK
Delivery Time :
5-7work day
Communicationprotocol :
IEC 61850, Modbus, DNP3
Diagnosticsfeatures :
Self-test, Event recording, Fault analysis
Description
Product Specifications
Parameter Name Value
General Information
Product Model UPort 1250
Product Type 2-port RS-232/422/485 USB-to-Serial Converter
Manufacturer MOXA
Product Status Discontinued (Replaced by UPort 1250-G2)
Warranty Period 5 Years
Key Features Hi-Speed USB 2.0, 921.6 kbps max baudrate, 128-byte FIFO, H/W & S/W flow control, 15N high retention USB Type B connector
USB Interface
USB Standard USB 2.0 (Hi-Speed & Full-Speed) compliant
USB Speed 480 Mbps (Hi-Speed), 12 Mbps (Full-Speed)
USB Connector USB Type B (15N high retention)
Power Supply 5 VDC from USB bus
Input Current 360 mA @ 5 VDC
Serial Interface
Number of Ports 2
Serial Standards RS-232, RS-422, RS-485 (2-wire & 4-wire)
Serial Connectors DB9 male (per port)
Maximum Baudrate 50 bps to 921.6 kbps
FIFO Buffer 128-byte (per port)
Flow Control Hardware (RTS/CTS, DTR/DSR), Software (XON/XOFF)
RS-232 Signals TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND
RS-422 Signals TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485 4-wire Signals TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485 2-wire Signals Data+(B), Data-(A), GND
Electrical Protection
ESD Protection 15 KV (embedded)
Overvoltage Protection Not specified (Standard industrial protection)
Mechanical Characteristics
Housing Material Metal
Dimensions (W x H x D) 75.8 x 25.0 x 111.0 mm (2.98 x 0.98 x 4.37 in)
Weight 180 g (0.40 lb)
Mounting Options Desktop or DIN-rail (with optional bracket)
Environmental Conditions
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 75°C (-4°F to 167°F)
Relative Humidity 5% to 95% (non-condensing)
IP Rating IP20
Software & Drivers
Supported Operating Systems Windows (7/8/10/11, Server), Linux, macOS, WinCE
Driver Type Real COM (Windows), TTY (Linux/macOS)
Standards & Certifications
EMI Standards CISPR 32/EN 55032 Class B
EMS Standards EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-11 (Voltage Dips)
Safety Certifications UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1
Environmental Compliance RoHS Compliant
Additional Information
LED Indicators USB activity, TxD/RxD activity (per port)
Accessories Included Mini-DB9-female-to-terminal-block adapter (1130/1150), USB cable
Isolation None (Non-isolated model; Isolated version: UPort 1250I)
